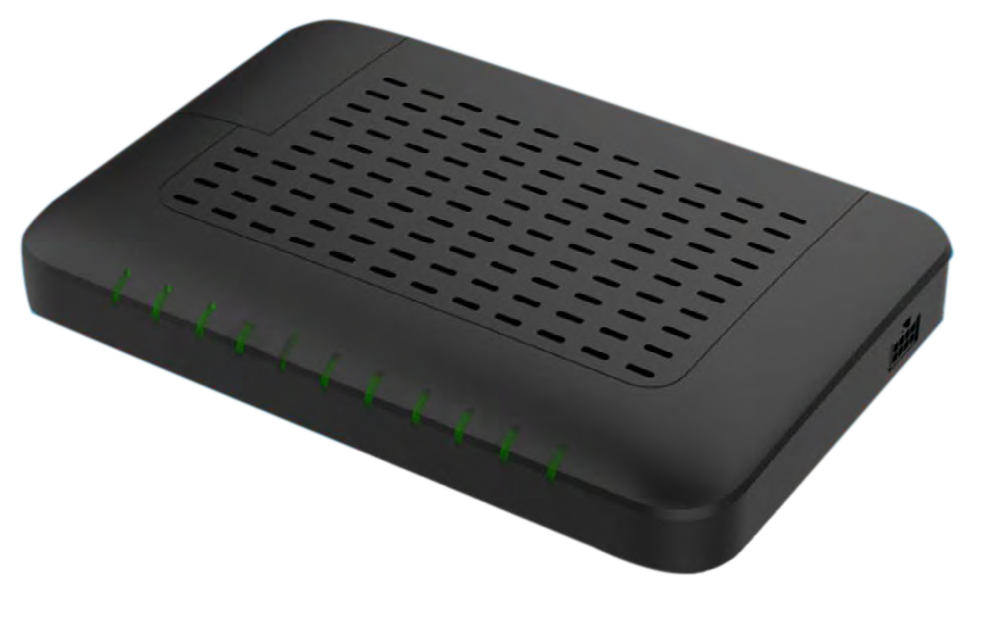

2434GN - GPON ONT
The next generation G-Series ONT enables subscribers to enjoy bandwidth-intensive multimedia services with DZS leading-edge GPON technology.
The DZS 2434GN is a next-generation, GPON compliant Optical Network Terminal (ONT) able to support service provider requirements for high-speed data and voice in a cost-effective design. The ONT is fully compliant with ITU-T G.984 GPON standard with integrated, Class B+ on-board optics supporting 1310nm and 1490nm wavelengths. The 2434GN offers data rates of 2.5Gbps downstream and 1.25Gbps upstream able to deliver access edge services and a full range of residential and business use cases required. With unique DZS’s software management features, subscribers can enjoy hyper-connected multimedia services much easier, faster, and more reliably than ever before.
The DZS 2434GN includes one SC/APC GPON interface, four 10/100/1000Base-T ports, and two FXS RJ11 voice ports. The ONT supports wire-speed L2 bridging and carrier-grade lifeline voice services using a DZS approved battery backup unit with battery status telemetry.
Key Features
- Supports 2.5Gbps/1.25Gbps (Downstream/Upstream) with integrated GPON WAN interface
- Four gigabit multi-rate 10/100/1000M Ethernet interfaces
- Two POTS interfaces compliant to SIP and MGPC telephony standards
- 8-pin Battery Backup interface with telemetry
Service Scenario
The GPON network consists of an Optical Line Termination (OLT) located at the Central Office, and a set of residential Single-Family Unit (SFU) and Multi-Dwelling Unit (MDU) locations with Optical Network Terminals (ONTs). Between them is the optical distribution network (ODN) comprised of fibers, passive optical splitters, and couplers. The 2434GN ONT supports 2.5G capable downlinks using the GPON standard. Services include High-Speed Internet (HIS), Packet Voice, IPTV, OTT video, and cloud-enabled services to multi-media devices.
Data Sheet
2434GN - GPON ONT - Residential Gateway
