2301 - GPON ONT

Fiber Access G-Series ONT enables subscribers to enjoy bandwidth-intensive multimedia services with DZS leading-edge GPON technology.

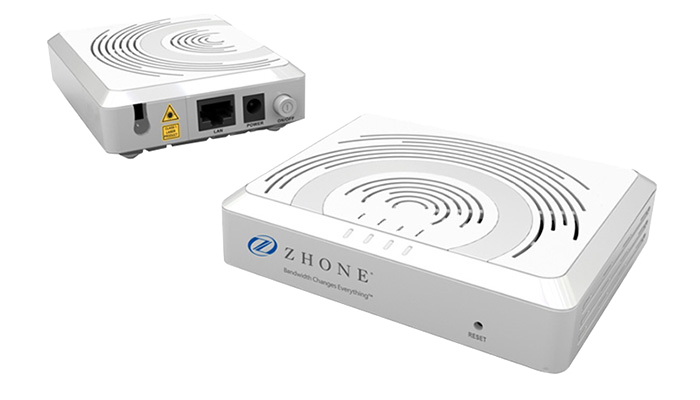

The DZS 2301 is an advanced, GPON compliant Optical Network Terminal (ONT) able to support service provider requirements for high-speed data and voice in a cost-effective design. The ONT is fully compliant with ITU-T G.984 GPON standard with integrated, Class B+ on-board optics supporting 1310nm and 1490nm wavelengths. 2301 offers data rates of 1.0Gbps downstream and 1.0Gbps upstream able to deliver access edge services and a full range of residential and business use cases required. With software management features, subscribers can enjoy hyper-connected multimedia services much easier, faster, and more reliably than ever before.

The DZS 2301 includes one SC/APC GPON interface and one 10/100/1000Base-T port. The ONT supports wire-speed L2 bridging at a line rate. An option fiber tray offers a convenient way to slack loop extra fiber and prevent subscribers from touching the optical interface.

Key Features

• Supports 1.0Gbps/1.0Gbps (Downstream/Upstream) with integrated GPON WAN interface
• One gigabit multi-rate 10/100/1000M Ethernet interface

Service Scenario

The GPON network consists of an Optical Line Termination (OLT) located at the Central Office, and a set of residential Single-Family Unit (SFU) and Multi-Dwelling Unit (MDU) locations with Optical Network Terminals
(ONTs). Between them is the optical distribution network (ODN) comprised of fibers, passive optical splitters, and couplers.

The 2301 ONT supports 1.0G capable downlinks using the GPON standard. Services include High-Speed Internet (HIS), Packet Voice, IPTV, OTT video, and cloud-enabled services to multi-media devices.

Data Sheet

2301 - GPON ONTs  - Residential Gateway
