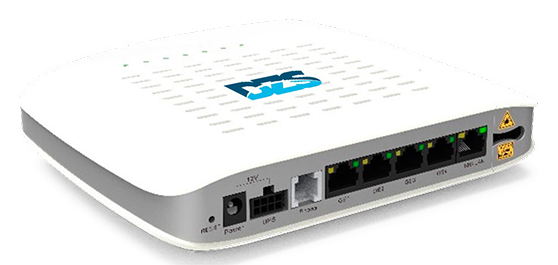

5225 - Indoor 10Gbit PON/AE ONT
Introducing the next generation of 10Gbit products designed for advanced triple-play deployments in home and business environments in a compact footprint. The SFP+-based uplink supports both symmetric 10/10 XGSPON and Active Ethernet technologies by simply swapping the optical transceiver. The 5225A PON/AE ONT provides four 10/100/1000 Base-T and one 100/1000/2.5G/5G/10GBase-T LAN ports, as well as, two FXS voice ports. All Ethernet LAN ports can be used to support any-port-any-service model or separated into different services allowing the configuration of dedicated ports for IP video and data. Unique VLANs may also be configured per user to ensure full isolation of each customer’s data traffic.
Key Features
- Standard ITU-T G.9807.1 XGSPON
- Standard IEEE 802.3 10G AE
- Triple-Play QoS
- VoIP with CLASS 5 Features
The supported industry-standard SIP VoIP signaling provides reliable voice services. DZS’ experience with packet voice ensures interoperability and support with a large number of soft switches and with the ability to tailor the VoIP solution by selecting from a list of over 30 countries. Flexible management means the 5225A ONT may be provisioned using the same intuitive and easy-to-navigate Web interface and CLI as the rest of the zNID family, as well as through standard OMCI, USP (Unified Service Provisioning), the DZS Network Management System (ZMS), or using a TR-069 compliant ACS. Software upgrades and configuration backups can be handled automatically by the ZMS using the CPE Manager feature.
Data Sheet
5225 - 10Gbit PON/AE ONT - Residential Gateway
