2428A1 - Wi-Fi 5 GPON and Active Ethernet ONTs




Carrier-grade 802.11ac G-Series ONT enables subscribers to enjoy multimedia services over wireless with DZS leading-edge GPON and AE technology.

The DZS 2428A1 is an advanced Optical Network Terminal (ONT) that supports GPON or Active Ethernet WAN interfaces with integrated Wi-Fi 5 802.11ac, able to support service provider requirements for high-speed data and video over wireless interfaces. The ONT with integrated Home Gateway features is fully compliant with ITU-T G.984 GPON standard with integrated, Class B+ on-board optics, or 1Gbps Active Ethernet. The 2428A1 is able to deliver access edge services and a full range of residential wireless use cases required, including whole-home wireless extensions using DZS MESH-2100 products. With unique DZS’s software management features, subscribers can enjoy hyper-connected multimedia services much easier, faster, and more reliably than ever before.

The DZS 2428A1 includes one SC/APC GPON or SC/UPC AE interface, four 10/100/1000Base-T ports, two FXS RJ11 voice ports, dual-band 2.4GHz 802.11n and 5GHz 802.11ac wireless, and one USB2.0 compliant port. The ONT supports wire-speed L2 bridging and L3 gateway features, with carrier-grade voice services with the option for DZS approved battery backup unit with battery status telemetry.

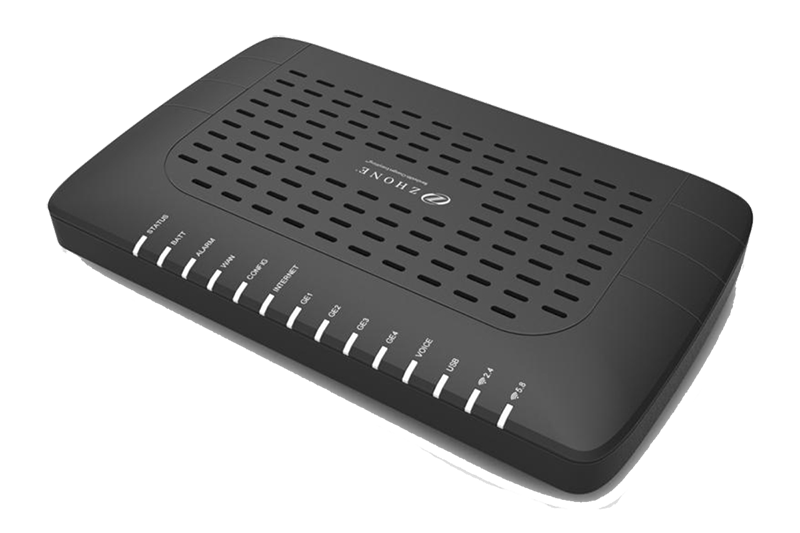

     Zhone -2428A1 - Wi-Fi 5 GPON and Active Ethernet ONTs



Key Features

  • Supports 2.5Gbps/1.25Gbps(Downstream / Upstream) with integrated GPON WAN interface
  • Supports 1Gbps/1Gbps (Downstream / Upstream) with integrated Active Ethernet WAN interface
  • Four gigabit multi-rate 10/100/1000M Ethernet interfaces
  • Two POTS interfaces compliant to SIP and MGPC telephony standards
  • Dual-band 2.4GHz 2x2 802.11n, 5GHz 3x3 802.11ac Carriergrade Wi-Fi 5 interfaces
  • USB 2.0 with support of 3G and LTE wireless WAN backup



Service Scenario

The GPON network consists of an Optical Line Termination (OLT) located at the Central Office, and a set of residential Single-Family Unit (SFU) and Multi-Dwelling Unit (MDU) locations with Optical Network Terminals (ONTs). Between them is the optical distribution network (ODN) comprised of fibers, passive optical splitters, and couplers. The Active Ethernet network consists of point-to-point fiber terminations from OLT to the SFU or MDU, with dedicated fiber termination to the ONT.

The 2428A1 ONT supports 2.5G capable downlinks using the GPON standard or 1G using AE. Services include High-Speed Internet (HIS), carrier-grade wireless, packet Voice, IPTV, OTT video, and cloud-enabled services to multi-media devices.




Data Sheet

2428A1 - Wi-Fi 5 GPON and Active Ethernet ONTs - Residential Gateway
