V1-08XC - Optical Line Terminal (OLT)




Enabling the hyper-connected world.

The V1-08XC New generation OLT for optical broadband service
A new generation XCelerate™ OLT with the flexibility to choose GPON, XGS-PON, or GPON+XGS-PON (Combo) for cost-effective 10Gig services.

The XGS-PON technology adds new features and functionality targeted at improving performance and interoperability and adds support for new applications, services, and deployment scenarios. Among these changes are improvements in data rate and reach performance, diagnostics, and stand-by mode, to name a few. The V1-08XC utilizes a point-to-multipoint Optical Distribution Network (ODN) and the XGS-PON technology with 10G Symmetric bandwidth to enable cost-effective, higher bandwidth, higher value FTTx services. Service providers can add new 10Gig PON-based services alongside GPON to offer choice and keep pace with growing bandwidth demands. Cost-effective 10Gig offers an opportunity for revenue growth in business and mobile xHaul applications beyond traditional residential applications with a common fiber network.

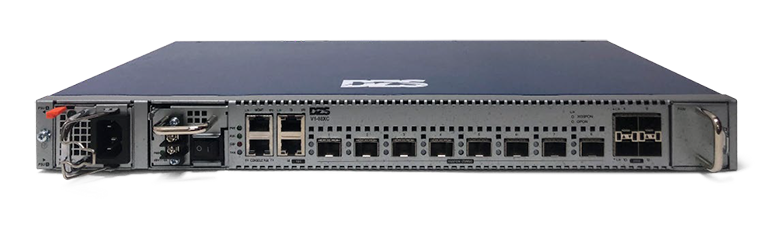

     Zhone - DZS - V1-08XC - OLT



Key Features

  • Compact 1U low profile
  • 394Gbps switching capacity
  • 8-port XGS-PON/GPON combo SFP+ interfaces
  • Fixed 4-port 25GE SFP 28 and
  • 2-port 1GE interfaces
  • XGS-PON ODN class N1/N2 compliant with ITU-T G.9807.1ay port



Extraordinary Capacity and Flexibility

The V1-08XC is comprised of combo 8-port XGS-PON+GPON interface for service interface and fixed 4-port 25GE interface and 2-port 1GE for uplink on the front panel. It offers a usable interface to make up diverse network services. Therefore, depending on customer requirements, it can be configured with several Ethernet configurations.

Made for High Performance and Reliability Requirements

The V1-08XC offers timing services, allowing for system clocking synchronization from the core of the network. It also provides 2 mounting slots for the dual power modules and 1 mounting slot for the fan on the front panel. PSU modules support 1:1 redundancy and load sharing, so it is possible to operate as non-stoppable. Security features include storm control for broadcast, multicast, and unknown unicast packets, out-band management, and Secure Shell (SSH) support.

Next-generation of ultra-fast XGS-PON

The V1-08XC offers the next generation of ultra-fast XGS-PON technology that can be used for a variety of new revenue-generating applications. Due to the coexistence of GPON equipment installed on the same network, the network can be improved efficiently. It is expected to help build business continuity systems such as telework and video conference that require triple-play services of video, data, and voice.



Key Service Attributes

  • Compact 1U Chassis with Extended Temperature
  • Eight XGS-PON/GPON combo interfaces
  • Four 25GE/10GE SFP28/SFP+ interfaces for Uplink
  • ONU bundle rate-limit in OLT
  • Traffic management provides QoS, traffic shaping
  • Transparent LAN services
  • IPTV multicast, IGMPv2, and IGMPv3 services
  • PPPoE Intermediate Agent




Data Sheet

V1-08XC - OLT
