MileGate 2510/2310 - Subracks of the Ethernet-based broadband access platform
for DSL, telephony, and Ethernet - Copper Access




Designed to provide legacy voice and NGN services in central offices, collocation centers, and street cabinets with a high number of subscribers.

The subracks MileGate 2310 and MileGate 2510 provide comprehensive multi-service capabilities in a compact chassis. With MileGate network operators are able to provide broadband services and legacy services via a single network element. These services are easy to manage and can easily be integrated into the operating procedures of network operators. MileGate can be deployed in outdoor cabinets to provide VDSL2 with vectoring, for example. With its comprehensive redundancy concept, MileGate guarantees maximum availability.

Ethernet and TDM
All line cards are connected to the core unit via the backplane. All subracks have two 1 Gbps connections and one TDM bus for every slot. MileGate 2310 and 2510 have two additional 10 Gbps connections. This way MileGate already today is designed for the requirements of high bandwidths that, for example, are provided in FTTH applications.

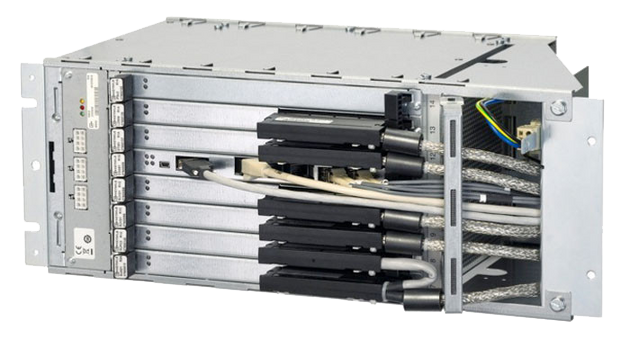

     Zhone - MileGate 2310 - DSLAM



Key Features

  • Ideal for FTTx architectures
  • Wide range of DSL interfaces incl. VDSL2 with vectoring
  • Active (P2P) and passive (GPON) optical interfaces
  • POTS/ISDN via SIP/H.248 or V.5x
  • Uplink via Ethernet, SDH, PDH
  • Up to 400 Gbps backplane capacity and 20 Gbps to every slot
  • High availability due to redundancy concept
  • Designed for indoor and outdoor deployment
  • All functions via one network management system





Services


Due to its unique combination of Ethernet and TDM bus, MileGate provides legacy and Ethernet services in a single network element. This way migration to this access technology is made simple and cost-effective. Active and passive (PON) optical interfaces, as well as comprehensive Ethernet-based DSL services (ADSL2plus, VDSL2, SHDSL), can be offered together with legacy services like POTS/ISDN (via SIP or H.248 media gateways or V5.x interface). In addition, MileGate provides a high number of data interfaces as well as gateways for the data exchange between Ethernet and TDM technology.

MileGate2310


The subrack offers 8 slots, of which 7 can be allocated with service line cards. It is designed for mid-sized access points. Up to 384 POTS, 448 ADSL2plus, or 288 VDSL2 customer ports, extended with vectoring, can be provided per subrack. It can be installed horizontal or upright as well as wall-mounted in equipment rooms in buildings or in street cabinets. 168 customers can be connected via optical fiber by active Ethernet.

MileGate 2510


The subrack offers 21 slots, 20 of which can be fitted with service line cards. It is designed for major access points, to connect a large number of subscribers with different services. With its high port density, up to 1,216 POTS, 1,280 ADSL2plus, 960 VDSL2 customer ports, extended with vectoring, can be provided. 480 customers can be connected via optical fiber by active Ethernet. ring deployments.




Data Sheet

MileGate 2310/2510 - DSLAM
