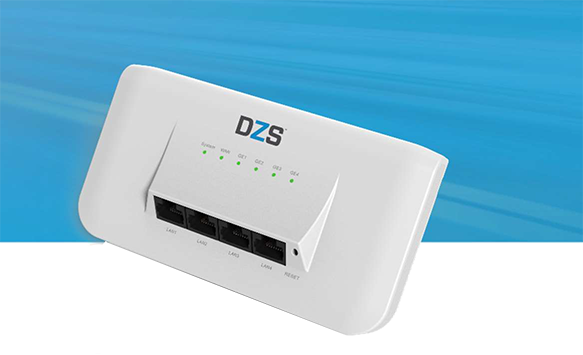

2804P2 - FiberLAN GPON ONT
Low-profile FiberLAN PoE ONT optimized for wall-plate mount installations using DZS leading-edge GPON technology.
The 2804P2 wall-plate ONT provides the ultimate efficient installation experience for Enterprise and Hospitality deployments requiring secure, zero-footprint wideband access. The 2804P2 ONT is compatible with single-gang electrical boxes, as well as with Modul 45 systems offering full RG functionality in a low-profile package that keeps power and fiber connections safely hidden within the wall or duct, preventing loss of service due to accidental disconnection, tampering, or theft. Rental housing (apartments, condos) and campus (dorms, temporary housing) deployments will similarly benefit from this robust and low-maintenance ONT.
The DZS 2804P2 includes one SC/APC GPON interface, four 10/100/1000Base-T ports, all with PoE++ capability, allowing for convenient connections to IP phones, PTZ cameras, wireless access points, and remote switches. Configurable per-port PoE limits help direct PoE power where it is needed up to 60W on any port and 120W per system. The 2804P2 is powered by a nominal 48-56VDC source from a centralized power distribution system that may also provide battery backup.
Key Features
- Supports 2.5Gbps/1.25Gbps (Downstream/Upstream) with integrated GPON WAN interface
- Four-gigabit multi-rate 10/100/1000M Ethernet interfaces
- 802.3af, at, and bt PoE++ compliant
- Up to 120W of PoE power per system
- Enterprise LAN features (802.1x, LLDP)
- Wall-plate style compatible with single-gang boxes and Modul45 systems
- No exposed fiber or power
Service Scenario
The FiberLAN GPON network consists of an Optical Line Termination (OLT) located in a central location, and a set of Enterprise-grade Optical Network Terminals (ONTs). All Ethernet LAN ports can be separated into different services allowing the configuration of dedicated ports for IP video and data for one or more business workgroups or departments. Unique VLANs may be configured per user to ensure full isolation of each department's data traffic.
With LLDP-MED support for voice VLAN advertisement, 802.1x authentication, and DZS Dynamic VLAN Mapping capability for handling complex sets of packet classification rules, operators can expertly manage traffic on each ONT LAN port to provide optimum customer experiences.
Data Sheet
2804P2 - FiberLAN GPON ONT
