V5808/V5816 - Optical Line Terminal (OLT)
Network operators increasingly want to provide high-performance broadband services to subscribers in rural areas. With the OLT network nodes V5808 and V5816, network operators can connect subscribers to their network cost-efficiently. Thanks to the small footprint the GPON system is easy to install also in case of limited space. The interfaces can be flexibly adapted to the network requirements. Interfaces

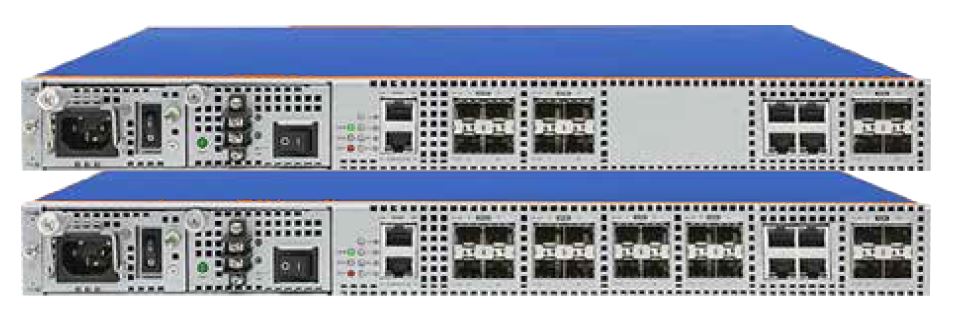

V5808 and V5816 are compact GPON OLTs, providing 8 respectively 16 GPON ports. They enable network operators to provide optical fiber-based broadband services also in low-density areas with a minimum of investment.
For the uplink, it offers four SFP+-based 10/1 GbE and four electrical GbE ports. All interfaces are accessible on the front of the robust 1 HU high network node. Both mini OLTs fulfill the high requirements of network operators regarding flexibility and availability. The redundant power supply protects the OLTs from failures in case of power breakdowns and ensures an uninterrupted operation.
The PON layer is terminated on the V5808 and V5816 and translated to an Ethernet uplink in order to be transported through an Ethernet/IP environment. Both OLTs are deliverable with AC or DC power supplies.
Key Features
- 8/16 GPON ports
- Uplink 4x 10/1 GbE (SFP+), 4x 1 GbE (electrical)
- Uplink/subscriber interfaces with 2.5 Gbps downstream and 1.25 Gbps upstream
- Switching capacity 128 Gbps (V5808) and 168 Gbps (V5816)
- Cost-effective in low-density areas
- Supports IGMP for IPTV applications
- Management support via the INAS element manager
- SNMPv2/v3 with remote monitoring and alarming
PON benefits
V5808 and V5816 offer cost-efficient FTTx services thanks to the point-to-multipoint concept realized with PON technology. The use of passive optical splitters in opposite to active switch systems makes passive optical networks a cost-efficient solution.
Network architecture
The mini GPON OLTs offer all needed adaption functions for providing a wide range of services like Ethernet, IP telephony, and IP-based video services. For IPTV applications the OLTs support IGMP. Adding or removing
ONUs from the splitter does not affect the PON service. Up to 128 termination points can be connected to each GPON port via the splitter. There are different deployment topologies for PON networks possible, which differentiate themselves from the place the optical fiber is terminated. Depending on the subscriber type and desired network topology, the operator may adopt FTTH, FTTB, or FTTC. In case of very high bandwidth requirements of a user, single users can be connected without a splitter. Thus, data rates of up to 2.5 Gbps downstream and 1.25 Gbps upstream can be realized.
Management
V5808 and V5816 are managed via the INAS element manager. In addition, SNMPv2/v3 for alarming and remote management is available.
Data Sheet
V5808/V58016 - OLT
