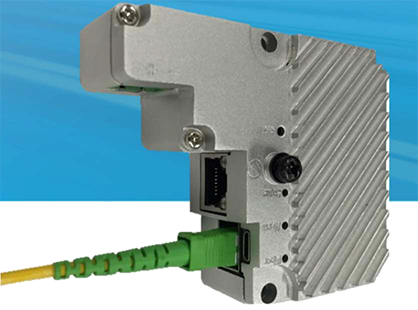

2101HP - FiberLAN Industrial GPON ONT
Plenum-rated FiberLAN PoE ONT optimized for electrical outlet boxes using DZS leading-edge GPON technology.
The 2101HP one-port Industrial GPON ONT is ideally suited for Optical LAN deployments in facilities that require geographically dispersed PoE-capable Ethernet ports. Typical sites include commercial buildings, sports stadiums, schools, universities, hospitals, airports, shopping malls, and more.
The types of devices that may be connected to the 2101HP ONTs include Wi-Fi Access Points, video surveillance cameras, badge access readers, door controller switches, IP TVs, VoIP phones, IP wall clocks, building control systems, kiosks, PoS devices, vending machines, PCs, printers, and many others.
The 2101HP ONT provides one 10/100/1000 Base-T LAN port supporting 802.3af, at, and bt (4-pair) PoE standards up to 60W. The ONTs unique design allows it to be installed in plenum spaces or in an enclosure as small as the standard 4″x4″ electrical outlet box, dramatically simplifying the network design and installation.
Key Features
- Supports 2.5Gbps/1.25Gbps (Downstream/Upstream) with integrated GPON WAN interface
- One gigabit multi-rate 10/100/1000M Ethernet interface
- 802.3af, at, and bt PoE++ compliant
- Up to 60W of PoE power per ONT
- Enterprise LAN features (802.1x, LLDP)\
- Industrial design with heat-sink can be installed within the electrical outlet box
Service Scenario
The FiberLAN GPON network consists of an Optical Line Termination (OLT) located in a central location, and a set of Enterprise-grade Optical Network Terminals (ONTs). By deploying multiple ONTs the individual Ethernet LAN ports can be separated into different services or dedicated ports for different business workgroups or departments. Unique VLANs may be configured per user to ensure full isolation of each department's data traffic.
With LLDP-MED support for voice VLAN advertisement, 802.1x authentication, and DZS’ Dynamic VLAN Mapping capability for handling complex sets of packet classification rules, operators can expertly manage traffic on each ONT LAN port to provide optimum customer experiences.
Data Sheet
2101HP - FiberLAN Industrial GPON ONT
