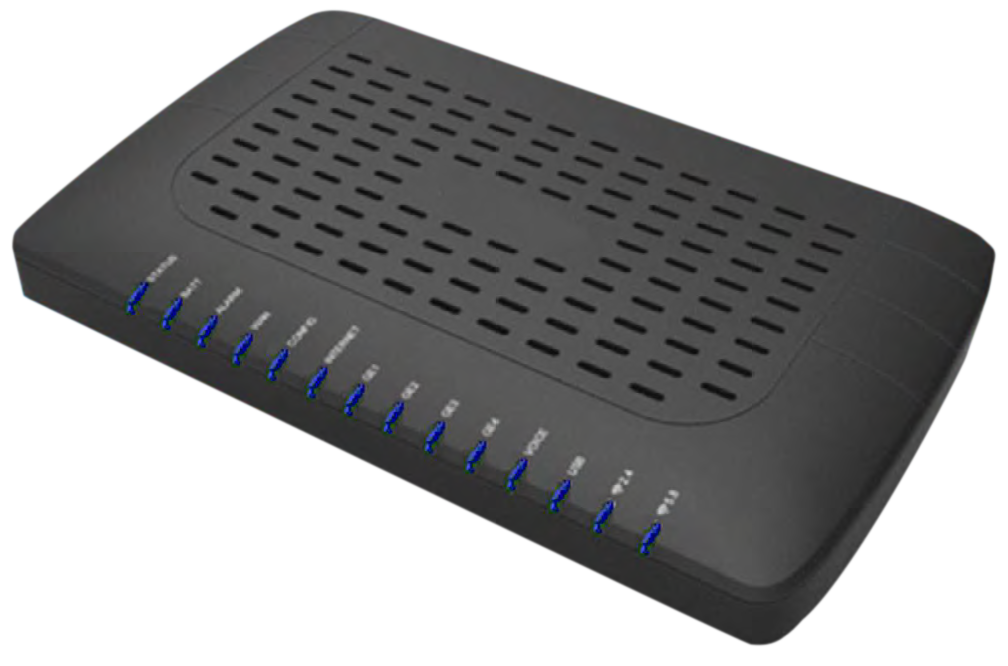

5228XG - Wi-Fi 6 XGS-PON ONT

The DZS 5228XG is a high-performance, XGS-PON compliant Optical Network Terminal (ONT) with integrated Wi-Fi 6 802.11ax, able to support service provider requirements for high-speed data and video over wireless interfaces. The ONT is fully compliant with ITU-T G.9807.1 XGS-PON standard with integrated, onboard optics supporting 1270nm and 1577nm wavelengths. The 5222XG offers symmetrical data rates of 10Gbps downstream and 10Gbps upstream able to deliver access edge services and the full range of residential wireless use cases, including whole-home wireless extensions using Wi-Fi Alliance EasyMesh standard. With unique DZS’s software management features, subscribers can enjoy hyper-connected multimedia services much faster, easier, and more reliably.

The DZS 5228XG includes one SC/APC XGS-PON interface, one 1G/2.5GBase-T port, four 10/100/1000MBase-T ports, two FXS RJ11 voice ports, dual-band 2.4GHz and 5GHz 802.11ax wireless, and one USB3.0 port. The ONT supports wire-speed L2 bridging and L3 gateway features, with carrier-grade voice services with the option for DZS approved battery backup unit with battery status telemetry.

Key Features

• Supports 10Gbps/10Gbps (Downstream/Upstream) with integrated XGS-PON WAN interface
• High-capacity multi-rate 1G/2.5G Gigabit Ethernet interface
• Four gigabit multi-rate 10/100/1000M Ethernet interfaces
• Two POTS interfaces compliant to SIP and MGPC telephony standards
• Dual-band 2.4GHz 3x3 802.11ax, 5GHz 4x4 802.11ax Carrier-grade Wi-Fi 6 interfaces
  USB 3.0 with support of 3G and LTE wireless WAN backup

Service Scenario
The XGS-PON network consists of an Optical Line Termination (OLT) located at the Central Office, and a set of residential Single-Family Unit (SFU) and Multi-Dwelling Unit (MDU) locations with Optical Network Terminals
(ONTs). Between them is the optical distribution network (ODN) comprised of fibers, passive optical splitters, and couplers.

The 5228XG ONT supports 10 Gigabit symmetrical data using the XGS-PON standard. Services include High-Speed Internet (HIS), carrier-grade wireless, packet Voice, IPTV, OTT video, and cloud-enabled services to multi-media devices.

Data Sheet

5228XG - XGS-PON ONT - Residential Gateway
