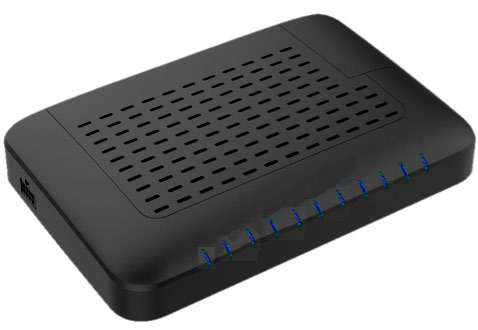

5222XG - XGS-PON ONT

The first generation of 10 Gigabit X-Series ONT enables subscribers to enjoy bandwidth-intensive multimedia services with leading-edge XGS-PON technology.

The DZS 5222XG is a high-performance, XGS-PON compliant Optical Network Terminal (ONT) able to support service provider requirements for high-speed data and voice in a cost-effective design. The ONT is fully compliant with ITU-T G.9807.1 XGS-PON standard with integrated, onboard optics supporting 1270nm and 1577nm wavelengths. The 5222XG offers symmetrical data rates of 10Gbps downstream and 10Gbps upstream able to deliver access edge services and a full range of residential and business use cases required. With unique DZS’s software management features, subscribers can enjoy hyper-connected multimedia services faster, easier, faster, and more reliably.

The DZS 5222XG includes one SC/APC XGS-PON interface, one 1/2.5/5/10GBase-T port, two 10/100/1000Base-T ports, and two FXS RJ11 voice ports. The ONT supports wire-speed L2 bridging and carrier-grade lifeline voice services using a DZS approved battery backup unit with battery status telemetry.

Key Features

• Supports 10Gbps/10Gbps (Downstream/Upstream) with integrated XGS-PON WAN interface
• High capacity multi-rate 1G/2.5G/5G/10G Ethernet interface
• Two gigabit multi-rate 10/100/1000M Ethernet interfaces
• Two POTS interfaces compliant to SIP and MGPC telephony standards
• Supports Dynamic Bandwidth Allocation (DBA) mechanism in compliance with ITU-T G.9807

Service Scenario

The XGS-PON network consists of an Optical Line Termination (OLT) located at the Central Office, and a set of residential Single-Family Units (SFU) and Multi-Dwelling Unit (MDU) locations with Optical Network Terminals (ONTs). Between them is the optical distribution network (ODN) comprised of fibers, passive optical splitters, and couplers.

The 5222XG ONT supports 10 Gigabit symmetrical data using the XGS-PON standard. Services include High-Speed Internet (HIS), Packet Voice, IPTV, OTT video, and cloud-enabled services to multi-media devices.

Data Sheet

5222XG - XGS-PON ONTs  - Residential Gateway
