Hubport

Switched USB Expansion Hubs

Hubport offers a simple solution for adding USB ports to a PC, server, or thin client

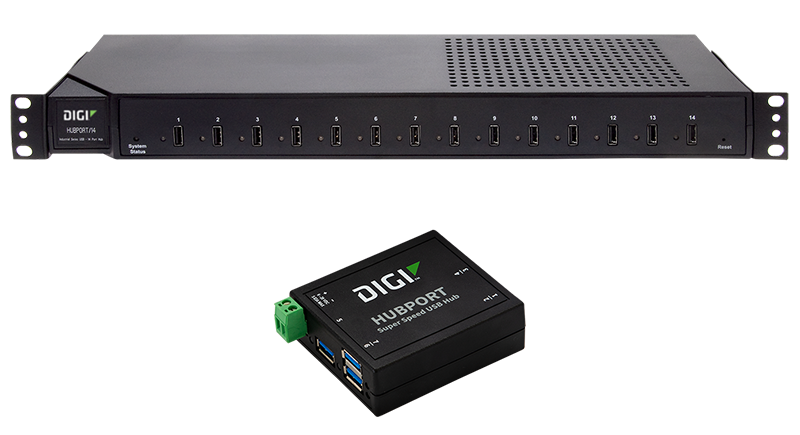

Digi Hubport - Expand USB Ports - Pulse Supply

Switched USB Expansion Hubs.

Hubport offers a simple solution for adding USB ports to a PC, server, or thin client for instant peripheral device connectivity. This external, user-installable solution plugs into a standard USB port to provide additional USB ports in a compact chassis. The switched USB architecture guarantees maximum performance on all ports simultaneously.

Models include AC or DC-powered hubs that accept power from standard AC wall plugs or a range of 5.5-30 VDC power sources, such as vehicle batteries. The Industrial grade compact chassis is small enough to fit nearly anywhere. With a high USB port count, the rack mount option is perfect for data center applications.

Feature-rich design, extensive operating system support, and reliable performance make Hubport ideal for mission-critical environments. Applications include connecting devices to a hub powered by a car or truck battery for mobile applications; providing multiport USB connectivity in a kiosk or other compact environments; and connecting USB peripheral devices at an office workstation.

.

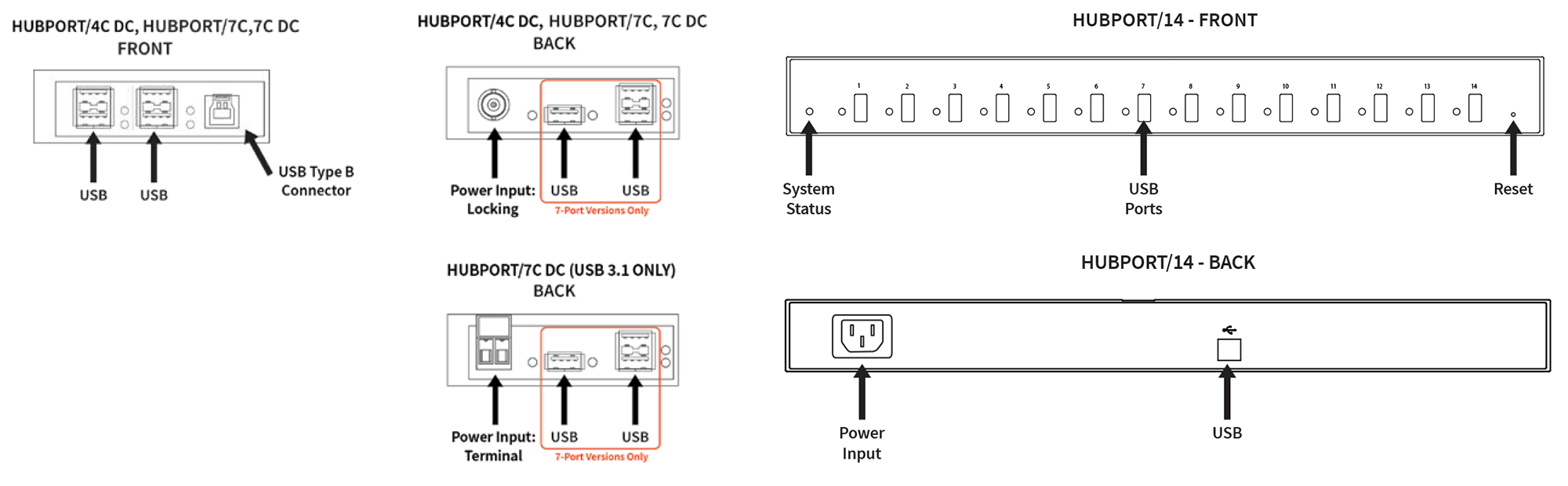

Digi Hubport - Indistrial USB Hub and Expansion - Pulse Supply







Key Features



  • Industrial USB 2.0 or 3.1 hubs for instant USB expansion
  • Compact chassis with 4 or 7 port options
  • Rack-mountable 14-port USB 2.0 model
  • AC models for indoor applications
  • Variable range DC models for outdoor/mobile applications
  • Switched USB ensures maximum performance on all ports
  • Locking or Terminal power connector on compact models

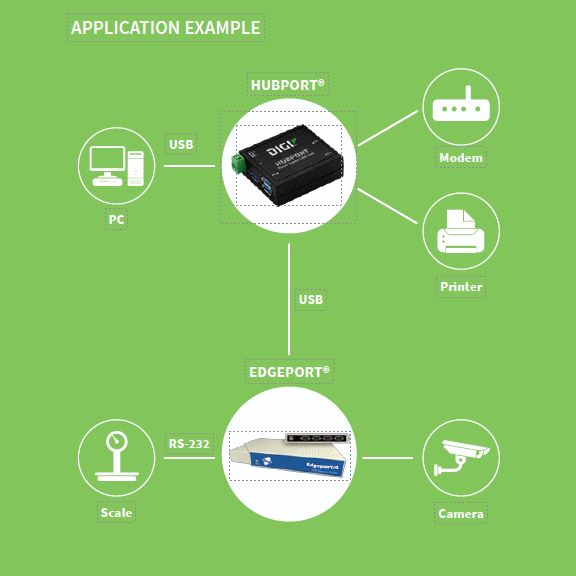

How it Works



Digi Hubport - USB Hub - Cellular Router





Digi Hubport Applications

  • Anywhere USB ports needed to be expanded and require industrial grade





Product Specifications



Specifications Hubport Compact USB 3.1® Hubport Compact USB 2.0® Hubport Rack®
USB Features
Ports 7 USB 3.1 Type A 4 or 7 USB 2.0 Type A 14 USB 2.0 Type A
Data Rate 5 Gbps 480 Mbps; Multi-TT switched USB architecture guarantees a full 12 Mbps simultaneously on all downstream ports, even if a high-speed 480 Mbps transfer is active
General Features
Power 500 mA downstream power available per port
Operating Systems Linux®*, Windows Server 2016, Windows 10®, Windows Server® 2012, Windows 8®, Windows® 7, Windows Vista®, Windows Server® 2008, Windows XP®, Windows® XP Embedded, Windows NT® 4.0**, Windows NT Embedded**, Windows CE, Windows Server® 2003, Windows 2000
LEDS 1 System status LED
7 Port Status LEDs; Yellow=Full/High speed, Blue=Super Speed, Off = Port not in operation
1 System status LED
4 or 7 Port Status LEDs; Green=Port operational, Off = Port not in operation
1 System Status LED
14 Port Status LEDs; Green=Port operational, Blinking Green=Port needs attention, Off = Port not in operation
Dimenstions (L X W X H) & Weight 2.61 in x 3.00 in x 1.00 in (6.63 cm x 7.62 cm x 2.54 cm); 6.20 oz (175.80 g) 2.61 in x 3.00 in x 1.00 in (6.63 cm x 7.62 cm x 2.54 cm); 6.20 oz (175.80 g) 4.97 in x 17.00 in x 1.74 in (12.62 cm x 43.18 cm x 4.42 cm); 35.00 oz (1134 g)
Other No additional IRQ or memory address requirements; Hot-swappable; 14 port is 1U Rack-Mountable (mounting ears included); Plug and Play; USB ports are backwards compatible to USB 2.0, 1.1 and 1.0
Power Requirements
Power Input (AC Models) N/A Ships with plug-mounted 120-230VAC 50-60 Hz at 5VDC @ 3Amps max Single 120-230 VAC 50/60 Hz power input IEC 60320 inlet. Max power 40W
Power Input (DC Models) Variable power DC products are 6V to 28V Max power of 35W (Terminal Block connector) Ships with plug-mounted 120-230VAC 50-60 Hz at 5VDC @ 3Amps max Single 120-230 VAC 50/60 Hz power input IEC 60320 inlet. Max power 40W
Environmental
Operating Temperature -40°C to +70°C (-40°F to 158°F) (Industrial) Hubport/7c (AC model) 0°C to 55°C or Hubport/4c DC and Hubport/7c DC -40°C to +70°C 0°C to 55°C (32°F to 131°F)
Relative Humidity 0% to 95% (non-condensing)
Regulatory Approvals
Safety EN60950, UL 1950, CSA 2.2 No. 950, IEC 950
Emissions/Immunity CE, FCC Part 15 Class B, EN55022 Class B, EN55024




digi hubport - sold by Pulse Supply



DATASHEETS


Data Sheet:  Digi Hubport - Industrial USB Expansion
