Digi One SP IA

Entry Level Serial-to-Ethernet Connectivity

Switch Selectable Expansion for Asynchronous Connectivity in a Compact Case

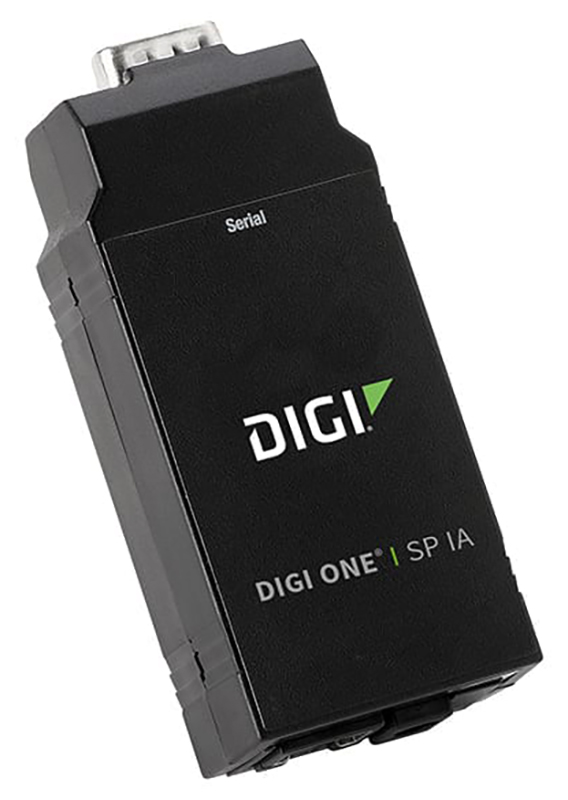

Digi One SP IA - Entry Level - Compact Serial Server - Pulse Supply

The Digi One SP IA is an entry-level Switch Selectable Expansion device for Asynchronous Connectivity in a compact Case.

Digi One SP IA is a high-performance serial server providing entry-level serial-to-Ethernet connectivity for virtually any serial device. It features a 9-30 VDC power input with a bare-wire “pigtail” for a direct connection, includes a DIN rail and wall mount kit, and is one of the smallest solutions available, making it ideal for industrial applications.

Digi One SP IA device server supports most IA protocols through TCP/UDP connections, serial bridging or COM port redirection using Digi’s patented RealPort® software. RealPort enables existing applications to communicate, without modification, with serial devices over the Ethernet as if they were communicating over a serial cable. Additionally, Digi One SP IA features modem emulation, allowing equipment designed for modem access to communicate transparently across the Ethernet.

Digi One SP IA is easy to install locally or remotely. The IP address can be configured using DHCP, ARP-Ping, or Setup, an application included with the installation CD that automatically detects all Digi One serial server devices on the network. Users can auto-connect a serial device to a networked server using raw, Telnet, or rlogin. Advanced functions can be configured into an application using the web interface.

.



Digi One SP IA -  Entry Level - Compact Serial Server - Pulse Supply







Key Features



  • Serial-to-Ethernet for industrial automation
  • Device server with DIN rail and wall mount kits
  • 1 switch selectable RS-232/422/485 serial port
  • TCP/UDP Socket Services for broad device connectivity

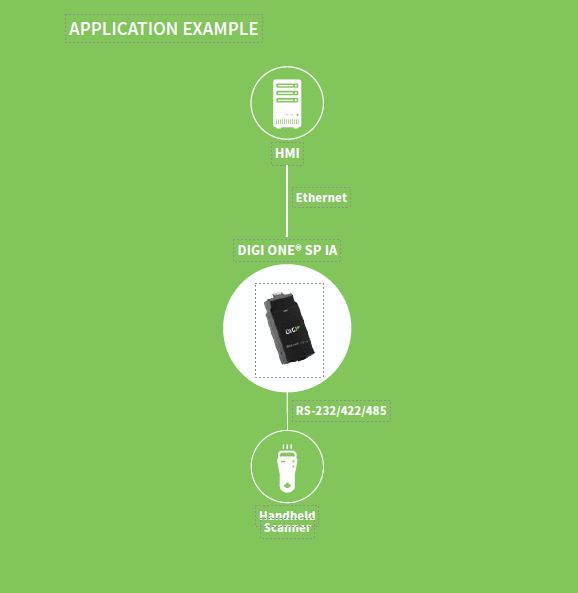

How it Works



Digi One SP IA - Entry Level - Compact Serial Server - Diagram





Digi One SP IA Applications

  • Components for Medical Devices
  • Manufacturing Automation
  • C&I Metering
  • Demand Response
  • Digital Oil Field
  • Renewable Energy
  • Smart Grid
  • Tank Monitoring
  • Water & Wastewater





Product Specifications





Specifications Digi One SP IA
Features
Management HTTP configuration
Protocols TCP/UDP Socket Services, UDP Multicast, Telnet, Reverse Telnet, RFC2217, DHCP/RARP/ARP-Ping for IP address assignment
Software Patented RealPort® for COM/TTY ports
Operating Systems Microsoft Windows® 7, 8, 8.1, 10 and Windows Server® 2012, 2016, 2019; and Linux®
Note: TCP/UDP socket services are operating system independent
Status LEDs Link, Power
Dimensions
(L x W x D)
9.40 cm x 4.30 cm x 2.30 cm (3.70 in x 1.72 in x 0.93 in)
Weight 65.00 g (2.29 oz)
Other Full modem and hardware flow control, Modem emulation, DIN rail and wall mount kit included
Interfaces
Serial Ports RS-232/422/485 (switch selectable)
Serial Connector DB-9M
Serial Throughput Up to 230 Kbps
Ethernet Physical Layer 10/100Base-T
Power Requirements
Power Input 9-30 VDC @ 0.5 Amps max
Power Supply 12 VDC/1.5A max out; 100-240 VAC 50-60 Hz in (wall mount)
Power Consumption Typical: 4 W; Max: 6 W
Product Surge Protection (ESD) 4 kV burst (EFT) per EN61000-4-4, 2 kV surge transient per EN61000-4-5 when used with supplied power adapter
Power Connector Bare-wire "pigtail" power connector
Environmental
Operating Temperature 10º C to 45º C (50º F to 113º F)
Relative Humidity 5% to 90% (non-condensing)
Regulatory Approvals
Safety UL 60950, EN60950, CAN/CSA C22.2 No.60950
Emissions/Immunity FCC Part 15 Subpart B (Class A), EN55024, EN55022 (Class A), EN61000-3-2,3









DATASHEETS


Data Sheet:  Digi One SP IA
