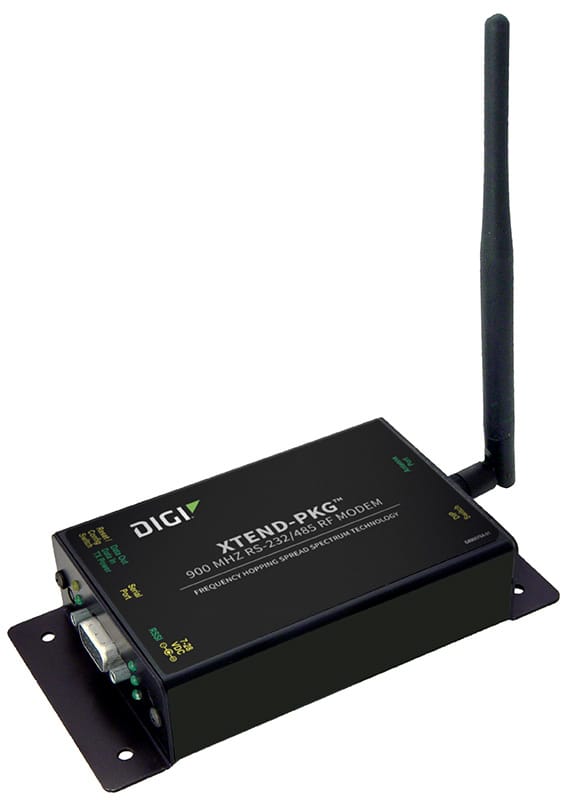

XTend® 900MHz RF Modems
Standalone Radio Modems
Serial Cable Extension over Radio Frequency Modem
Extend Serial Cables over the air.
Adjustable power output from 100 mW to 1 W; up to 4 W EIRP (with 6 dB antenna) Digi's XTend-PKG RF modems provide everything you need for out-of-the-box serial cable replacement, enabling quick and inexpensive wireless connectivity of electronic devices across a broad range of applications. Simply feed data into one modem and the data is transported to the other end of a long-range wireless link. Data security is provided by 256-bit AES encryption (128-bit AES is available outside of North America). If more advanced functionality is needed, the modems support an extensive set of AT and binary commands.
Available in multiple interface options, including RS-232/422/485 and USB, XTend modems are ideally suited for remote monitoring, building automation/security, industrial automation/SCADA, fleet management/asset tracking and sensor data capture.
Key Features
- Outdoor line-of-sight range up to 40 miles* (with high gain antenna)
- Outstanding receiver sensitivity (-110 dBm @ 9600 bps)
- Adjustable power output from 100 mW to 1 W; up to 4 W EIRP (with 6 dB antenna)
- Low power consumption for power-sensitive applications
- Pin, serial port, and cyclic sleep modes are available
- Streaming, acknowledged, and multi-transmit modes supported
- Easy out-of-the-box operation — no configuration necessary
- Durable industrial grade enclosure

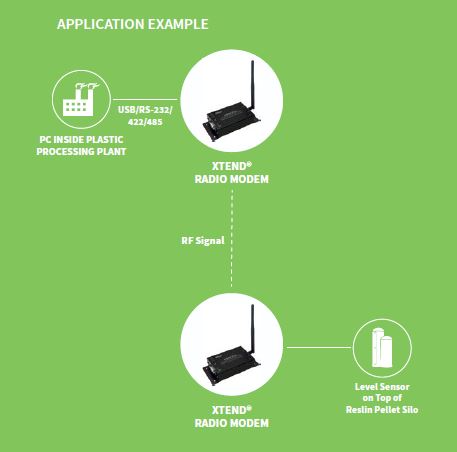

How it Works
Digi Connect Sensor+ Series Applications
- Manufacturing Automation
- Any Serial Cable Extension
Product Specifications
| Specifications | XTend®-PKG-R | XTend®-PKG-U |
| PERFORMANCE | ||
| INDOOR/URBAN RANGE (W/ 2.1 DB DIPOLE ANTENNA)* | Up to 1000 feet (305 m) | |
| OUTDOOR RF LINE-OF-SIGHT RANGE (W/ 2.1 DB DIPOLE ANTENNA)* | Up to 9 miles (14 km) | |
| OUTDOOR RF LINE-OF-SIGHT RANGE (W/ HIGH-GAIN ANTENNA)* | Up to 40 miles (64 km) | |
| TRANSMIT POWER OUTPUT (SOFTWARE SELECTABLE) | 100 mW - 1 W (20 - 30 dBm) | |
| INTERFACE DATA RATE | 10 - 230,400 bps (including non-standard baud rates) | |
| RF DATA RATE | 10 Kbps to 125 Kbps | |
| RECEIVER SENSITIVITY | -110 dBm (@9,600 bps throughput data rate), -100 dBm (@115,200 bps) | |
| POWER REQUIREMENTS | ||
| SUPPLY VOLTAGE | 7 - 28V | 7 - 28V |
| RECEIVE CURRENT | 110 mA | 100 mA (Self Power) |
| TRANSMIT CURRENT | Up to 580 mA | 888 - 480 mA |
| PIN SLEEP POWER-DOWN | 18 mA | 17 mA |
| IDLE CURRENT (VARIOUS CYCLIC SLEEP INTERVALS) | 19 - 39 mA | 21 - 35 mA (Self Power) |
| SERIAL PORT SLEEP POWER-DOWN | 45mA | 45mA |
| GENERAL | ||

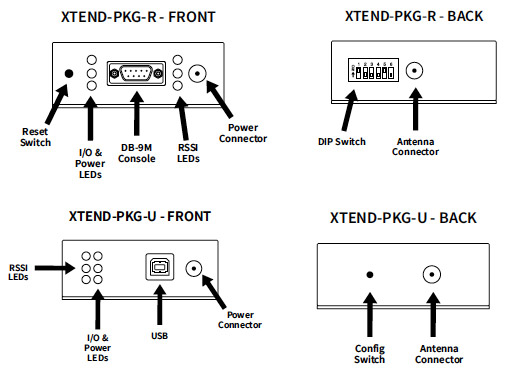

| CONNECTION OPTIONS | RS-232/422/485, DB-9 | USB |
| DIMENSIONS (L X W X H) | 2.75 in x 5.50 in x 1.13 in (6.99 cm x 13.97 cm x 2.86 cm) |
2.75 in x 5.50 in x 1.13 in (6.99 cm x 13.97 cm x 2.86 cm) |
| WEIGHT | 7.10 oz (200 g) | 7.10 oz (200 g) |
| OPERATING TEMPERATURE | -40° C to 85° C (industrial) | 0° C to 70° C (commercial) |
| ANTENNA OPTIONS | RPSMA (Reverse Polarity SMA) | RPSMA (Reverse Polarity SMA) |
| IMPEDANCE | 50 ohms unbalanced | 50 ohms unbalanced |
| NETWORKING & SECURITY | ||
| OPERATING FREQUENCY | ISM 902 - 928 MHz | |
| SPREAD SPECTRUM | FHSS (Frequency Hopping Spread Spectrum) | |
| MODULATION | FSK (Frequency Shift Keying) | |
| SUPPORTED NETWORK TOPOLOGIES | Peer-to-Peer (no master/slave dependencies), Point-to-Point, Point-to-Multipoint | |
| CHANNEL CAPACITY | 10 hop sequences share 50 frequencies | |
| ENCRYPTION | 256-bit AES Encryption (AES algorithm meets Federal Information Processing Standard-197 (FIPS-197)) | |
| AGENCY APPROVALS | ||
| FCC PART 15.247 | MCQ-XBPSX | |
| INDUSTRY CANADA (IC) | 1846A-XBPSX | |
| AUSTRALIA | RCM | |
*Range figure estimates are based on free-air terrain with limited sources of interference. The actual range will vary based on transmitting power, the orientation of transmitter and receiver, the height of transmitting antenna, the height of receiving antenna, weather conditions, interference sources in the area, and terrain between receiver and transmitter, including indoor and outdoor structures such as walls, trees, buildings, hills, and mountains.
DATASHEETS
Data Sheet: XTend 900MHz RF Modems
