Digi XBee Industrial Gateway
Programmable IoT gateway
Digi XBee-enabled devices to remote applications over cellular and Ethernet
Programmable IoT gateway connects Digi XBee-enabled devices to remote applications over cellular and Ethernet.

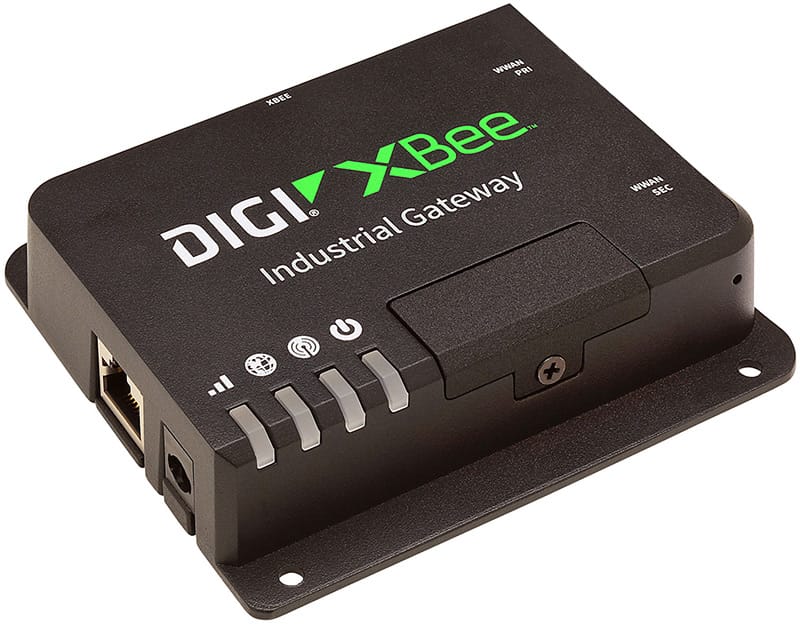

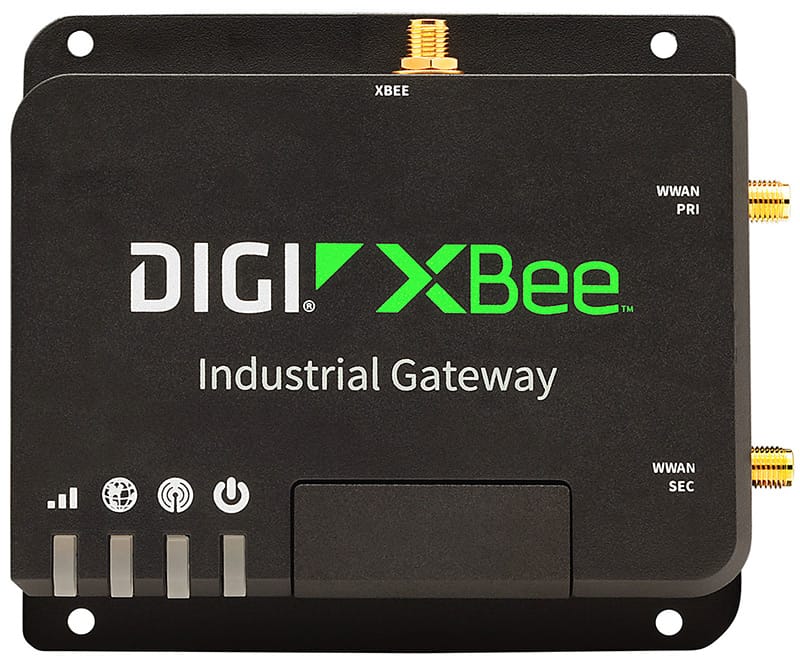

Digi XBee® Industrial Gateway is a rugged Digi XBee to IP solution. Ideal for any environment, the gateway has an extended temperature range and rugged enclosure.
Digi XBee Industrial Gateway features scalable remote configuration and management of Digi XBee networks. By default, all Digi XBee data sent to the gateway is automatically available to online applications via Digi Remote Manager®. With a simple, open-source Python development environment, this gateway also enables custom applications to run locally while interfacing across existing Ethernet or cellular networks for WAN connectivity to cloud-based applications.
Gain critical insights into your deployed devices and manage your network with Digi RM — the command center for your deployment. Digi RM is a cloud-based solution that facilitates easy setup, mass configuration, maintenance, and support for hundreds or even thousands of remote Digi devices. Digi RM lets you evaluate, update and configure your Digi enterprise products — and the health of your network — at scale after deployment.
.
Key Features
- Open-source Python environment for custom application development on the gateway
- Out-of-box integration with Digi Remote Manager® enables remote connectivity, configuration, and management of Digi XBee networks
- ZigBee enabled for connection to local wireless devices
- Cellular and Ethernet WAN options for flexible broadband connectivity
- Can be deployed in any environment due to industrial temp range and rugged enclosure

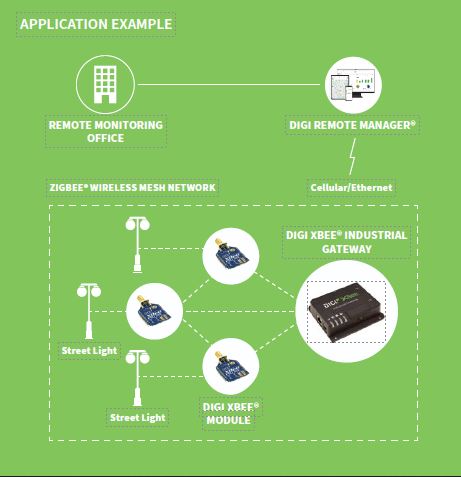

How it Works
XBee Industrial Gateway Applications
- Oil and gas
- Water/wastewater
- Solar
- Agriculture
- Other industrial applications.
Product Specifications
| Specifications | Digi XBee® Industrial Gateway | Digi XBee® Industrial Cellular Gateway |
| GENERAL | ||
| MANAGEMENT | Secure enterprise management via Digi Remote Manager® | |
| PROTOCOLS | UDP/TCP, DHCP | |
| LEDS | Cellular signal strength, network (LAN/WAN), Zigbee (wireless LAN), power | |
| SECURITY | TLS 1.2, cellular network security | |
| WWAN | ||
| 3G HSPA+, BANDS | N/A | B5(850), B8(900), B2(1900), B1(2100), B4(AWS) |
| LTE CATEGORY 1 | N/A | Verizon: bands 2, 4, 13 AT&T, T-Mobile: B2(1900), B4(AWS1700), B5(850), B12/B12(700) |
| ANTENNA CONNECTORS | N/A | HSPA+ version: 1 x 50 Ω SMA (center pin: female); LTE version: 2 x 50 Ω SMA (center pin: female) |
| SIM SLOTS | N/A | 2 x 2FF SIM slots; second SIM slot reserved for future use |
| SIM SECURITY | N/A | Screw-down SIM cover |
| SOFTWARE & MANAGEMENT | ||
| PYTHON | 2.7.1 | |
| MEMORY FREE SPACE | 20 MB RAM and 20 MB Flash for Python applications | |
| XBEE GATEWAY APPLICATION | Wireless LAN data sent to the gateway is automatically available to online applications via Digi Remote Manager | |
| ZIGBEE | ||
| ZIGBEE STACK | ZigBee Standard and ZigBee PRO versions are available | |
| ZIGBEE MODULES SUPPORTED | XBee S1, XBee S2, XBee 3 | |
| ZIGBEE | Standard: Transmit power 6.3 mW (+8 dBm); Receiver sensitivity: -102 dBm PRO: Transmit Power 63mW (18dBm): Receiver sensitivity: -102dBm |
|
| ZIGBEE ANTENNA | 1 x 50 Ω SMA (center pin: female) | |
| ETHERNET | ||
| PORTS | 1 RJ-45 port | |
| PHYSICAL LAYER | 10/100 Base-T | |
| DATA RATE | 10/100 Mbps (auto-sensing) | |
| MODE | Full or half-duplex (auto-sensing) | |
| INTERFACE | Auto MDI/MDIX | |
| ROUTING | Ethernet port designed for configuration and WAN backhaul | |
| PHYSICAL | ||
| DIMENSIONS (L X W X H) | 7.62 cm x 10.16 cm x 2.54 cm (3 in x 4 in x 1 in) | |
| WEIGHT | .22 kg (0.5 lb) | |
| ENCLOSURE MATERIAL/RATING | Industrial (metal) / IP30 | |
| POWER REQUIREMENTS | ||
| POWER INPUT | 5 VDC +/- 5%; Digi approved power supply must be used | |
| POWER SUPPLY | See accessory options | |
| POWER CONSUMPTION | Typical 1.2 W, Max 2.5 W | Typical 3.5 W; Max 11 W |
| ENVIRONMENTAL | ||
| OPERATING TEMPERATURE | -30° C to 70° C (-22° F to 158° F) | -30° C to 70° C (-22° F to 158° F) Reduced performance above 60° C (140° F) |
| RELATIVE HUMIDITY | 5% to 95% (non-condensing) | |
| APPROVALS | ||
| GSM/UMTS | PTCRB | |
| CELLULAR CARRIERS | Verizon, AT&T, certified by most major international carriers | |
| SAFETY | IEC 60950-1:2005; EN 60950-1:2006; CSA C22.22 No. 60950-1 | |
| EMISSIONS/IMMUNITY | FCC Part 15b, Industry Canada (IC), CE Mark | |
| WARRANTY | ||
| PRODUCT WARRANTY | 3-year* | |
DATASHEETS
Data Sheet: Digi XBee Industrial Gateway
