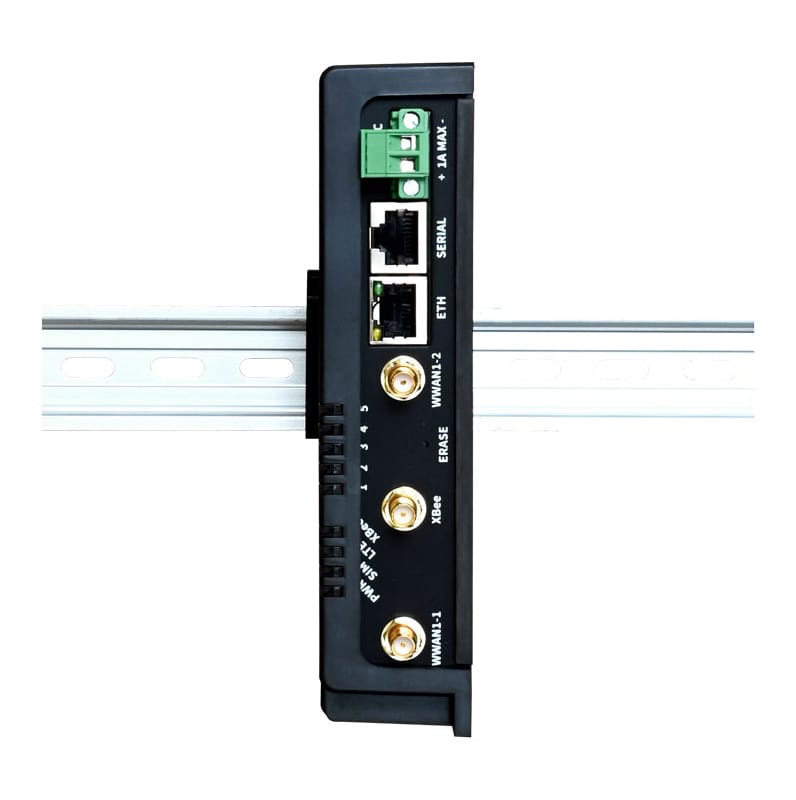

IX15 IoT Gateway and Cellular Router
Programmable IoT gateway
Digi XBee-enabled devices to remote applications over cellular and Ethernet
Programmable IoT gateway connects Digi XBee-enabled devices to remote applications over cellular and Ethernet.
The versatile Digi IX15 device functions as both gateway and router for customers seeking lower-cost, quicker-to-market alternatives to chip-down DIY designs for networking operations. Digi IX15 is an industrial-grade IoT gateway that connects Digi XBee® modules to cloud applications over cellular or Ethernet, providing the easiest path to Internet connectivity for the Digi XBee Ecosystem of hardware, software, services, and award-winning tools.
With certification for Class 1 Division 2 deployment and rugged enclosure, Digi IX15 is ideal for the harsh environments found in oil and gas, water/wastewater, solar, agriculture, and other industrial applications. For developers needing a highly secure, common platform to cut costs and time-to-market, Digi IX15 reduces risk and drives project efficiencies.
The Digi IX15 IoT gateway includes a simple, open-source Python development environment that enables custom applications to perform edge computing locally while providing the most optimal, resilient connectivity between your XBee network and cloud-based applications.
Gain critical insights into your deployed devices and manage your network with Digi Remote Manager (Digi RM) — the command center for your deployment. Digi RM is a cloud-based solution that facilitates easy setup, mass configuration, maintenance, and visibility into the health of your network, whether you deploy dozens or thousands of devices.
In the event of an interruption to your primary network connection, Digi RM also provides secure terminal access for out-of-band management of edge devices via serial port and command-line interface.
Key Features
- Digi XBee® (Zigbee®, DigiMesh®, 802.15.4), Bluetooth® 5.0 and RS-232/485 for connection to local devices
- Open source Python environment for custom application development
- LTE Cat 4 cellular and 10/100 Ethernet WAN connectivity
- Digi Remote Manager® platform for easy setup, mass configuration/firmware updates, remote device management, and out-of-band management
- Full-featured industrial cellular routing platform
- Redundant connectivity with dual SIMs and Digi SureLink®
- Built-in Digi TrustFence® for device security, device identity, and data privacy

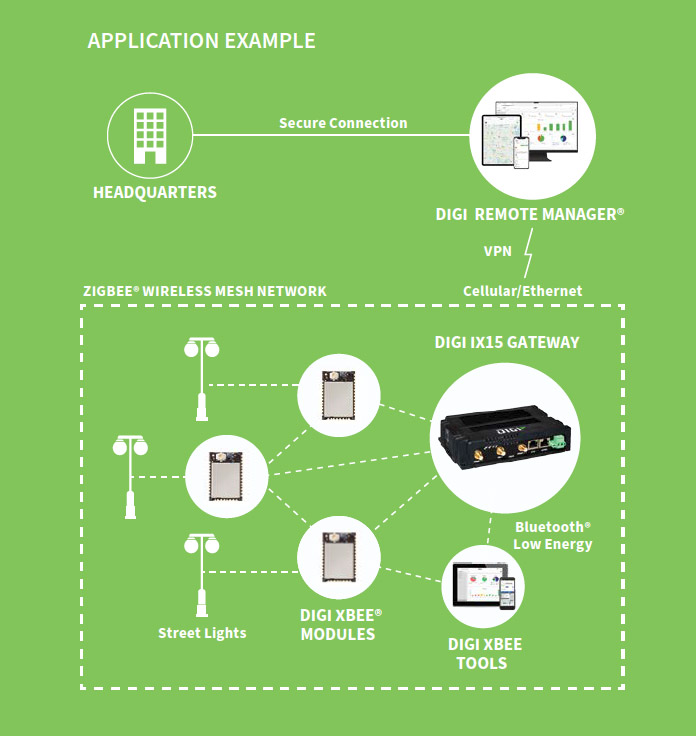

How it Works
IX15 IoT Gateway and Cellular Router Applications
- Oil and gas
- Water/wastewater
- Solar
- Agriculture
- Other industrial applications.
Product Specifications
| SPECIFICATIONS | Digi IX15 |
| DIGI XBEE® | |
| XBEE MODULE | Standard: Digi XBee® 3 Zigbee® 3.0 MMT (XB3-24Z8UM-J) PRO: Digi XBee® 3 PRO Zigbee® 3.0 MMT (XB3-24Z8UM) |
| ZIGBEE STACK | Zigbee® Standard and Zigbee® PRO versions are available |
| ZIGBEE TRANSMIT POWER | Standard: 6.3 mW (8 dBm); PRO: 63 mW (18 dBm) |
| ZIGBEE RECEIVER SENSITIVITY | -102 dBm |
| BLUETOOTH® VERSION | Supports BLE 4.2 and is capable of interoperating with BLE 5.0 devices that support 1M PHY. Hardware is software upgradable to 5.0 but not yet enabled except payload extensions (future release). |
| XBEE CONNECTOR | (1) 50 Ω RP-SMA (center pin: male) |
| CELLULAR | |
| CERTIFICATIONS | Visit www.digi.com/resources/certifications for latest certifications |
| BANDS | LTE Cat 4: B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28, B38, B39, B40, B41 3G: B1, B2, B4, B5, B6, B8, B19 2G EDGE / GPRS: 850 / 900 / 1800 / 1900 MHz |
| CONNECTORS | (2) 50 Ω SMA (center pin: female) |
| SIM SLOTS | (2) Mini-SIM (2FF) |
| SIM SECURITY | Behind SIM cover, secured with screw (#1 Phillips) |
| SOFTWARE AND MANAGEMENT | |
| PYTHON | Python 3 |
| REMOTE MANAGEMENT | Digi Remote Manager®; SNMP v2/v3 (user-installed/managed) |
| LOCAL MANAGEMENT | WebUI (HTTP/HTTPS); CLI (Telnet, SSH) |
| MANAGEMENT / TROUBLESHOOTING TOOLS | FTP client, SCP; protocol analyzer with PCAP for Wireshark; event logging with syslog and SMTP client; NTP/SNTP; Nagios, Intelliflow, iPerf, Dynamic DNS, ping, traceroute |
| ETHERNET | |
| PORTS | (1) RJ-45; 10/100 Mbps (auto-sensing) |
| SERIAL | |
| PORTS | (1) RJ-45 10-pin (10P10C); RS-232/485; software selectable - RS-232 DTE (RXD, TXD, RTS, CTS, DTR, DCD, DSR, RI) - RS-485 (TX/RX+; RX/TX-); half-duplex |
| PHYSICAL | |
| DIMENSIONS (L x W x H) | 157 mm x 106 mm x 35 mm (6.18 in x 4.17 in x 1.38 in) |
| WEIGHT | 0.39 kg (0.86 lb) |
| STATUS LEDs | Power, SIM, LTE/Internet, XBee, signal strength (5) |
| ENCLOSURE | Glass-filled polyphenylene sulphide (PPS) / IP30 |
| POWER REQUIREMENTS | |
| POWER INPUT | 9 - 30 VDC, 1.0 A maximum |
| POWER CONSUMPTION | 2.5 W typical (idle); 6 W typical (peak Tx/Rx) |
| ENVIRONMENTAL | |
| OPERATING TEMPERATURE | -40° C to 74° C (-40° F to 165° F); device performance may be impacted above 60° C (140° F) |
| RELATIVE HUMIDITY | 5% to 95% (non-condensing) |
| APPROVALS | |
| CELLULAR AND REGULATORY | Visit www.digi.com/resources/certifications for the latest cellular and regulatory approvals |
| SAFETY | UL60950-1, IEC62368-1, CB, EN62311, UL 121201/CSA 213 (Class 1, Div 2) |
| ENVIRONMENTAL | ROHS3 |
| EMISSIONS / IMMUNITY | CE; RED; FCC Part 15, Subpart B*; ICES-003; AU/NZS CISPR32 |
| WARRANTY | |
| PRODUCT WARRANTY | 3-year** |
**Standard 3-year warranty upgradeable to 5 years with the purchase of a Digi Remote Manager Premier 5-year subscription applicable to the product purchased only at the time of product purchase and with product registration at that time in Digi Remote Manager.
| ENTERPRISE SOFTWARE | Description |
|---|---|
| PROTOCOL SUPPORT | HTTPS, FTP client, TLS v1.2, SCP (client and server), SFTP, SMTP client for use by scripts and the command line, SNMP (v2/v3), SSH; remote management via Digi Remote Manager®; protocol analyzer, ability to capture PCAP for use with Wireshark; DynDNS; dynamic DNS client compatible with BIND9/No-IP/DynDNS; captive portal, Intelliflow; Nagios, DNS server, NTP server, multicast, mDNS, IPerf |
| SECURITY | IP filtering, stateful firewall, custom firewall rules (iptables), address and port translation; TLS 1.2 and above, OpenVPN client and server; VPN tunnels; authentication: RADIUS, TACACS+; certificates; MAC address filtering; VLAN support |
| VPN | IPSec with IKEv1, IKEv2, NAT Traversal; OpenVPN client and server; GRE PN tunnels; cryptology: SHA-1/256/384/512, MD5, RSA; encryption: 3DES and AES up to 256-bit (CBC mode for IPsec); Diffie Hellman: DH groups 1-32 (CURVE448) |
| ROUTING/FAILOVER | IP pass-through; NAT, NAPT with IP port forwarding; GRE; multicast routing; routing protocols: RIP (v1, v2) OSPF, BGP; IP failover: VRRP; automatic failover, Digi SureLink® |
| OTHER PROTOCOLS | DHCP; dynamic DNS client compatible with No-IP/DynDNS |
DATASHEETS
Data Sheet: IX15 IoT Gateway and Cellular Router
