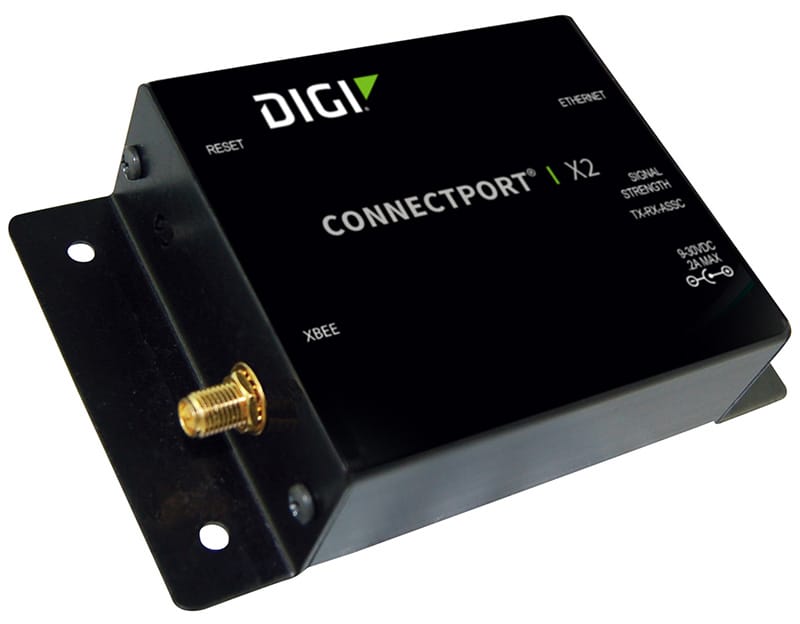

Digi ConnectPort X2 Gateway

Industrial-grade Digi XBee to IP gateway

Digi XBee to Ethernet gateway



Digi ConnectPort X2 Gateway - Pulse Supply

Customizable, low-cost Digi XBee to Ethernet gateways offer easy IP networking of RF devices and sensor networks.

Digi ConnectPort® X2 is a small Digi XBee to Ethernet gateway that provides low-cost IP networking of RF devices and sensor networks. Featuring an easy development environment, ConnectPort X2 enables custom applications to run locally while interfacing across existing Ethernet networks for WAN connectivity to the internet.

ConnectPort X2 products feature an end-to-end development environment based on local customization via Python, allowing for rapid M2M-specific application development on the industry-standard Python scripting engine.

Digi ESP™ provides an IDE featuring device detection, debugging, compiling, and downloading of Python code to Digi gateways.

Gain critical insights into your deployed devices and manage your network with Digi Remote Manager® — the command center for your deployment. Digi Remote Manager (Digi RM) is a cloud-based solution that facilitates easy setup, mass configuration, maintenance, and support for hundreds or even thousands of remote Digi devices. Digi RM lets you evaluate, update and configure your Digi enterprise products — and the health of your network — at scale after deployment.



Key Features



  • Digi XBee to Ethernet IP gateways support numerous Digi XBee protocols
  • Industrial-grade enclosures for rugged environments
  • Digi Remote Manager® for secure, scalable access to an unlimited number of remote assets and seamless web services integration from Digi gateways into customer back-office applications

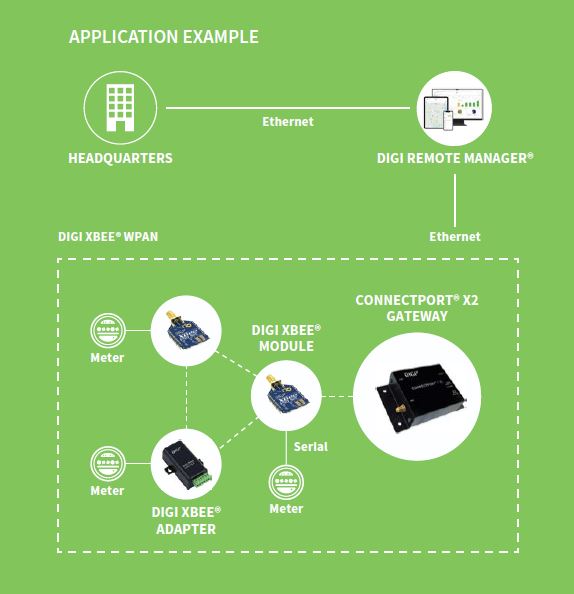

How it Works



Digi ConnectPort X2 Gateway - Sold by Pulse Supply





Digi ConnectPort X2 Gateway Applications

  • Oil and gas
  • Water/wastewater
  • Solar
  • Agriculture
  • Other Metered applications.





Product Specifications



Specifications Digi ConnectPort® X2
General
Management HTTP/HTTPS web interface, password access control, IP service port control, optional secure enterprise management via Digi Remote Manager®
Python Python 2.4.3
Protocols UDP/TCP, DHCP, SNMPv1
Total Memory 8 MB Flash, 16 MB RAM
LEDs Ethernet status, power, Zigbee® link/activity
Security SSL tunnels
Dimensions
(L x W x H)
13.9 cm x 7.0 cm x 2.9 cm (5.50 in x 2.75 in x 1.13 in);
0.20 kg (0.44 lb)
Wireless Interfaces
Digi XBee Module Options Zigbee, 900HP
Antenna Port RPSMA female
Ethernet
Ports (1) RJ-45 port
Physical Layer 10/100 Base-T
Data Rate and Mode 10/100 Mbps (auto-sensing); full or half-duplex (auto-sensing)
Power Requirements
Power Input 9-30 VDC
Power Supply 12 VDC power supply for 0° C to 60° C (32° F to 140° F) with locking barrel connector included;
Extended temperature power supply available separately
Power Consumption Idle: 1.2 W; Max: 3.4 W
Surge Protection (w/included power supply) 4 kV burst (EFT) per-4-4, 2 kV surge per EN61000-4
Environmental
Operating Temperature -30° C to 70° C (-22° F to 158° F)
Relative Humidity 5% to 95% (non-condensing)
Ethernet Isolation 1500 VAC min per IEEE802.3 / ANSI X3.263
Regulatory Approvals
Safety EN60950
Emissions/Immunity CE, FCC Part 15 (Class A)
Warranty
Product Warranty 3-year

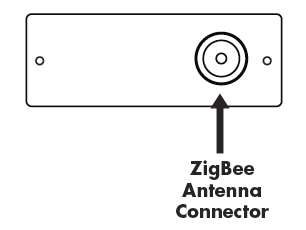

ConnectPort X2 - Side
ConnectPort X2 - Side - Pulse

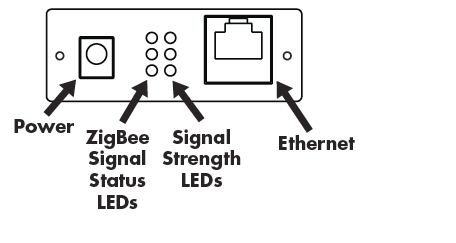

ConnectPort X2 - Side

 ConnectPort X2 - back Side - Pulse



DATASHEETS


Data Sheet:  Digi ConnectPort X2 Gateway
