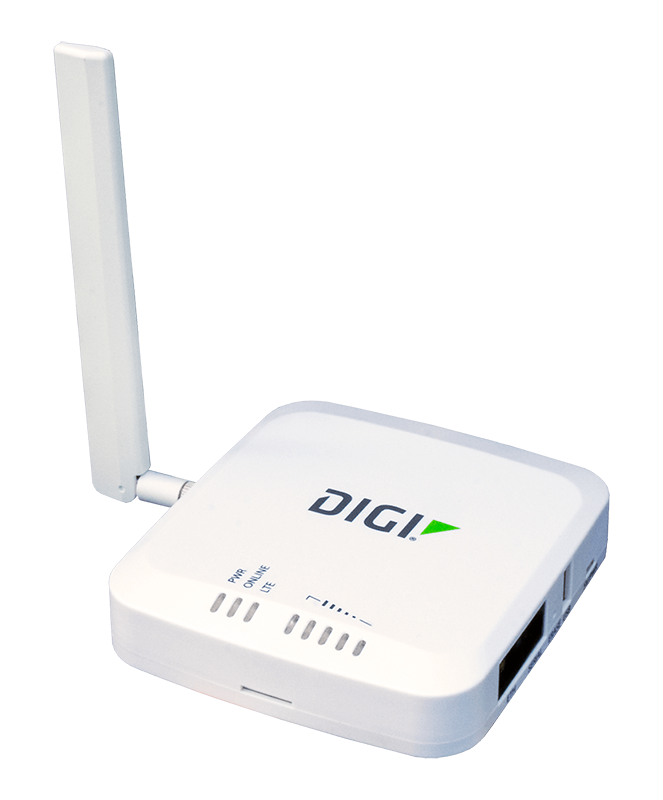

Digi Connect IT Mini

Console Server

Out of Band Cellular Gateway to Access a Servers Console Port



Digi Connect IT Mini Console Server - Pulse Supply

Secure, affordable, managed out-of-band access for isolated remote IT devices.

Digi Connect® IT Mini remote console access server ensures continuous network uptime to remote locations. It provides an always-on, out-of-band gateway for branch office routers in locations like retail stores, kiosks, or other sites. Connect IT Mini enables backup connectivity to manage and correct issues with isolated, critical IT infrastructure.

For enterprises that need serial access for remote equipment monitoring, Digi Connect IT Mini offers a complete and secure cellular-based solution in the industry for less than the cost of an enterprise modem. Using Digi Remote Manager® (DRM) and Connect IT Mini, network administrators can identify and remediate issues at the network edge before they can become a work order or cause a network interruption.

Digi TrustFence®, a suite of hardware and security features, ensures the integrity of Digi Connect IT Mini and safeguards out-of-band access to isolated infrastructure. To secure your connections, built-in features include authenticated boot, encrypted data storage, access-controlled ports, and secure software updates.

DRM and Digi Connect IT Mini provide easy setup, configuration, security management, and serial port monitoring of large installations of remote Digi devices. DRM offers web-based device management for any Digi cellular routers, gateways, or third-party devices with a single-pane-of-glass view to monitor and access Digi Connect IT console access servers and the critical IT assets to which they are connected.

.



Digi Connect IT Mini Console Server - Pulse Supply







Key Features



  • LTE Cat-M for maximum coverage
  • Out-of-band (OOB) management and recovery using secure SMS
  • Advanced modem management software
  • Early detection and remediation of issues
  • Operates independently from the in-band network
  • Identify any unusual activity or attempts to access the remote device
  • Send automated alerts via email or SMS to notify of any network issues

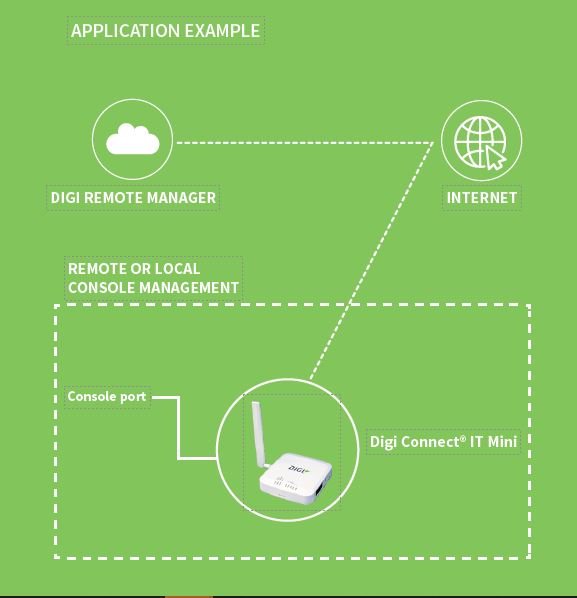

How it Works



Digi Connect IT Mini Console Server - Diagram





Digi Connect IT Mini Applications

  • Retail stores
  • Kiosks
  • Or other remote sites





Product Specifications




SPECIFICATIONS DIGI CONNECT® IT MINI
CELLULAR LTE Cat-M/NB-IoT/2G; LTE bands: B1, B2, B3, B4, B5, B8, B13, B18, B19, B20, B26, B28; 2G bands: B2, B3, B5, B8
MODULE SUPPORT Global LTE Cat-M/NB-IoT
SOFTWARE AND MANAGEMENT
REMOTE MANAGEMENT Digi Remote Manager® (cloud-based)
LOCAL MANAGEMENT WebUI (HTTP/HTTPS); CLI (console, SSH)
NETWORK
ETHERNET RJ-45; 10/100 Mbps (auto-sensing)
CONNECTIONS
SERIAL/USB Serial port RJ-45 RS-232 and USB 2.0 host port
PHYSICAL
DIMENSIONS (L x W x H) 127 mm x 127 mm x 25 mm (5.0 in x 5.0 in x 1.0 in)
WEIGHT 0.37 kg (13 oz)
STATUS LEDS Power, online, LTE, (5) signal strength
POWER REQUIREMENTS
POWER INPUT 5.0 VDC, 1 A; 100-240 VAC
ENVIRONMENTAL
OPERATING TEMPERATURE 0º C to 40º C (32º F to 104º F)
RELATIVE HUMIDITY 5% to 95% (non-condensing)
APPROVALS
CELLULAR CERTIFICATIONS Verizon, AT&T, PTCRB
SAFETY, ENVIRONMENTAL, EMISSIONS/IMMUNITY FCC Part 15, Subpart B, Class A; CE, RCM; CAN ICES03(B)/NMB-3(B)
WARRANTY
PRODUCT WARRANTY*

3-year





ENTERPRISE SOFTWARE DESCRIPTION
PROTOCOL SUPPORT HTTP, HTTPS, FTP, SFTP, SSL, SNMP v3, SSH and CLI for web management; remote management via Digi Remote Manager; SMS management
SECURITY/VPN IP filtering, stateful inspection firewall with scripting, address and port translation; VPN: IPSec with IKEv1, IKEv2, NAT Traversal; SSL, SSLv2, SSLv3; IPSec & OpenVPN tunnels; Cryptology: SHA-1, SHA-2, MD5, RSA; Encryption: DES, 3DES and AES up to 256-bit (CBC mode for IPsec); Authentication: RADIUS, TACACS+, MAC address filtering; VLAN support
ROUTING/FAILOVER IP pass-through; NAT, NAPT with IP port forwarding; Ethernet bridging; GRE; multicast routing; Routing protocols: PPP, OSPF, BGP, RSTP (Rapid Spanning Tree Protocol); IP failover: VRRP, automatic failover/failback to secondary connection
OTHER PROTOCOLS QoS via TOS/DSCP/WRED; UDP/TCP to serial





DATASHEETS


Data Sheet:  Digi Connect IT Mini
