Digi Connect WS
Extended safety terminal server
60601 Certified Extended Safety Terminal Server
An extended safety terminal server is designed for serial over network applications that require 60601 certified solutions.
Digi Connect® WS is intended to be used with a data acquisition system to connect to RS-232 serial devices and send data from these serial devices to the data acquisition system without adjusting or manipulating the format. The extended safety terminal server complies with IEC 60601-1 3rd edition and can be used in environments requiring this level of testing, including being placed within the patient environment when used as part of a medical electrical (ME) system.

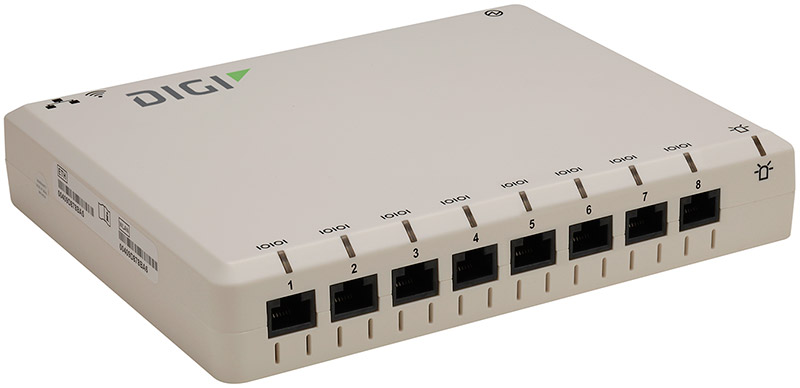

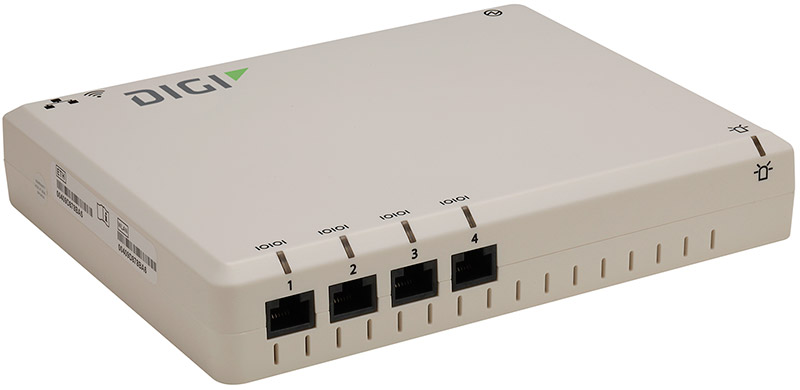

The Digi Connect WS provides serial over IP connectivity for the environment that connects RS-232 devices to an information system network. It is available in three models with one, four, or eight RS-232 serial ports. Digi Connect WS supports 10/100 Ethernet and 802.11a/b/g/n compatible Wi-Fi.
Independent socket connectivity for each port gives system administrators a high level of control over networked serial devices.
.
Key Features
- 1/4/8-port RS-232 serial-to-network connectivity
- 802.11 a/b/g/n Wi-Fi
- Power over Ethernet support
- IEC 60601 3rd edition compliant
- Wi-Fi Alliance Certified, WPA & WPA2 personal and enterprise, AES, TKIP, 802.11w, 802.11d, 802.11h, PMF
- VESA mountable
- TCP Socket Connectivity to individual devices
- HTTPS supported for additional security
- Ports may be connected to from different systems, OS independent

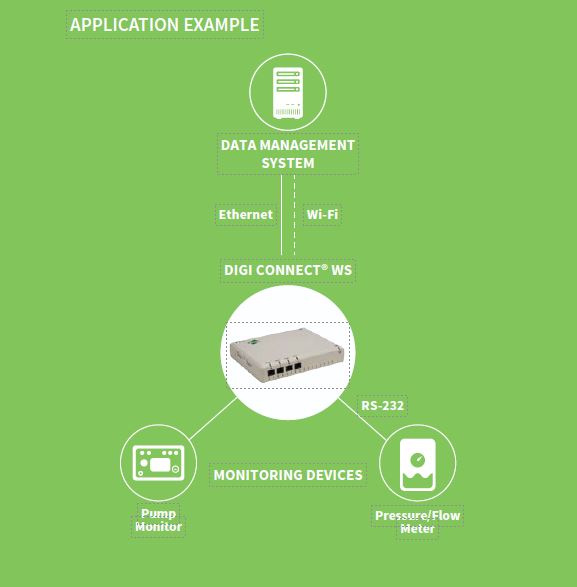

How it Works
Digi Connect WS Applications
- Components for Medical Devices
- Outpatient Care Devices
Product Specifications
| Specifications | Digi Connect WS |
| FEATURE | |
| MANAGEMENT | HTTPS, HTTP, SNMP, Optional management through Digi Remote ManagerSM |
| PROTOCOLS | HTTP, HTTPS, TCP, SNMP |
| SECURITY | SSL, TLS |
| LEDS | Power, Ethernet, Serial, Wi-Fi, Find Me |
| DIMENSIONS (LENGTH X WIDTH X HEIGHT) |
Approximately 200 mm x 160 mm x 40 mm (4 and 8 port), 140 mm x 120 mm x 40 mm (1 port) |
| WEIGHT | 1 kg (4 and 8 port), 0.5 kg (1 port) |
| MOUNTING | VESA 75, Direct and Arm |
| INTERFACES | |
| SERIAL PORTS | 1, 4, or 8 ports |
| SERIAL CONNECTOR | RJ-45 RS232 |
| ETHERNET PORTS | 1 |
| ETHERNET PHYSICAL LAYER | 10/100 |
| WI-FI | 802.11 a/b/g/n 2.4 and 5 g (can be disabled) |
| WI-FI MODES | Wi-Fi Alliance Cert, WPA & WPA2 personal and enterprise, AES, TKIP, PMF, 802.11d, 802.11h, 802.11w |
| POWER REQUIREMENTS | |
| POWER CONSUMPTION | WS 1: 0.1 A RMS MAX WS 4/8: 0.25 A RMS MAX |
| POWER INPUT | 100-240 VAC IEC 60320 C8 Connector |
| POWER OVER ETHERNET | 802.3af |
| POWER SUPPLY | 60601-1 Class II |
| SURGE PROTECTION | Per IEC 61000-4-5: ±1 kV Per IEC 61000-4-4: ±2 kV for power supply lines (EFT) |
| ENVIRONMENTAL | |
| OPERATING TEMPERATURE | +10º C to +40º C |
| STORAGE TEMPERATURE | -20º C to +40º C |
| RELATIVE HUMIDITY | 10% to 90% non-condensing |
| ALTITUDE | 2000 meters |
| SERIAL PORT PROTECTION (ESD) | Per IEC 61000-4-2 ±6 kV contact; ±8 kV air |
| STANDARDS | |
| SAFETY | EN 60601-1: 2005 + corr.1 (2006) + corr.2 (2007) + A1 :2013, IEC 60601-1-2 Ed3 : 2007, IEC 60601-1-6: 2006 + A1: 2013 |
| EMISSIONS | FCC 47 CFR Part 15 B and C, ICES-003, EN 301489-1, EN 301489-17, EN 300328, EN 62311 Wi-Fi/RF: EN 301 489-1 v1.9.2; EN 301 489-17 v2.1.1; EN 300 328 v1.8.1; EN 62311: 2008; RSS-210 |
| IMMUNITY | EN55024, ICES-003 |
DATASHEETS
Data Sheet: Digi Connect WS
