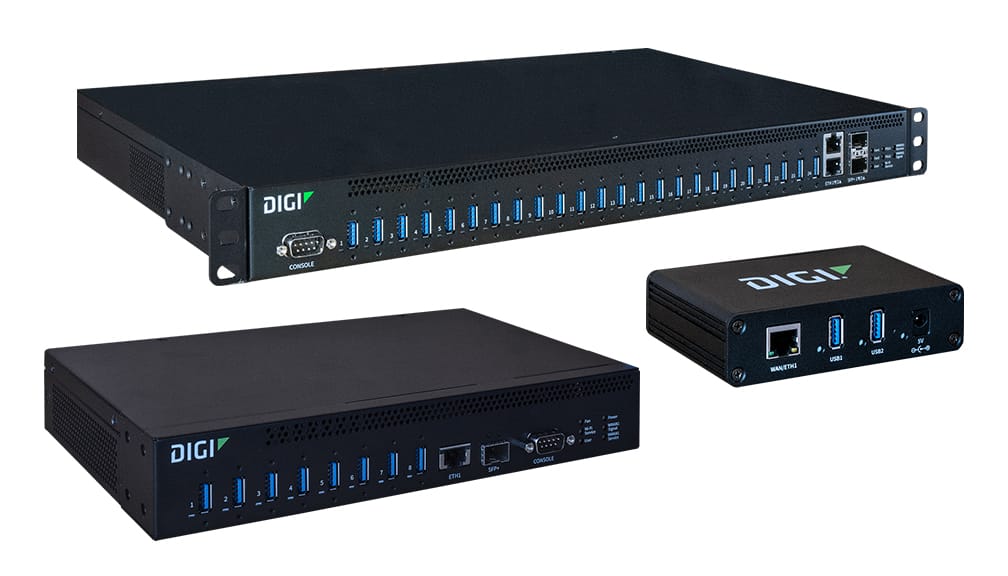

Digi AnywhereUSB Plus

USB over IP Gateway

USB Connectivity Anywhere. Rapidly deploy, configure, secure, and manage devices at any distances



Digi AnywhereUSB Gateway - Pulse Supply

Connect USB peripheral devices anywhere on a Local Area Network (LAN) without a locally-attached host computer.

Digi AnywhereUSB® Plus brings secure, flexible, and scalable USB 3.1 multiport connectivity for USB devices connected from remote or virtualized hosts. These USB hubs provide secure, robust connectivity between peripheral devices and a PC without the physical proximity constraints typically associated with USB devices.

Protect the host PC, and your network, by moving the PC into a more secure and environmentally protected location while allowing AnywhereUSB Plus to extend connectivity to peripheral devices.

In the IoT world, the technological evolution is accelerating and expanding, which drives the need to continuously update deployed devices with new features and firmware. As a network engineer, you need a consistent, secure and cost-effective way to verify that your IoT infrastructure is configured correctly and fully operational as it continues to expand. You also need flexible methods to test, provision, confirm and resolve any connectivity issues related to scaled deployments of IoT devices. Digi AnywhereUSB® Plus lets you readily manage a large volume of USB devices with minimal effort.

Increase Security Posture and Agility
As a network of USB IoT devices expands, the risk of cyberattacks increases. Network engineers need to take proactive measures to increase the security posture of their network. AnywhereUSB Plus coupled with Digi Remote Manager® protects your peripheral devices and gives you the security agility needed to keep your networks safe.

.

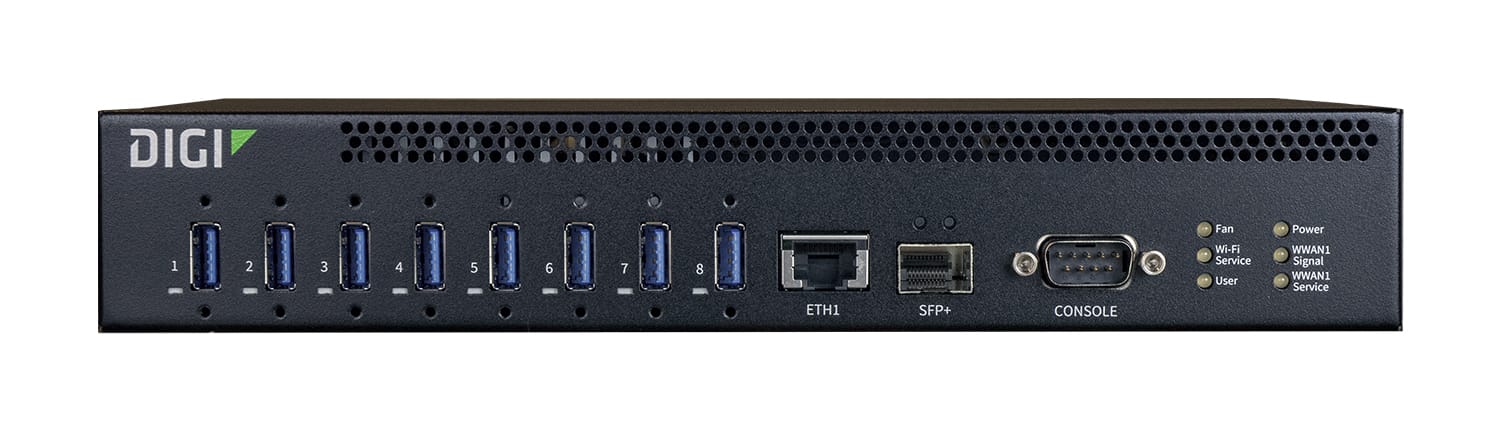

Digi AnywhereUSB Gateway -  8 Plus - Pulse Supply







Key Features



  • Unique password for each hub
  • Configurable network service port numbers
  • Secure access and authentication to the web UI and CLI
  • One password, one permission level
  • Selectively enable and disable network services such as mDNS, HTTP/HTTPS, and SSH
  • Encrypted access to AnywhereUSB® Plus traffic: Access to the USB-over-IP traffic is encrypted and authenticated by default and cannot be disabled
  • Protected by the Digi TrustFence® framework
  • Manage Digi AnywhereUSB Plus remotely and securely with Digi Remote Manager, a comprehensive IoT device management application

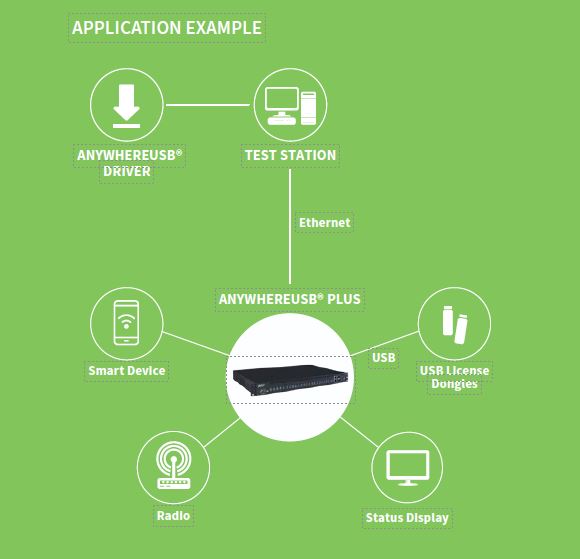

How it Works



Digi AnywhereUSB Plus Gateway - Cellular Router





Digi AnywhereUSB Plus Gateway Applications

  • Kiosks
  • Warehouse logistics
  • Retail Point of Sale (POS)
  • Retail tracking scanners
  • Restaurant kitchens
  • Manufacturing lines
  • Software license key fob management





Product Specifications




Specifications AnywhereUSB® 2 Plus AnywhereUSB® 8 Plus AnywhereUSB® 24 Plus
CELLULAR
MODULE SUPPORT - (1) Digi CORE modem compliant socket (1) Digi CORE modem compliant socket
SOFTWARE AND MANAGEMENT
REMOTE MANAGEMENT Digi Remote Manager® (cloud based)
LOCAL MANAGEMENT WebUI (HTTP/HTTPS); CLI (SSH) WebUI (HTTP/HTTPS); CLI (Console, SSH) WebUI (HTTP/HTTPS); CLI (Console, SSH)
OPERATING SYSTEMS Windows 7, Windows 8.1, Windows 10, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
PROTOCOLS Supports multi-host connectivity for each USB port or group independently
MEMORY 512 MB RAM, 4 GB flash (eMMC) 2 GB RAM, 4 GB flash (eMMC) 2 GB RAM, 4 GB flash (eMMC)
NETWORK
ETHERNET (1) RJ-45; 10/100/1000 Mbps (1) RJ-45; 10M/100M/1G/10G (2) RJ-45; 10M/100M/1G/10G
SFP+ - (1) SFP+ socket (2) SFP+ sockets
CONNECTORS
CONSOLE - (1) DB09M; RS-232 DTE
USB (2) USB 3.1 Gen 1 Type A (8) USB 3.1 Gen 1 Type A (24) USB 3.1 Gen 1 Type A
USB PORT POWER 1.8 A per port (simultaneous) 1 A per port (simultaneous) 1 A per port (simultaneous)
PHYSICAL
DIMENSIONS (L X W X H) 4.6 in x 2.9 in x 1.2 in (118 mm x 74 mm x 30 mm) 10 in x 6 in x 1.75 in (260mm x 160 mm x 44.45 mm) 17.75 in x 10 in x 1.75 in (450.85 mm x 255 mm x 44.45 mm)
WEIGHT 0.84 lb (0.38 kg) 3.48 lb (1.58 kg) 10.36 lb (4.7 kg)
STATUS LEDS (2) Ethernet, 2 (x1) USB, power (2) Ethernet, (2) SFP+ 8 (x1 )USB, power, fan, user, (3) future Wi-Fi/WWAN 2 (x2) Ethernet, 2 (x2) SFP+, 24 (x1) USB, 2 (x1)PSU, 2 (x1) fan, user, (3) future Wi-Fi/WWAN
POWER REQUIREMENTS
POWER INPUT 5 V, 5 A max 12 VDC, 12 A max 100-240 V, 3 A max (2 supplies for redundancy)
POWER CONSUMPTION 25 watts max 98.5 watts max 157.7 watts max
ENVIRONMENTAL
OPERATING TEMPERATURE 0° C to 40° C (32° F to 104° F) 0° C to 55° C (32° F to 131° F) 0° C to 55° C (32° F to 131° F)
RELATIVE HUMIDITY 5% to 95% (non-condensing) 5% to 95% (non-condensing) 5% to 95% (non-condensing)
APPROVALS
SAFETY UL 60950, CSA 22.2 No. 60950, EN60950, EN62368 UL/EN60950, UL/EN62368 and CSA 22.2 UL 60950, CSA 22.2 No. 60950, EN60950, EN62368
EMISSIONS/IMMUNITY CE, FCC Part 15 Class B, AS/NZS CISPR 22, EN55024, EN55032 CE, FCC Part 15 Class B, AS/NZS CISPR 22, EN55024, EN55032 CE, FCC Part 15 Class B, AS/NZS CISPR 22, EN55024, EN55032
WARRANTY
PRODUCT WARRANTY 5-year

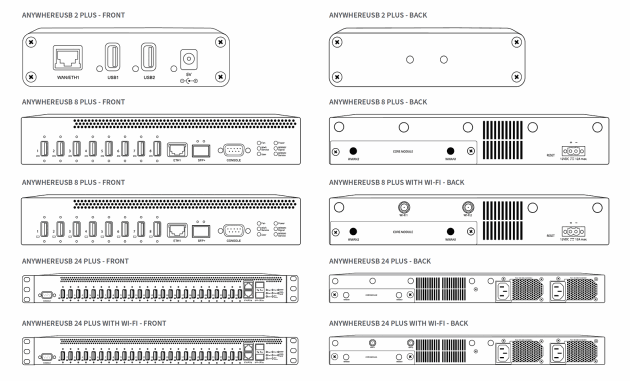

digi anywhereusb plus models - sold by Pulse Supply



DATASHEETS


Data Sheet:  Digi AnywhereUSB Plus Gateways
