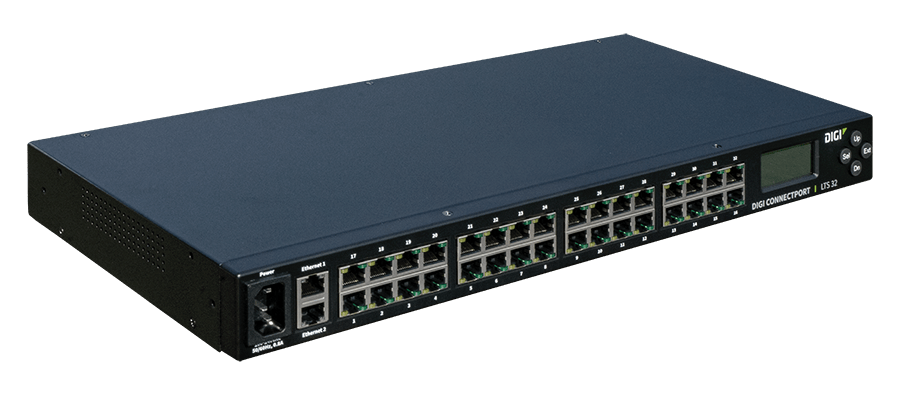

ConnectPort LTS 8/16/32 Terminal Server

Terminal Servers

Next-generation serial servers support GB Ethernet and IPv6 networks



Digi ConnectPort - Terminal Server - Pulse Supply

The Digi ConnecPort is a Next-generation serial server that supports GB Ethernet and IPv6 networks.

The ConnectPort® LTS terminal server family delivers secure, reliable, flexible, and cost-effective RS-232/422/485 serial-to-Ethernet connectivity. Targeted serial-to-IP applications include security, property management, point-of-sale, data acquisition, industrial automation, power utilities, logistics, and others.

Features include dual GB Ethernet for extreme reliability, an SD memory slot for data storage, and a large LCD screen for easy configuration, monitoring, and diagnostics.

Highly advanced software features include an IPv4/IPv6 dual-stack, user port sharing, port logging, SSHv2, and SSL. Python support and a Software Development Kit (SDK) make this versatile Linux-based appliance a good platform for programming.

.

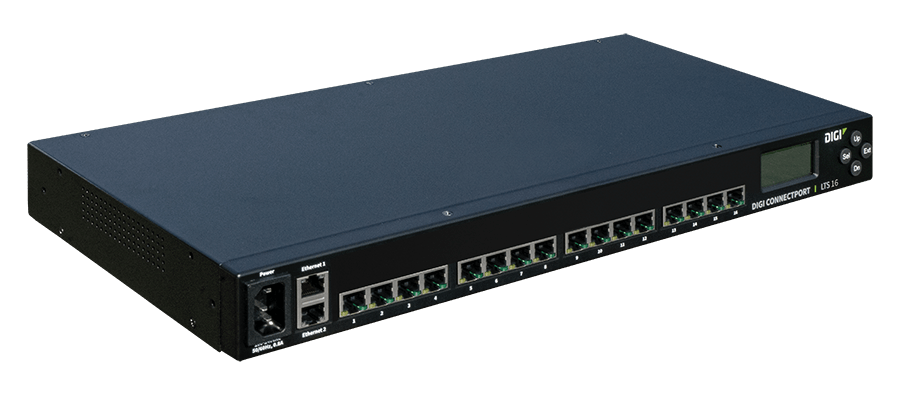

ConnectPort LTS 16 Terminal Server - Pulse Supply







Key Features



  • Dual GB Ethernet ports for routing
  • Software selectable RS-232/422/485 (MEI models only) for industrial applications
  • LCD display for status monitoring, diagnostics, and configuration
  • SD memory slot for data storage, supporting SD and HCSD
  • Dual power option on 16-port MEI model

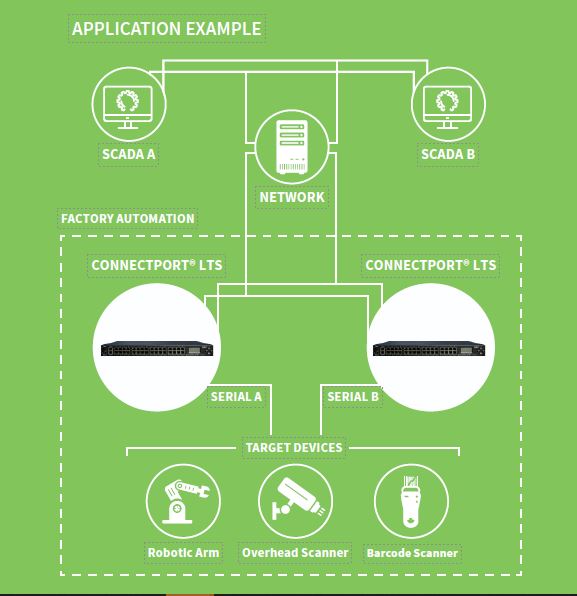

How it Works



Digi Connectport - LTS - Terminal Server





ConnectPort - LTS - Terminal Server Applications

  • Security
  • Property Management
  • Point-of-sale
  • Data acquisition
  • Industrial automation
  • Power utilities
  • Logistics





Product Specifications



Specifications ConnectPort® LTS 8 ConnectPort® LTS 16 ConnectPort® LTS 32
Features
Processor Freescale MPC8314, 400 MHz
Throughput Up to 230 kbps
Memory 128 MB SDRAM / 34 MB Flash 256 MB SDRAM / 34 MB Flash
Management HTTP/HTTPS, CLI or telnet, SNMP read and write
Operating Systems Microsoft Windows® 7, 8, 8.1, 10 and Windows Server® 2012, 2016, 2019; and Linux®
Note: TCP/UDP socket services are operating system independent
Software RealPort®, Python, port sharing (sockets only, not for RealPort), port logging (online and offline), line printer daemon
Protocols TCP/UDP, DHCP, telnet, reverse telnet/SSHv2/SSL, IPv4/IPv6
Security Encrypted RealPort, SSHv2, TLS/SSL
LEDs Serial ports: Tx/Rx per port; Ethernet: link/activity, power, ready, diagnostic
Dimensions (Length x Width x Height) 189 mm x 271 mm x 44 mm
(7.4 in x 10.7 in x 1.7 in)
222 mm x 443 mm x 44.5 mm (8.7 in x 17.4 in x 1.8 in)
Weight 1550 g (3.4 lb) 2600 g (5.7 lb); 2690 (5.9 lb) dual power model
Interfaces
Serial Ports 8 RS-232/422/485 software selectable MEI 16 RS-232 or RS-232/422/485 software-selectable (MEI models) 32 RS-232 or RS-232/422/485 software-selectable (MEI models)
Serial Connector Digi 10-pin
Ethernet Physical Layer Dual 10/100/1000 Mbps auto-sensing; full or half-duplex
Console Ports 10-pin RJ-45 serial port for configuration
Power Requirements
Power Input 9-30 VDC 100-240 VAC, 50-60 Hz, 0.8 A 100-240 VAC, 50-60 Hz, 0.8 A
Power Supply 2 A @ 12 VDC N/A N/A
Power Consumption 18 W max 30 W max
Environmental
Operating Temperature 0º C to 55º C (32º F to 130º F)
Storage Temperature -20° C to 66° C (-4° F to 151° F)
Relative Humidity 5% to 95% (non-condensing)
Serial Port Protection(ESD) ±15 kV
Ethernet Isolation 1500 VAC (rms)
Regulatory Approvals
Safety UL 60950-1, EN 60950-1, EN62368-1
Emissions/Immunity FCC Part 15, Subpart B, Class A, EN 55022 Class A, EN 55024






DATASHEETS


Data Sheet:  ConnectPort LTS 8/16/32 Terminal Server
