PortServer TS
Serial-to-Ethernet Connectivity
Cost-Effective Serial Servers
The Digi ConnecPort is a Next-generation Terminal Servers with a Dual IPv4/IPv6 stack.
PortServer® TS serial servers offer a simple, reliable, and cost-effective solution for connecting multiple serial devices over industry standard Ethernet. Target applications include retail/point-of-sale, building control, and medical point-of-care.
Digi’s patented RealPort®, with encryption and user authentication*, makes it possible to establish a connection between the host and networked serial device by creating a local COM or TTY port on the host computer, allowing software applications to work with networked device servers instead of requiring a host adapter.
PortServer TS is easy to install locally or remotely through a variety of IP addressing methods (DHCP, RARP, ARP-Ping) along with an application included on the installation CD that will automatically detect all PortServer devices on your network.
*The RealPort encryption feature is compatible with Microsoft Windows® 7, 8, 8.1, 10 and Windows Server® 2012, 2016, 2019; and Linux®. The RealPort authentication feature is compatible only with Microsoft Windows® 7, 8, 8.1, 10 and Windows Server® 2012, 2016, 2019.
For RS-232/422/485 support, please see PortServer TS MEI.
.
Key Features
- 1, 2, or 4 RS-232 serial ports for standard serial-to-Ethernet connectivity
- Ideal for applications requiring COM ports, serial tunneling, TCP/UDP sockets, or multiple unicast functionalities
- Patented RealPort® for COM/TTY port control and management
- Modem emulation
- Monitoring and diagnostic utility
- Secure communication via SSHv2
- Tunable for low latency or optimized for throughput
- Easy web-based configuration (HTTP/HTTPS)

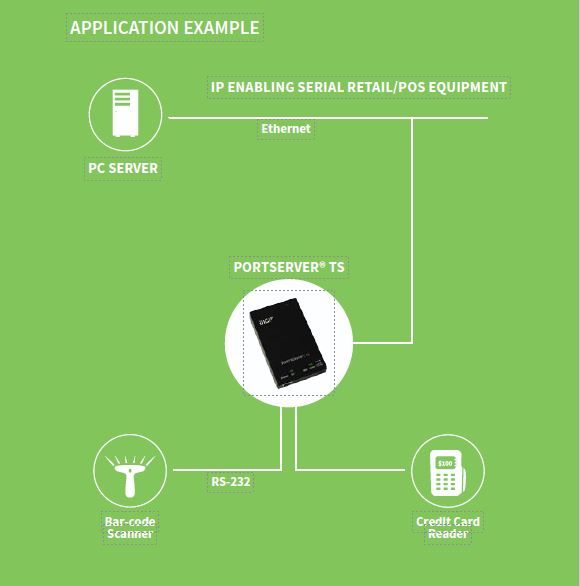

How it Works
PortServer TS Applications
- Retail/point-of-sale
- Building control
Medical point-of-care
Product Specifications
| Specifications | PortServer TS 1 | PortServer TS 2 | PortServer TS 4 |
| Features | |||
| Management | HTTP/HTTPS, CLI, SNMP (read/write), Digi Port Authority - remote management diagnostics and auto-discovery tool | ||
| Protocols | UDP/TCP, DHCP/RARP/ARP-Ping for IP Address assignment, PPP, Extended Telnet RFC 2217, Telnet, Reverse Telnet, Modbus to Modbus/TCP protocol conversion support, RADIUS, Reverse SSH | ||
| Software | Supports Digi’s Realport® COM port redirector | ||
| Security | SSHv2, SSL/TLS | ||
| Status LEDs | Link, activity, power, status | ||
| Operating Systems |
Microsoft Windows® 7, 8, 8.1, 10 and Windows Server® 2012, 2016, 2019; and Linux®. Note: TCP/UDP socket services are operating system independent. |
||
| Dimensions (L x W x D) |
13.34 cm x 8.46 cm x 2.42 cm (5.25 in x 3.33 in x 0.95 in) | ||
| Weight | 189 g (6.67 oz) | ||
| Other | Full modem and hardware flow control, modem emulation, port buffering, RJ-45/DB-9F console adapter included for optional serial configuration | ||
| Interfaces | |||
| Serial | |||
| Ports | 1 RS-232 RJ-45; up to 230 kbps throughput; signal support for TXD, RXD, RTS, CTS, DTR, DSR, DCD | 2 RS-232 RJ-45; up to 230 kbps through-put; signal support for TXD, RXD, RTS, CTS, DTR, DSR, DCD | 4 RS-232 RJ-45; up to 230 kbps throughput; signal support for TXD, RXD, RTS, CTS, DTR, DSR, DCD |
| Ethernet | |||
| Ports | 1 RJ-45 10/100 Mbps 10/100Base-T (auto-sensing); full or half duplex | ||
| Power Requirements | |||
| Power Input | 9-30 VDC | ||
| Power Supply (included) | 12 VDC / 1.5 A max out; 100-240 VAC 50-60 Hz in (wall mount) | ||
| Power Supply (optional) | 12 VDC extended temperature power supply sold separately | ||
| Power Consumption | Typical: 4 W; Max: 6 W | ||
| Product Surge Protection (ESD) | 8 kV Air discharge and 4 kV Direct discharge, per EN61000-4-2 | ||
| Environmental | |||
| Operating Temperature | 0° C to 60° C (32° F to 140° F) | ||
| Storage Temperature | -40° C to 85° C (-40° F to 185° F) | ||
| Relative Humidity | 5% to 95% (non-condensing) | ||
| Ethernet Isolation | 1500 VAC min per IEEE802.3/ANSI X3.263 | ||
| Serial Port Protection (ESD) | 15 kV human body mode | ||
| Approvals | |||
| Safety | UL/CUL 60950, IEC 60950 & CB | ||
| Emissions/Immunity | CE, FCC Part 15 (Class A), EN55024, EN55022 Class A, AS/NZS 3548, CISPR 22, VCCI V-3/99.05 | ||

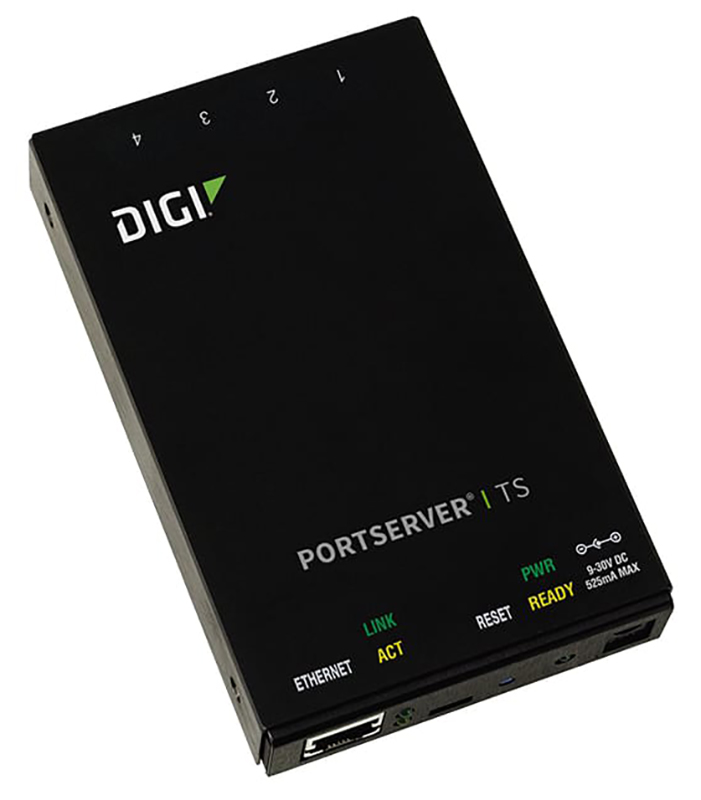

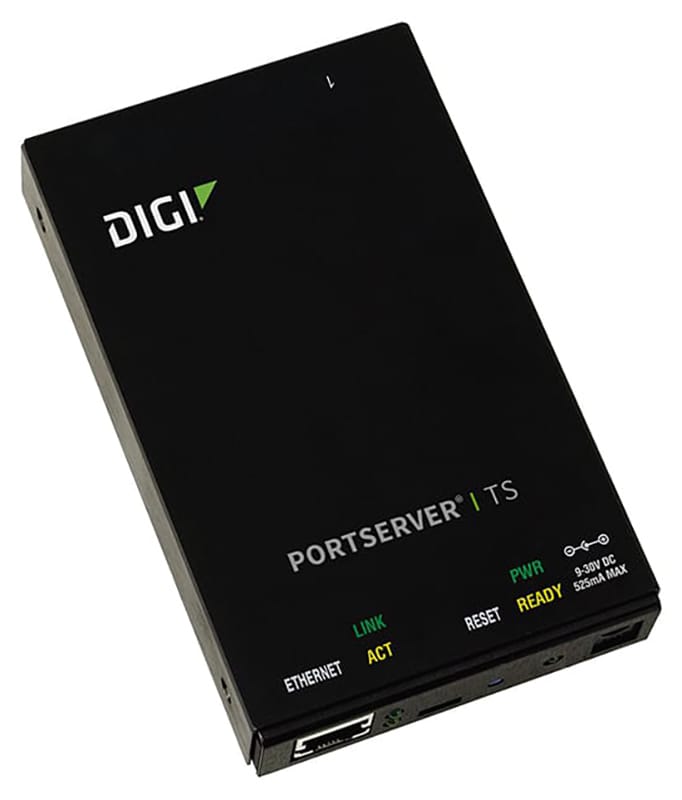

PortServer TS 1/2/4 - Front
PortServer TS 1/2/4 - Back
DATASHEETS
Data Sheet: PortServer TS
