PortServer TS MEI Hardened

Serial-to-Ethernet Connectivity

Switch Selectable Expansion for Asynchronous Connectivity

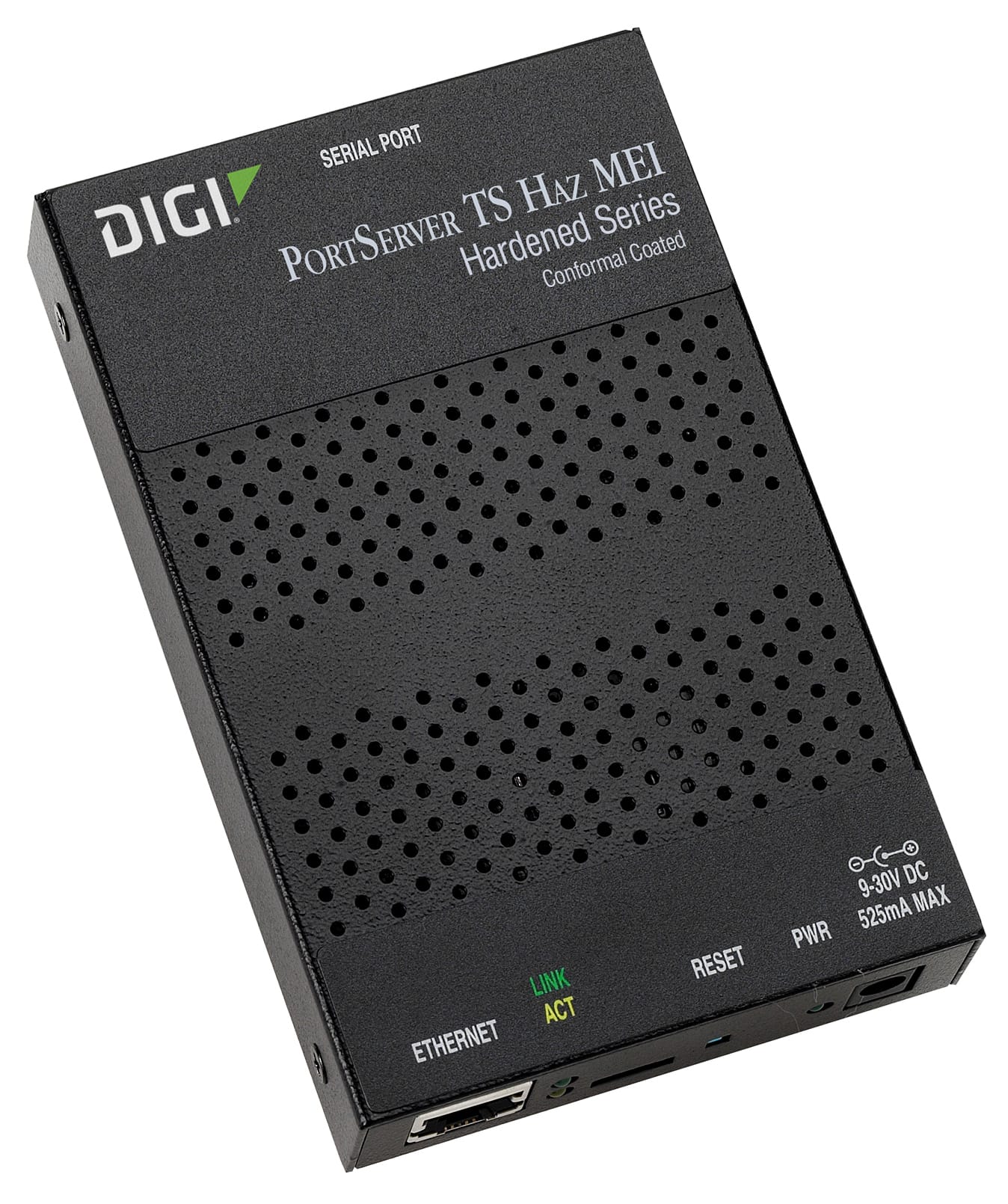

Digi PortServer TS MEI Hardened - Serial Server - Pulse Supply

The Digi PortServer TS MEI Hardened is a Switch Selectable Expansion device for Asynchronous Connectivity.

The PortServer® TS MEI Hardened family of serial servers is designed for serial port expansion where environmental hazards demand extended safety features and operating tolerances. Extended operating temperature (-35° C to +74° C), conformal coated circuit board, NEMA TS 2, and Class 1 Div 2 certifications make these rugged serial servers ideal for use in outdoor applications. Digi's patented RealPort® COM port redirector creates a local COM or TTY port on the host computer, allowing existing software applications to work without modification.

The PortServer TS H MEI model is designed for serial-to-Ethernet connectivity in utility plants, pipelines, traffic management facilities, and other remote locations requiring extended operating temperatures.

Designed to meet NEMA TS 2 and other unique requirements in traffic management installations, the PortServer TS Hcc MEI* model is ideal for network-enabling and remotely managing variable message signs, loop detectors, ramp meters, or any RS-232/422/485 serial device. Specialized features include conformal coated PCA for moisture and corrosion protection, a screw terminal power connector for durable and reliable power feed, and extended operating temperature tolerance.

The PortServer TS Haz MEI serial server offers a conformal coated PCA, extended temperature tolerance, and the ability to safely perform in flammable environments (Class 1, Division 2 certified). It is ideal for serial port expansion in factory automation and utility management (gas, electric, and water) applications.

.



Digi PortServer TS MEI Hardened  - Serial to IP Server - Pulse Supply







Key Features



  • Outdoor extended temperature tolerance (-35° C to +74° C)
  • Device servers with conformal coated circuit boards
  • NEMA TS 2 certification, Class 1 Div 2
  • 1, 2, or 4 switch-selectable serial ports (RS-232/422/485)





How it Works

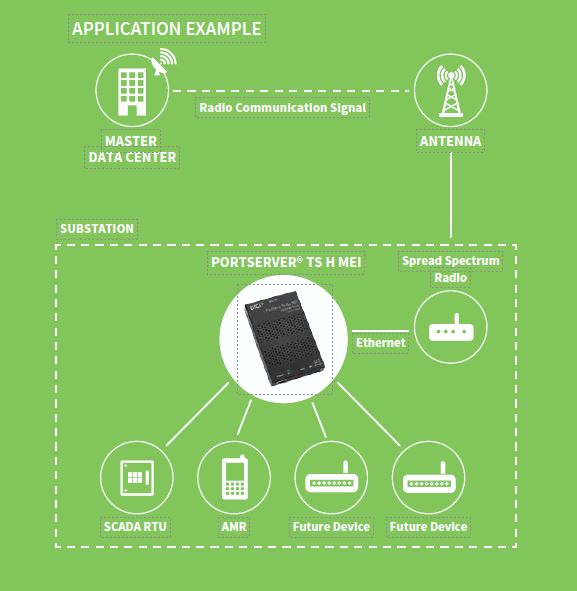

PORTSERVER TS MEI Hardened - Serial to Ethernet- Diagram





PortServer TS MEI Hardened Applications

  • Utility
  • Plants
  • Pipelines
  • Traffic management facilities
  • And other remote locations requiring extended operating temperatures





Product Specifications



Specifications PortServer TS H MEI PortServer TS Hcc MEI PortServer TS Haz MEI
Features
Management HTTP/HTTPS, PPP, CLI, SNMP (read/write), Digi Port Authority-Remote management diagnostics and auto-discovery tool
Protocols UDP/TCP, DHCP/RARP/ARP-Ping for IP Address assignment, Extended Telnet RFC 2217, Telnet, Reverse Telnet, Modbus to Modbus/TCP protocol conversion support UDP/TCP, Supports multiple unicasts, DHCP/RARP/ARP-Ping for IP Address assignment, Extended Telnet RFC 2217, Telnet, Reverse Telnet, Modbus to Modbus/TCP protocol conversion support UDP/TCP, DHCP/RARP/ARP-Ping for IP Address assignment, Extended Telnet RFC 2217, Telnet, Reverse Telnet, Modbus to Modbus/TCP protocol conversion support
Software Supports Digi’s Realport® COM port redirector
Security SSHv2, SSL/TLS
Extended Safety N/A Conformal coated circuit board, NEMA TS 2 compliant, Screw terminal connector for power Conformal coated circuit board, Screw terminal connector for power, Ships in "Latency Mode & TCP Keepalive" setting
Status LEDs Link, Power, Activity, Status
Operating Systems AIX, HP-UX, Solaris, Linux®, Windows® 2000, Windows® XP, Windows® 7, Windows® 8, Windows® 8.1, Windows® 10, Windows Server® 2003, Windows Server® 2008, Windows Server® 2012. Note: TCP/UDP socket services are operating system independent
Dimensions
(L x W x D)
5.25 in x 3.33 in x 0.95 in (13.34 cm x 8.46 cm x 2.42 cm)
Weight 2.25 oz (64.00 g)
Other Full modem and hardware flow control, Modem emulation, Port buffering, RJ45-DB-9F console adapter included for optional serial configuration, Wall mount kit included Full modem and hardware flow control, Modem emulation, Port buffering, RJ-45/DB-9F crossover adapter included for optional serial configuration
Interfaces
Serial
Ports 1/2/4 RS-232/422/485 RJ-45 (switch-selectable); Up to 230 Kbps throughput; Signal support for TXD, RXD, RTS, CTS, DTR, DSR, DCD 4 RS-232/422/485 RJ-45 (switch-selectable); Up to 230 Kbps throughput; Signal support for TXD, RXD, RTS, CTS, DTR, DSR, DCD
Ethernet
Physical Layer 1 RJ-45 10/100 Mbps 10/100Base-T (auto-sensing); Full or half duplex
Power Requirements
Power Input 9-30 VDC 9-30 VDC @ 0.5 Amps max (screw terminal power) 9-30 VDC @ 0.5 Amps max (screw terminal power)
Power Supply 12 VDC extended temperature power supply sold separately; Bare-wire “pigtail” power connector included 9-30 VDC @ 525 mA max Optional 12 VDC extended temperature power supply sold separately
Power Consumption Typical: 4 W; Max: 6 W
Surge Protection 4 kV burst (EFT) per EN61000-4-4, 2 kV surge per EN61000-4-5
Environmental
Operating Temperature -35° C to +74° C (-31° F to 165° F)
Storage Temperature -40° C to +85° C (-40° F to +185° F)
Relative Humidity 5% to 95% (non-condensing)
Ethernet Isolation 1500VAC min per IEEE802.3/ANSI X3.263
Serial Port Protection (ESD) 15 kV human body model
Approvals
Safety UL/CL60950, IEC60950, CB Class 1 Division 2, UL/CL60950, IEC60950 & CB Class 1 Division 2, UL/CL60950, IEC60950
Emissions/Immunity CE, FCC Part 15 (Class A), EN55024, EN55022 Class A, AS/NZS 3548, VCCI V-3/99 .05


PortServer TS H MEI - Front
PortServer TS H MEI 1 - Digi

PortServer TS H MEI, PortServer TS Hcc MEI - Back
PortServer TS H MEI 2 - Digi



PortServer TS Haz MEI, PortServer TS Hcc MEI  - Front
PortServer TS H MEI 3 - Digi

PortServer TS Haz MEI - Back
PortServer TS H MEI 4 - Digi









DATASHEETS


Data Sheet:  PortServer TS MEI Hardened
