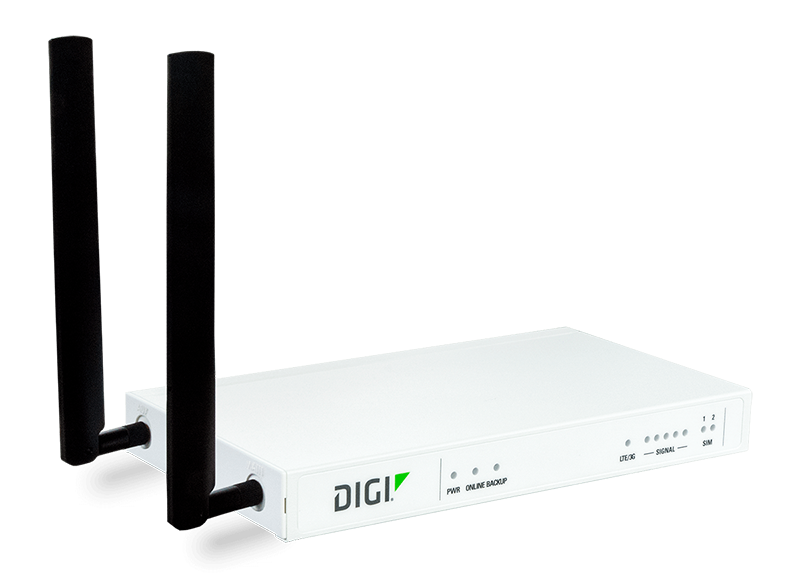

Digi Connect IT 4
Console Server
Out of Band Cellular Gateway to Access a Servers Console Port
Secure, affordable, managed out-of-band access for isolated remote IT devices and server equipment.
The Digi Connect® IT 4 remote console access server ensures continuous network uptime to all your remote locations by functioning as an always-on cellular out-of-band (OOB) gateway for branch offices, retail stores, kiosks, and other sites, even when the primary network is down. You can maximize WAN resilience with failover to 4G LTE networks, while built-in multicarrier capabilities let you instantly switch to the carrier of choice.
For enterprises that need serial access for remote equipment monitoring, Digi Connect IT 4 offers the most complete and secure cellular-based solution in the industry. Digi Connect IT 4 allows identification and remediation of issues at the network edge before they can become a work order or fail.
Digi TrustFence®, a suite of hardware and firmware security features, ensures the integrity of Digi Connect IT 4 safeguards. Pair Digi Connect IT 4 with a dedicated wireline connection to ensure dual ISP connectivity, maximum uptime, and complete business continuity for organizations that demand uninterrupted network access and availability.
Digi Remote Manager® and Digi Connect IT 4 provide easy setup, configuration, security management, and serial port monitoring of large installations of remote Digi devices. Digi RM offers web-based device management for any Digi cellular routers, gateways, or third-party devices with a single-pane-of-glass view to monitor and access Digi Connect IT remote console access servers and the critical IT assets to which they are connected.
.
Key Features
- Advanced modem management software
- OOB management and recovery using secure SMS
- Add instant business continuity to any location with primary or backup LTE connectivity
- Protect your business and brand with a simple solution to avoid network disruptions and outages
- Modular cellular support allows "right-sizing" cellular speeds and costs
- Operates independently from the in-band network
- Send automated alerts via email or SMS to notify of any network issues

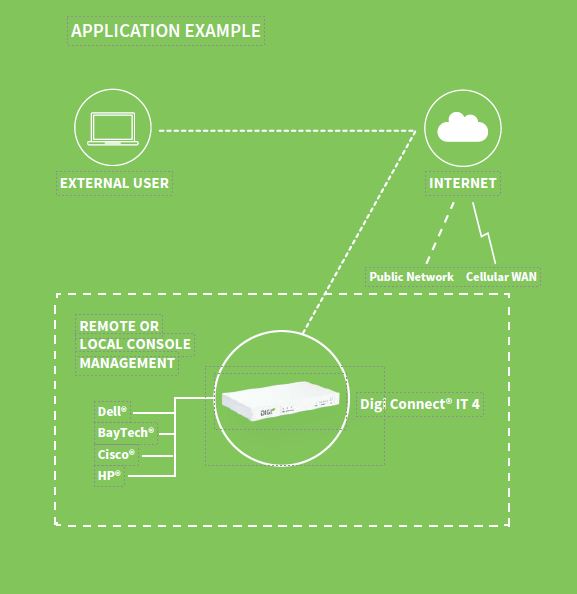

How it Works
Digi Connect IT 4 Applications
- Retail stores
- Branch offices
- Kiosks
- Or other remote sites
Product Specifications
| SPECIFICATIONS | DIGI CONNECT® IT 4 |
| CELLULAR | Cat 6, Cat 4 EMEA, Cat 4 North America |
| MODULE SUPPORT | A suite of Digi CORE™ LTE modems |
| SOFTWARE AND MANAGEMENT | |
| REMOTE MANAGEMENT | Digi Remote Manager® (cloud based) |
| LOCAL MANAGEMENT | WebUI (HTTP/HTTPS); CLI (Console, SSH) |
| NETWORK | |
| ETHERNET | (2) RJ-45; 10/100 Mbps (auto-sensing) |
| CONNECTORS | |

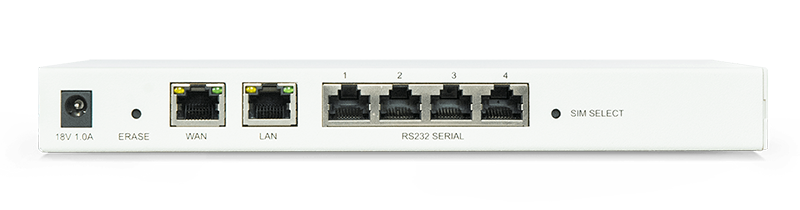

| SERIAL | (4) Serial ports RJ45 RS232 |
| PHYSICAL | |
| DIMENSIONS (L x W x H) | 228 mm x 127 mm x 25 mm (9.0 in x 5.0 in x 1.0 in) |
| WEIGHT | 0.73 kg (26 oz) |
| STATUS LEDS | Power, online, and LTE status, (5) signal strength and (2) SIM selection |
| POWER REQUIREMENTS | |
| POWER INPUT | 18V DC, .66A; 100-240 AC |
| ENVIRONMENTAL | |
| OPERATING TEMPERATURE | 0º C to 40º C (32º F to 104º F) |
| RELATIVE HUMIDITY | 5% to 95% (non-condensing) |
| APPROVALS | |
| ELECTRICAL SAFETY | IEC62368-1, EN60950 |
| EMISSIONS/IMMUNITY | FCC Part 15, Subpart B, Class A; CE, RCM; CAN ICES03(B)/NMB-3(B) |
| WARRANTY | |
| PRODUCT WARRANTY* | 3 years |
| ENTERPRISE SOFTWARE | DESCRIPTION |
| PROTOCOL SUPPORT | HTTP, HTTPS, FTP, SFTP, SSL, SNMP v3, SSH and CLI for web management; Remote management via Digi Remote Manager; SMS management |
| SECURITY/VPN | IP filtering, stateful inspection firewall with scripting, address and port translation; VPN: IPSec with IKEv1, IKEv2, NAT Traversal; SSL, SSLv2, SSLv3, FIPS 197; PPTP, L2TP; no limit VPN tunnels; Cryptology: SHA-1, SHA-2, MD5, RSA; Encryption: DES, 3DES and AES up to 256-bit (CBC mode for IPSec); Authentication: RADIUS, TACACS+, MAC address filtering; VLAN support |
| ROUTING/FAILOVER | IP pass-through; NAT, NAPT with IP port forwarding; Ethernet bridging; GRE; Multicast routing; Routing protocols: PPP, OSPF, BGP, RSTP (Rapid Spanning Tree Protocol); IP failover: VRRP, Automatic failover/failback to a secondary connection |
| OTHER PROTOCOLS | QoS via TOS/DSCP/WRED; UDP/TCP to serial |
DATASHEETS
Data Sheet: Digi Connect IT 4
Have more questions about Digi products and solutions? Need to Purchase Digi IoT and M2M Products? Call us at 410-583-1701 or email us at questions@pulsesupply.com.
