PortServer TS MEI

Serial-to-Ethernet Connectivity

Switch Selectable Expansion for Asynchronous Connectivity

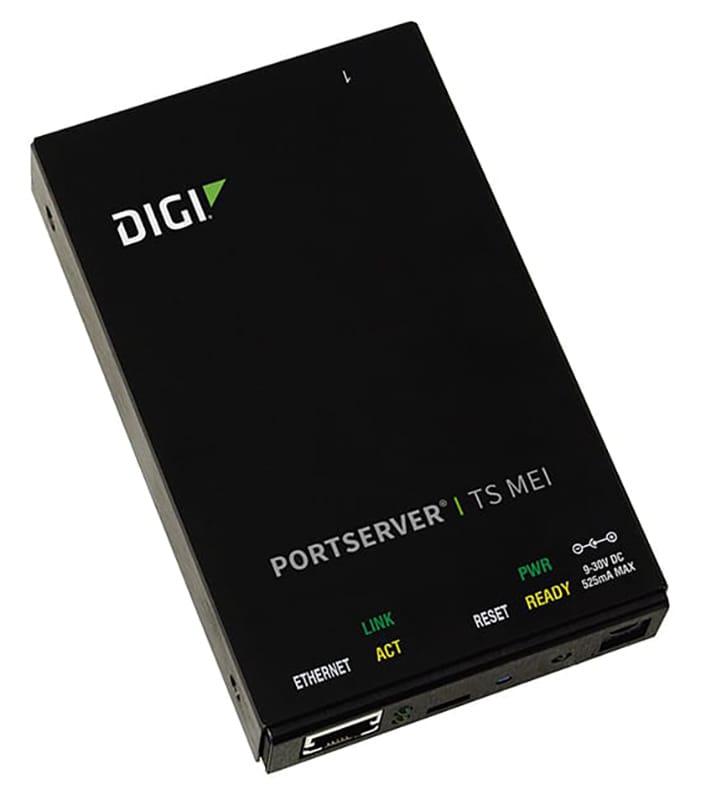

Digi PortServer TS MEI - Serial Server - Pulse Supply

The Digi PortServer TS MEI is a Switch Selectable Expansion device for Asynchronous Connectivity.

Digi PortServer TS MEI (Multi-Electrical Interface) serial servers offer RS-232/422/485 serial port expansion, making it easy to connect any serial device to your network. Available in one-, two-, four-, eight- or 16-port models, these serial servers combine the inherent benefits of data networking with proven asynchronous connectivity. They deliver powerful, yet simple Ethernet connectivity for all your serial devices.

PortServer TS MEI device servers deliver universal and powerful features including data security via SSHv2, port buffering, and full SNMP management, making them ideal for serial port expansion applications including manufacturing floor, gas pumps, and industrial automation, where device management and monitoring are critical.

All Digi device servers include Digi’s patented RealPort® COM port redirector technology, which makes it possible to establish a connection between the host and networked serial device by creating a local COM or TTY port on the host computer, allowing existing software applications to work without modification.

.



Digi PortServer TS MEI - Serial to IP Server - Pulse Supply







Key Features



  • RS-232/422/485 switch selectable serial ports
  • 1, 2, or 4 serial ports
  • Serial port expansion for manufacturing floor, gas pump, Industrial Automation
  • RealPort® with encryption provides SSL-based protection
  • SSHv2 for encrypted connections





How it Works

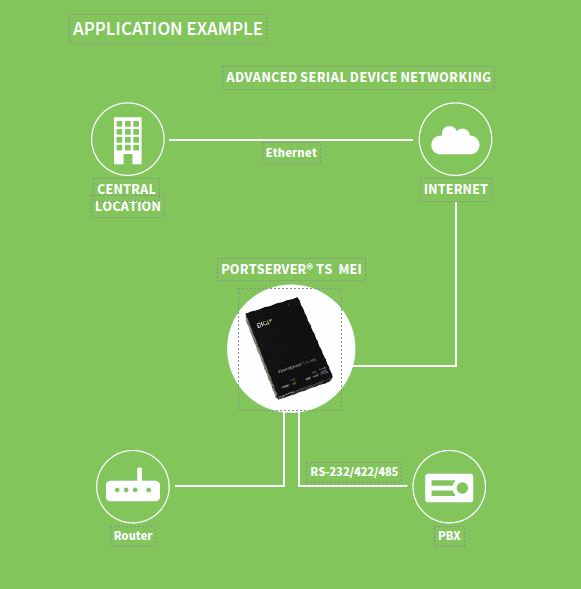

PORTSERVER TS MEI- Serial to Ethernet- Diagram





PortServer TS Applications

  • Components for Medical Devices
  • Outpatient Care Devices
  • Precision Agriculture
  • Manufacturing Automation
  • C&I Metering
  • Digital Oil Field
  • Smart Grid
  • Tank Monitoring
  • Water & Wastewater





Product Specifications




Specifications PortServer TS 1 MEI PortServer TS 2 MEI PortServer TS 4 MEI
Features
Management HTTP/HTTPS, CLI, SNMP (read/write), Digi Port Authority - Remote management diagnostics and auto-discovery tool
Protocols UDP/TCP, DHCP/RARP/ARP-Ping for IP Address assignment, Extended Telnet RFC 2217, Telnet, PPP Reverse Telnet, Modbus to Modbus/TCP protocol conversion support, Reverse SSH
Software Supports Digi’s Realport® COM port redirector
Status LEDs Link, Activity, Power, Status
Dimensions
(L x W x D)
13.34 cm x 8.46 cm x 2.42 cm (5.25 in x 3.33 in x 0.95 in)
Weight 64.00 g (2.25 oz)
Security SSHv2, SSL/TLS
Operating Systems Microsoft Windows® 7, 8, 8.1, 10 and Windows Server® 2012, 2016, 2019; and Linux®
Note: TCP/UDP socket services are operating system independent.
Other Full modem and hardware flow control, Modem emulation, Port buffering, RJ45-DB-9F console adapter included for optional serial configuration
Interfaces
Serial
Ports 1 RS-232/422/485 RJ-45 (switch-selectable); Up to 230 Kbps throughput; Signal support for TXD, RXD, RTS, CTS, DTR, DSR, DCD 2 RS-232/422/485 RJ-45 (switch-selectable); Up to 230 Kbps throughput; Signal support for TXD, RXD, RTS, CTS, DTR, DSR, DCD 4 RS-232/422/485 RJ-45 (switch-selectable); Up to 230 Kbps throughput; Signal support for TXD, RXD, RTS, CTS, DTR, DSR, DCD
Ethernet
Ports 1 RJ-45 10/100 Mbps 10/100Base-T (auto-sensing); Full or half-duplex
Power Requirements
Power Input 9-30 VDC with locking barrel power connector
Power Supply (Included) 12 VDC/a.5A max out; 100-240 VAC 50-60 Hz in (wall mount)
Power Supply 12 VDC extended temperature power supply sold separately
Power Consumption Typical: 4 W; Max: 6 W
Product Surge Protection (ESD) 4 kV burst (EFT) per EN61000-4-4, 2 kV surge transient per EN61000-4-5
Environmental
Operating Temperature 0° C to 60° C (32° F to 140° F)
Storage Temperature -40° C to 85° C (-40° F to 185° F)
Relative Humidity 5% to 95% (non-condensing)
Ethernet Isolation 1500 VAC min per IEEE802.3/ANSI X3.263
Serial Port Protection (ESD) 15 kV human body model
Regulatory Approvals
Safety UL/CUL 60950, IEC 60950 & CB
Emissions/Immunity CE, FCC Part 15 (Class A), EN55024, EN55022 Class A, AS/NZS 3548, CISPR 22, VCCI V-3/99.05


PortServer TS MEI - Front
portserver mei lineart 1 - Digi

PortServer TS MEI - Back
portserver mei lineart 4 - Digi









DATASHEETS


Data Sheet:  PortServer TS MEI
