Digi XBee Zigbee Gateway
Programmable IoT gateway
Programmable gateway connects Digi XBee devices
The programmable gateway connects Digi XBee devices to cloud-based applications over cellular, Wi-Fi, or Ethernet.
Digi XBee Gateway provides a low-cost Digi XBee to IP solution, featuring scalable remote configuration and management of Digi XBee networks with Digi Remote Manager® (Digi RM). By default, all Digi XBee data sent to the gateway is automatically available to online applications via Digi RM.
With a simple, open-source Python development environment, this gateway also enables custom applications to run locally while interfacing across existing Ethernet/Wi-Fi/cellular networks for WAN connectivity to cloud-based software applications.
Digi XBee Gateway products can be managed remotely via Digi RM, allowing users to remotely manage thousands of deployed devices, supporting features like remote firmware upgrades and event alarms.
Digi XBee Gateway can be tested and developed using the Digi XBee ZigBee Cloud Kit, which fully integrates the Digi XBee Gateway, Digi XBee Module, Digi RM, and a sample web application into a cohesive internet-connected solution. This kit is a powerful tool that enables developers to create internet-connected prototypes in 30 minutes or less.
Key Features
- Open-Source Python environment for custom application development on the gateway
- Out-of-box integration with Digi Remote Manager® enables remote connectivity, configuration, and management of Digi XBee® networks
- Secure, scalable access to an unlimited number of remote Digi XBee-based devices
- Cellular, Wi-Fi, and Ethernet WAN options for flexible broadband connectivity
- Out-of-the-box compatibility with Digi hardware
- Easy application integration and open APIs
- No costly infrastructure to operate or maintain
- Multi-tenant, cloud-based architecture
- Manage devices en masse– Two-way device to cloud communication– Asynchronous event updates and alerts
- Reliable, scalable, and secure
- Broadcast network-grade serviceability, operating 99.9% or greater– Dedicated Security Office
- Dedicated Security Office

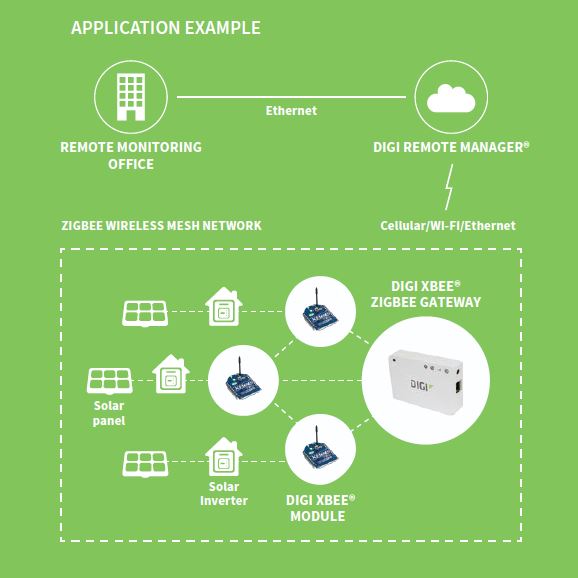

How it Works
Digi XBee Zigbee Gateway Applications
- Oil and gas
- Water/wastewater
- Solar
- Agriculture
- Other industrial applications.
Product Specifications
| Specifications | Digi XBee Gateway | Digi XBee Cellular Gateway |
| General | ||
| Management | Secure enterprise management via Digi Remote Manager® | |
| Protocols | UDP/TCP, DHCP | |
| LEDs | Power, network (LAN/WAN), ZigBee (HAN/PAN) | Power, network (LAN/WAN), ZigBee (HAN/PAN), cellular signal strength |
| Security | SSL tunnels, WEP-40, WEP-104, WPA/WPA2, Authentication with PSK and EAP | SSL tunnels, cellular network security |
| Dimensions (L x W x H) | 7.62 cm x 7.62 cm x 2.54 cm (3 in x 3 in x 1 in) | 7.62 cm x 10.16 cm x 2.54 cm (3 in x 4 in x 1 in) |
| Development | ||
| Python Version | 2.7.1 | |
| Digi XBee Gateway Application | Digi XBee® data sent to the gateway is automatically available to online applications via Digi Remote Manager | |
| Processor and Memory (Varies by firmware and OS version) |
Freescale i.MX28, 20 MB RAM, 10 MB file space | |
| ZigBee | ||
| ZigBee Stack | Zigbee PRO Feature Set, Ember EM357 | |
| ZigBee Module | Digi XBee ZB SMT (S2C) | |
| Transmit Power/Receive Sensitivity | Worldwide version: Digi XBee ZB SMT transmit power 6.3 mW (+8 dBm); receiver sensitivity (1% PER) -102 dBm; North American version: Digi XBee-PRO® ZB SMT transmit power: 63 mW (+18 dBm); receiver sensitivity (1% PER) -102 dBmP |
|
| Cellular | ||
| Cellular Module | N/A | Telit 910 Series |
| GSM Bands | N/A | 800/850/900/AWS/1900/2100 MHz 3G/UMTS |
| CDMA Bands | N/A | 800/1900 MHz 1x RTT |
| Wi-Fi | ||
| 802.11 | b/g/n | N/A |
| Data Rate | Up to 72.2 Mbps | N/A |
| Transmit Power | 18 dBm typical (varies by mode, channel, and region) | N/A |
| Receiver Sensitivity | Up to -87 dBm @ 11 Mbps | N/A |
| Modes | AP client modes only; access point mode not supported | N/A |
| Ethernet | ||
| Ports | 1 RJ-45 port | |
| Physical Layer | 10/100 Base-T | |
| Routing | Ethernet port designed for configuration and WAN backhaul | |
| Power Requirements | ||
| Power Supply | 5 VDC power supply with barrel connector included | |
| Power Consumption | Typical: 1.2 W, Max: 2.5 W | Typical: 3.5 W, Max: 15 W |
| Environmental | ||
| Operating Temperature | 0° C to 40° C (32° F to 104° F) | |
| Relative Humidity | 5% to 95% (non-condensing) | |
| Regulatory Approvals | ||
| Mobile Certifications (GSM) | N/A | AT&T |
| Mobile Certifications (CDMA) | N/A | Verizon and Sprint |
| Safety | UL 60950-1, CSA C22.2 and EN 60950-1 | |
| Emissions/Immunity/Transmitter | CE, FCC Part 15 (Class B), IC, ETSI | |
| Warranty | ||
| Product Warranty | 3-year | |
DATASHEETS
Data Sheet: Digi XBee Zigbee Gateway
