Digi Connect Sensor+
Cellular Industrial Gateway
Weatherproof Enclosed Sensor
Easy-to-install and roll-out ready, battery-powered cellular gateway solution.
Digi Connect® Sensor+ is a fully integrated, battery-powered cellular gateway with I/O for connecting to a wide range of external sensors. Designed to work in rugged industrial environments, the Connect Sensor+ is the ideal solution for companies looking to add remote monitoring and diagnostics in places where power is not easily available. Its easy installation, reliability, and low data usage make remote monitoring possible in areas where it was previously cost-prohibitive.
Local protocol support allows the Connect Sensor+ to communicate with Modbus sensors and capture sensor diagnostics along with data. This enables users to not only monitor their data but also remotely diagnose the health of their sensors.
Digi Connect Sensor+ leverages Digi Remote Manager® (Digi RM), enabling customers who need to monitor large numbers of sensors to easily integrate that data into existing applications or work with third-party applications. Gain critical insights into your deployed devices and manage your network with Digi RM — the command center for your deployment.
Digi Connect Sensor+ works with Digi Connect Wizard. This smartphone application is the first of its kind for this type of battery-powered gateway. It gives local installers, technicians, or drivers instant feedback of sensor values over Bluetooth®.
Key Features
- Weatherproof enclosure with a wide temperature range makes it ideal for use in all environments
- Configurable read and report intervals with threshold and delta alarms
- Multiple configurable I/O make it possible to connect to multiple sensor types
- Modbus protocol support
- External, configurable power outputs eliminate the need for sensor power supplies
- Global cellular coverage
- Digi Remote Manager® platform for easy management
How it Works

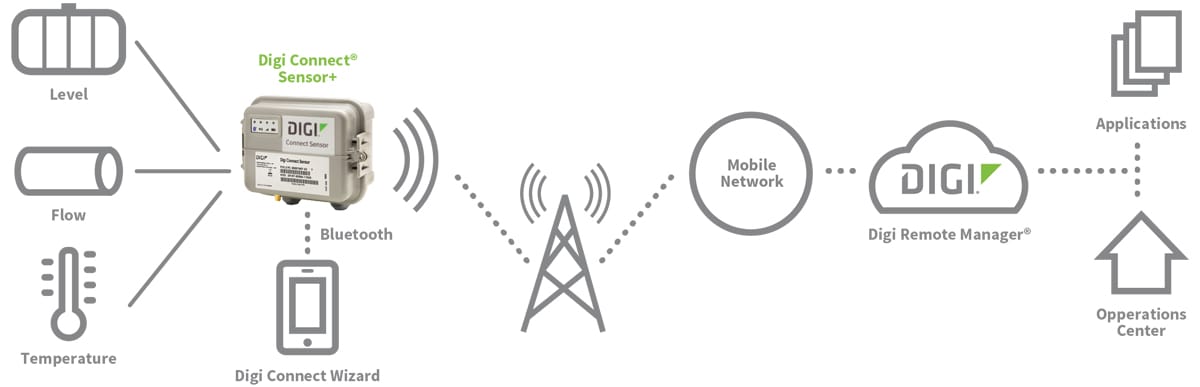

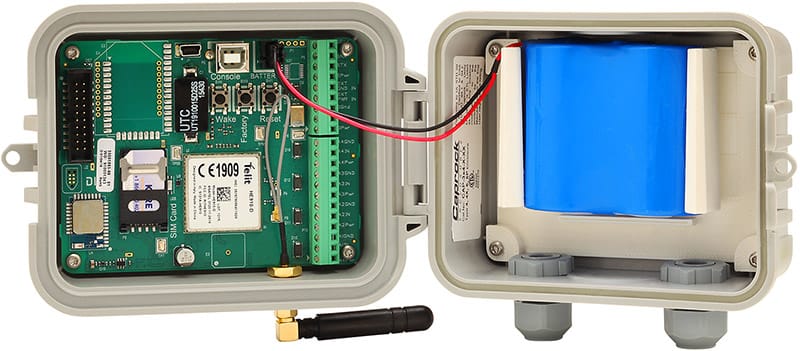

Digi Connect Sensor+ has four analog inputs that can be configured as either a 0-10VDC or 4-20mA current loop input. Each of these four analog inputs has a power output that can be enabled or disabled by the user. The power outputs have a configurable DC voltage level so the Digi Connect Sensor+ can power almost any sensor. Digi Connect Sensor+ also has a digital I/O which can be configured for any number of functions.
Beyond a simple digital input or output, the I/O can be configured to count pulses when connected to a mechanical switch or pulsed output meters. The Digital I/O can also be configured to wake the device out of sleep mode on a rising and/or falling edge. The Digital I/O, like the analog inputs, has its own DC power output.
Digi Connect Sensor+ Series Applications
- Precision Agriculture
- Manufacturing Automation
- Digital Oil Field
- Tank Monitoring
- Water & Wastewater
Product Specifications
| Digi Connect Sensor+ | |
| WWAN | |
| 2G BANDS | GSM 850, GSM 900, DCS 1800, PCS 1900 |
| 3G BANDS | FDD B1, B2, B4, B5, B8 |
| LTE CATEGORY 1 | Verizon: bands 2, 4, 13 AT&T, T-Mobile: bands 2, 4, 5 with 3G/2G fallback |
| ANTENNA CONNECTOR | External SMA |
| SIM SLOTS | 1, standard size |
| MANAGEMENT | |
| CONFIGURATION AND MANAGEMENT | Digi Remote Manager (cloud-based); local USB to serial CLI |
| POWER (Does not include power draw of external sensors) | |
| EXTERNAL POWER INPUT RANGE | 8 VDC to 30 VDC |
| BATTERY AND BATTERY LIFE | 7.2 V, 14.5 Ah, Lithium thionyl chloride, non-rechargeable, replaceable; Approximately 2 years (@ 2 reads/transmits per day) |
| POWER DRAW, SLEEPING | 86.4 uW |
| POWER DRAW, CONTINUOUS MONITOR | 400 mW |
| POWER DRAW, PEAK TRANSMIT | 14.4 Watts |
| SENSOR PROTOCOL SUPPORT | |
| MODBUS | MODBUS RTU AND ASCII, Connect to up to 4 devices |
| ANALOG I/O | |
| INPUTS | 4, Configurable as 4/20 mA or 0-10 VDC Analog inputs |
| INPUT VOLTAGE RANGE | 0-10.5 V (Analog input) |
| INPUT CURRENT RANGE | 4-22 mA (Current loop input) |
| INTERNAL A/D CONVERTER | 12 bit |
| DIGITAL I/O | |
| PORTS | 1 digital I/O or pulse counter input |
| INPUT RANGE | 0-0.6 VCD logic low; 2.2 V-30 VDC logic high |
| MAX INPUT VOLTAGE | 30 VDC |
| MAX PULSE COUNT FREQUENCY | 2 KHZ |
| DIGITAL OUTPUT | Open collector output, max sink current 450 mA |
| OUTPUT POWER | |
| PORTS | 5 |
| OUTPUT VOLTAGE OPTIONS | 3.3, 5, 15, 24 VDC |
| MAX CURRENT OUTPUT | 200 mA |
| ENVIRONMENTAL | |
| OPERATING TEMPERATURES | -35˚ C to +70˚ C (-31˚ F to 158˚ F) |
| STORAGE TEMPERATURE | -40˚ C to 85˚ C (-40˚ F to 185˚ F) |
| RELATIVE HUMIDITY | 90% |
| BATTERY DISCHARGE | <1%/year if stored at 30˚ C (86˚ F) |
| PHYSICAL | |
| DIMENSIONS (L x W x H) | 152.4 mm x 108.4 mm, 127 mm including glands, x 74.6 mm (6 in x 4.27 in, 5 in including glands, x 2.94 in) |
| WEIGHTS | 264 g (0.58 lb) |
| LEDS INDICATORS | Battery, cellular, sensor and Bluetooth® |
| ENCLOSURE | Lexan/IP66 |
| REGULATORY APPROVALS | |
| SAFETY | UL60950-1, CAN/CSA C22.2 No. 60950-1-01, IEC 60950-1:2005 (Second Edition); Am1:2009 + Am2:2013, EN 60950-1:2006 / A11:2009 / A1:2010 / A12:2011 / A2:2013 and EN 60950-22:2006; Class 1, Division II, groups A,B,C,D; ANSI/ISA 12.12.01:2015,CAN/CSA C22.2 No 213-15, 1st Ed ATEX EN 60079-0:2012+A11:2013, EN 60079-15:2010, eII 3 G Ex nA nC IIC T6 Gc |
| EMISSIONS | FCC part 15 Subpart B class B, EN55022: 2010/AC: 2011 class B, IECS-003 Issue 5: 2012 class B |
| IMMUNITY | EN55024:2010 |
| WARRANTY | |
| PRODUCT WARRANTY | 3-year* |
