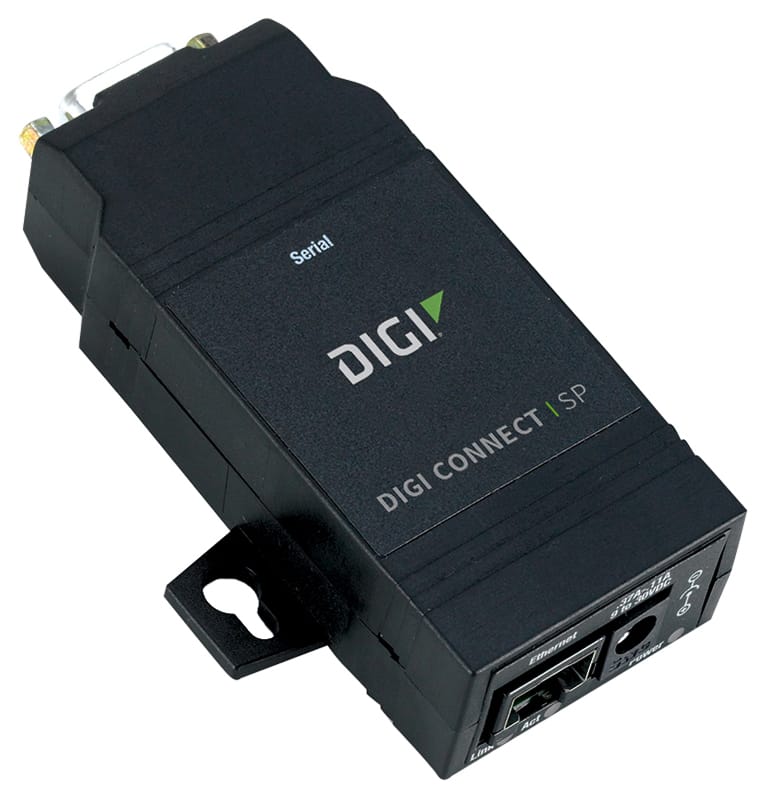

Digi Connect SP
Compact Serial-to-Ethernet Connectivity for plug and play or embedded networking
Switch Selectable Expansion for Asynchronous Connectivity in a Compact Case
A compact serial server delivers a powerful off-the-shelf hardware platform for standard plug-and-play applications or embedded networking solutions.
More and more, electronic devices used in all types of commercial applications are being network-enabled so that data from those devices can be accessed, evaluated, and utilized in real-time. The Digi Connect® SP device server is a simple and cost-effective solution for migrating electronic devices to this emerging world of networked device collaboration.
Built on Digi’s 32-bit NET+ARM technology, the Digi Connect SP provides a powerful off-the-shelf hardware platform for standard plug and play device networking as well as custom network applications. The award-winning NET+ARM architecture provides a seamless migration path to embedded modules and a fully-integrated system-on-a-chip solution.
The Digi Connect SP also provides an easy user interface, product customization options, intelligent remote management and monitoring capabilities through Digi Remote Manager®, full IPv6 support, and standard management interfaces including SNMP.
Customizable Firmware Models
The Digi Connect® SP device server is the ideal platform for custom web- and network-enabled applications. It eliminates the hardware design effort and delivers a true device networking solution that is powerful enough to meet your future performance requirements. Based on Digi’s NET+OS® development platform, it delivers the integrated building blocks and tools to quickly and cost-effectively create flexible and secure embedded applications for integrated, high-performance web and networking solutions.
Standard Firmware Models
The Digi Connect SP delivers a true plug-and-play device networking solution that combines a compact form factor with proven serial port connectivity. Compared to the similarly-sized Digi One® SP, the Digi Connect SP provides a more extended operating temperature range, IPv6 support, the ability to issue automated email alerts and SNMP traps, and unique product customization capabilities. These and other features make the Digi Connect SP an attractive solution for a broad range of applications in retail/POS, manufacturing, building security, government, and medical.
.
Key Features
- The off-the-shelf hardware platform for standard or custom network applications
- Compact enclosure design with integrated mounting tabs
- RS-232 or switch-selectable RS-232/422/485
- Flexible 9-30 VDC power input
- Product customization options
- SSL/TLS with NIST-certified AES encryption for security-sensitive environments
- Digi’s patented RealPort® with encryption for COM/ TTY port redirection and control
- Support for IPv6, SNMP, SSHv2, and Digi Remote Manager®

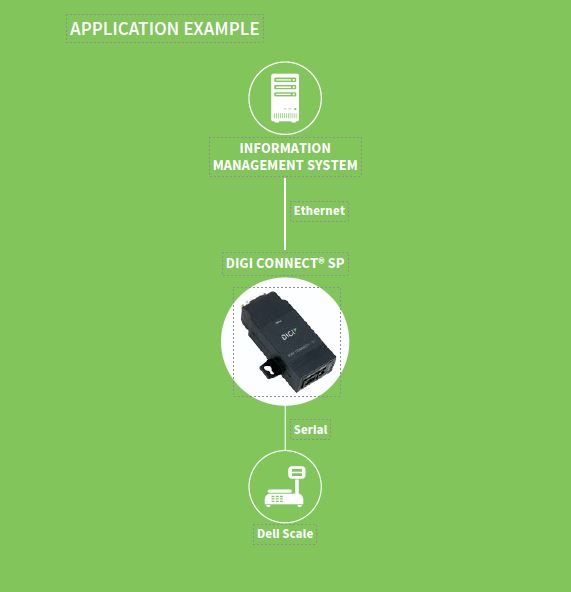

How it Works
Digi One SP Applications
- Components for Medical Devices
- Outpatient Care Devices
- Manufacturing Automation
- Smart Grid
- Water & Wastewater
Product Specifications
| Specifications | Digi Connect SP |
| HARDWARE | |
| PROCESSOR TYPE | 32-bit NS7520 |
| PROCESSOR SPEED | 55 MHz |
| MEMORY BASE POPULATION | 4 MB Flash / 16 MB RAM |
| LEDS | Network link, Ethernet activity, power (red) |
| DIMENSIONS (L X W X H) | 9.846 cm x 4.267 cm x 2.537 cm (3.876 in x 1.680 in x 0.999 in) |
| WEIGHT | 6.50 g (2.29 oz) |
| SOFTWARE | |
| SOFTWARE | Digi Remote Manager®; patented RealPort® COM port redirector (server initiated or device initiated); SNMP |
| OPERATING SYSTEMS | Microsoft Windows® 7, 8, 8.1, 10 and Windows Server® 2012, 2016, 2019; and Linux® |
| INTERFACES | |
| SERIAL | RS-232 or switch-selectable RS-232/422/485 serial interface (DB-9M connector); throughput up to 230,400 bps; 5/6/7/8 data bits; 1/1.5/2 stop bits; none/even/odd parity; full signal support with software/hardware flow control |
| ETHERNET | Auto-sensing 10/100 Mbit Ethernet interface and network link |
| POWER REQUIREMENTS | |
| POWER INPUT | 9-30 VDC @ 370 mA |
| POWER SUPPLY (INCLUDED) | North America: 120 VAC; International: 90-264 VAC |
| ENVIRONMENTAL | |
| OPERATING TEMPERATURE | 0º C to 60º C (32º F to 140º F) |
| STORAGE TEMPERATURE | -40º C to 90º C (-40º F to 194º F) |
| RELATIVE HUMIDITY | 5% to 90% (non-condensing) |
| ALTITUDE | 3,658 meters (12,000 feet) |
| REGULATORY APPROVALS | |
| SAFETY | CSA 22.2 NO. 60950, EN 60950, UL60950 |
| EMISSIONS/IMMUNITY | FCC Part 15 Class A, EN55022, EN5J024, VCCI, AS 3548 |
