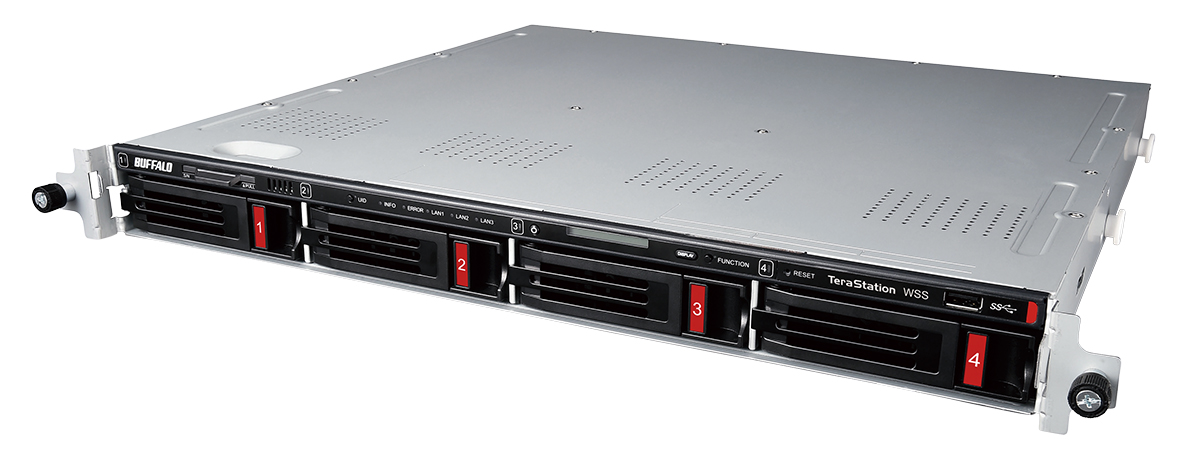

TeraStation WS5020 Series

Rackmount NAS




Get Serious About Protecting Your DataTerastation WS5020 Series - NAS - Pulse Supply

TBuffalo’s TeraStation™ WS5020 series is a reliable Network Attached Storage solution integrated with Windows Storage Server 2016 (pre-tested NAS-grade hard drives included). This specialized operating system helps simple deployment and management of your growing storage demands as it integrates seamlessly with your existing Windows-based environment.

WS5020 is an ideal solution for consolidating multiple file servers into a single solution that enables cost reduction and lowering of the overhead on your existing servers for other workloads.

With the powerful Intel® Atom™ processor and 8 GB of installed RAM with ECC, the TeraStation™ WS5020 series provides class-leading performance and enables the ability to focus on concurrent tasks with minimal performance degradation. TeraStation™ WS5020 series features native 10GbE connectivity and achieves increased reliability by populating with hard drives built specifically for always-on NAS devices. Additionally, support for NTFS for very specific file-level security and native Active Directory support provides integration with large Windows® networks.









Features:Terastation WS5020 - NAS - Pulse Supply

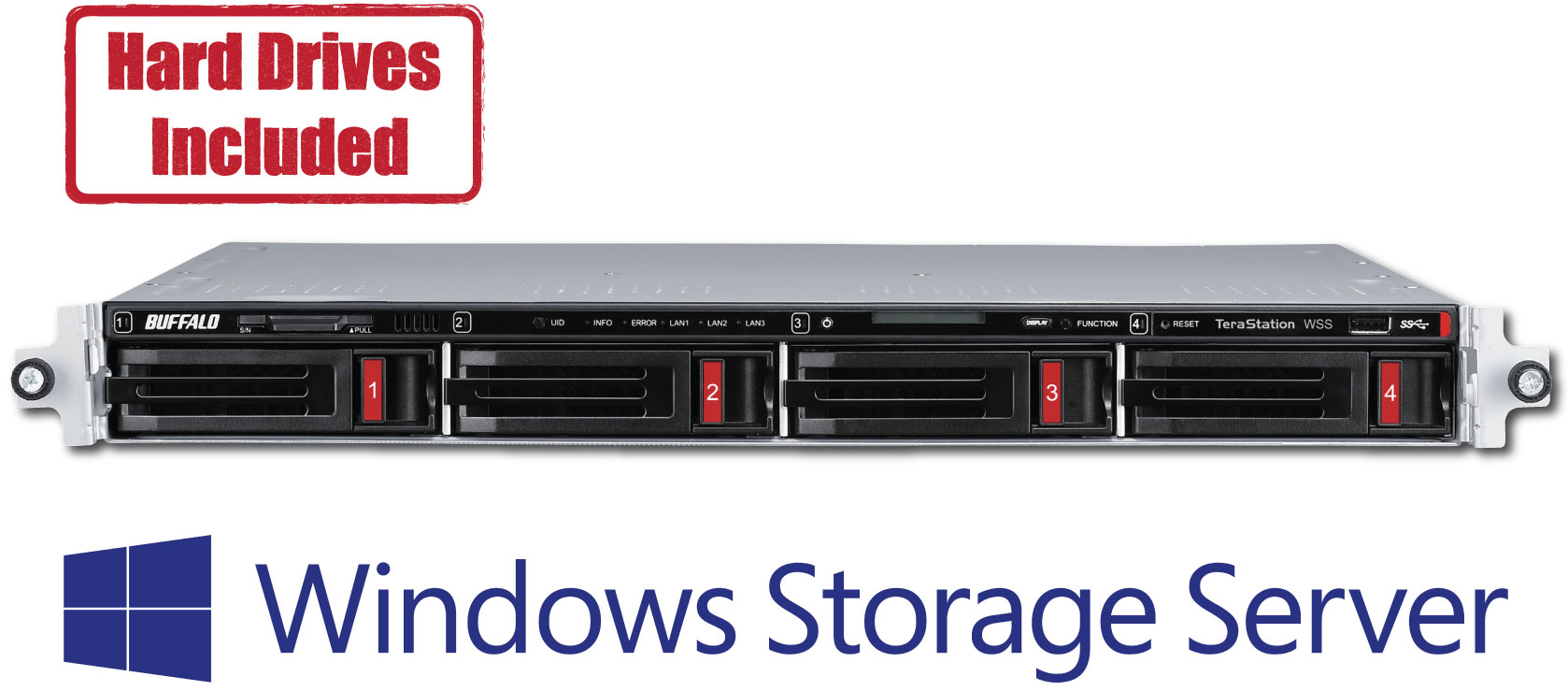

  • Pre-tested NAS-grade hard drives included with RAID pre-configured
  • 3-year warranty with 24/7 North America-based support (Optional Extended Warranty)
  • Windows® Storage Server 2016 Workgroup/Standard Edition
  • No CAL (Client-Access Licenses) required. Cost-effective storage solution to make full use of existing Windows-based environments
  • Efficient and high-speed backup with deduplication feature/native 10GbE port/8GB ECC memory
  • Supports a variety of backup and features [Shadow Copy/Azure Backup]
  • Highly secured with the latest SMB protocol support (3.1.1)
  • Business-level sever/PC backup NovaBACKUP® software bundled
  • Made in Japan / TAA compliant





Specifications

Terastation WS5020 Series- NAS - Pulse Supply







MODELS





WS5420RN

Part Numbers                   

WS5420RN16S6
WS5420RN32S6

      



INTERNAL HARD DRIVES



Number of Drive Bays 4
Number of Included Drives                    4
Capacity Range 16, 32 TB
Drive Interface SATA 6 Gbps
Supported RAID   0/1/5/JBOD (Individual Disks) (Default 5)



USB INTERFACE



Standards Compliance USB 3.0
Connector Type A type
Number of Ports 3x USB 3.0
Data Transfer Rates 5 Gbps



PERFORMANCE



CPU                 Intel Atom C3338
Memory 8GB DDR4 with ECC



ENVIRONMENTAL & POWER



Power Consumption                   

Max 100W

Data Transfer 61.7W

Idling 58.7W

Standby 4.9W

Power Supply Internal AC 100-240V Universal 50/60Hz
Operating Temperature 32˚ - 104˚F (0˚ - 40˚C)
Operating Humidity 10 - 85% non-condensing



SHIPPING



Product Dimensions
(L x W x H)                 
16.9 x 16.9 x 1.7 in
Product Weight 19.2 lbs
Package Dimensions (L x W x H) 23.0 x 21.3 x 7.9 in
Package Weight 28.7 lbs

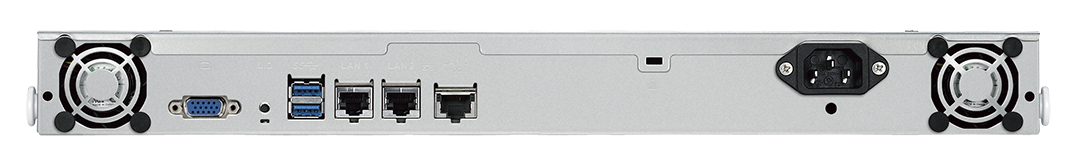

LAN INTERFACE



Standards Compliance  IEEE802.3an (10GBASE-T), IEEE802.3bz (5GBASE-T/2.5GBASE-T), IEEE802.3ab (1000BASE-T), IEEE802.3u (100BASE-TX), IEEE802.3 (10BASE-T)
Number of Ports 1 (10GBASE-T), 2 (1000BASE-T)
Data Transfer Rates 10 Gbps / 1000 Mbps / 100 Mbps / 10 Mbps
Supported Protocols TCP/IP
Network File Services CIFS/SMB, AFP, FTP, SFTP, NFS, SNMP
Connector Type RJ-45



OTHER



Client OS Support 

Windows® 10
Windows® 8.1 (32-bit/64-bit)
Windows® 7 (32-bit/64-bit)
Windows Server® 2016
Windows Server® 2012R2
Windows Server® 2012
Windows Server® 2008R2
Windows Server® 2008
Mac® OS® X 10.11 or later

Compatible Hard Drives

OP-HD2.0N, OP-HD4.0N, OP-HD6.0N, OP-HD8.0N

Optional Warranties KYD (3YKYD30/5YKYD30)
NBD (3YNBD20/5YNBD30)
Included Software NAS Navigator2, NovaBACKUP® Buffalo Edition (one server and ten workstation licenses)
Box Contents

TeraStation WS5420RN
AC Cable
6a Ethernet Cable
Front Panel Key
Warranty Statement
Quick Setup Guide
Setup Media (SD CARD)
Rail Kit with Mounting Brackets and Screws
