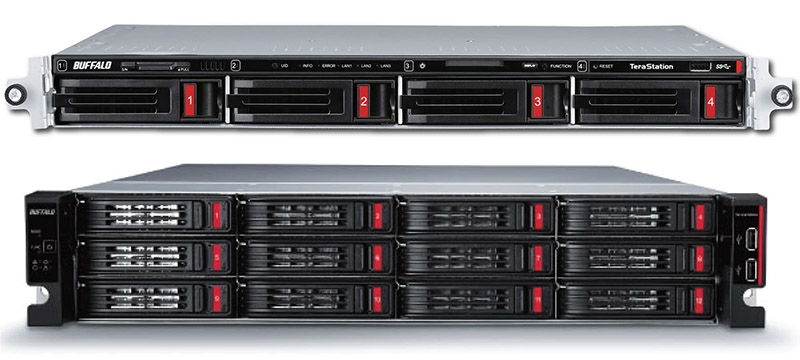

TeraStation 5010 Series

Rackmount NAS




High-Performance Storage Defense Against Cyber Threats +Snapshot - Hard Drives IncludedTerastation 5010 - NAS - Pulse Supply

The TeraStation 5010 is a high performing business-class network-attached storage (NAS) featuring powerful processing power and native 10GbE support. Accelerate speed and overall performance with business class processing power supporting 100 concurrent sessions with sustained performance even during heavy-load operations. The TS5010 family comes with NAS/ Enterprise-grade hard drives* included with partially populated models to fit today's needs while planning for tomorrow's storage concerns. Partially populated models include 4 & 8 bay desktop and 4 & 12 bay rackmount units.

TeraStation 5810DN is an eight-bay desktop system featuring a native 10GbE port. Base models ship with NAS-grade hard drives allowing future scalability. Users with defined storage needs can order fully populated models with eight NAS-grade hard drives up to 64TB of storage capacity. TeraStation 51210RH is a 2U rackmount system offering scalability. Base models ship with four enterprise-grade hard drives allowing users to meet future storage demands by simply adding additional hard drives. Users with defined storage needs have the ability to select fully populated systems with twelve enterprise-grade hard drives included up to 192TB total storage capacity. TeraStation 51210RH includes dual 10GbE ports and a rail kit for easy deployment.



Features:Terastation 5010 - NAS - Pulse Supply



  • Premium grade components (NAS & Enterprise-grade hard drives)
  • Up to 2 native 10GbE ports*
  • Quad-core Annapurna processor
  • Industrial-grade internal power supply
  • Premium metal chassis with Kensington security slot and front panel lock*
  • Boot Authentication - locks device until authenticated on the network in case of theft
  • Duplex Firmware for reduced system downtime
  • Pre-configured RAID enabled systems
  • VMware certified (iSCSI & NFS certifications)*
  • 3rd party cloud integration for hybrid cloud
  • Up to 192TB Capacity
  • 256 bit AES encryption for data security
  • 24/7 North American based support
  • Novastor Business Essentials server and workstation licensing
  • Use cases include: Virtualized storage target, Offsite disaster recovery, and File sharing & local backup



*TS5210DN, TS5410DN, TS5810DN, and TS5410RN ship with NAS-grade hard drives. TS51210RH ships with enterprise-grade hard drives and two native 10GbE ports.
*TS5210DN, TS5410DN, TS5810DN include Kensington security slot and front panel lock



Specifications

Terastation 5010 - NAS - Pulse Supply







MODELS





TS5410RN

TS51210RH

Part Numbers

TS5410RN0802
TS5410RN0804
TS5410RN1602
TS5410RN1604
TS5410RN2404
TS5410RN3204

TS51210RH1604
TS51210RH3204
TS51210RH4004
TS51210RH4804
TS51210RH6404
TS51210RH4812
TS51210RH9612
TS51210RH12012
TS51210RH14412
TS51210RH19212



INTERNAL HARD DRIVES



Number of Drive Bays 4 12
Number of Included Drives 2 or 4 4 or 12
Capacity Range 8, 16, 24, 32 TB 16, 32, 40, 48, 64, 96, 120, 144, 192 TB
Drive Interface SATA 6 Gbps SATA 6 Gbps
Supported RAID 0/1/5/6/10/JBOD (Individual Disks) 0/1/5/6/10/JBOD (Individual Disks)



USB INTERFACE



Standards Compliance USB 3.0 USB 3.0 / USB 2.0
Connector Type A type A type
Number of Ports 3x USB 3.0 2x USB 3.0
2x USB 2.0
Data Transfer Rates 5 Gbps 5 Gbps / 480 Mbps



PERFORMANCE



CPU Annapurna Labs® Alpine Processor
AL314 (1.7 GHz Quad-Core)
Annapurna Labs® Alpine Processor
AL314 (1.7 GHz Quad-Core)
Memory 4 GB DDR3 with ECC 8 GB DDR3 with ECC



ENVIRONMENTAL & POWER



Power Consumption

Max 100W

Data Transfer 60W

Idling 46W

Max 500W

Data Transfer 122W

Idling 100W

Power Supply Internal AC 100-240V Universal 50/60Hz Internal AC 100-240V Universal 50/60Hz
Optional dual power supply available
Operating Temperature 32˚ - 104˚F (0˚ - 40˚C) 32˚ - 104˚F (0˚ - 40˚C)
Operating Humidity 10 - 85% non-condensing 10 - 85% non-condensing



SHIPPING



Product Dimensions
(L x W x H)
16.93 x 16.93 x 1.74 in 29.01 x 18.94 x 3.46 in
Product Weight 18.52 lbs 41.67 - 53.13 lbs
Package Dimensions (L x W x H) 23.03 x 21.26 x 7.87 in 38.50 x 22.91 x 10.16 in
Package Weight 23.37 lbs 63.05 - 74.03 lbs



LAN INTERFACE



Standards Compliance IEEE802.3an (10GBASE-T), IEEE802.3bz (5GBASE-T/2.5GBASE-T), IEEE802.3ab (1000BASE-T), IEEE802.3u (100BASE-TX), IEEE802.3 (10BASE-T)
Number of Ports 1 (10GBASE-T)*, 2 (1000BASE-T)
*TS51210RH includes an additional 10GBASE-T port
Data Transfer Rates 10 Gbps / 1000 Mbps / 100 Mbps / 10 Mbps
Supported Protocols TCP/IP
Network File Services CIFS/SMB, AFP, FTP, SFTP, NFS, SNMP
Connector Type RJ-45



OTHER



VMware Compatibility iSCSI & NFS

Client OS Support

Windows® 10, Windows® 8.1 (32-bit/64-bit), Windows® 7 (32-bit/64-bit), Windows Server® 2016, Windows Server® 2012, Windows Server® 2012R2, Windows Server® 2008,
Windows Server® 2008R2, Mac® OS® X 10.9 or later
Compatible Hard Drives OP-HD2.0N, OP-HD4.0N, OP-HD6.0N, OP-HD8.0N, OP-HD4.0H2U-5Y*, OP-HD8.0H2U-5Y*, OP-HD10.0H2U-5Y*, OP-HD12.0H2U-5Y*,
OP-HD16.0H2U-5Y*
*TS51210RH only
Additional Power Supply OP-PU-10R2UWR (TS51210RH ONLY)
Optional Warranties 3YNBD20 - 3yr Next Business Day, 3YNBD10 - 3yr Next Business Day, 3YKYD40 - 3yr Keep Your Drive, 3YKYD30 - 3yr Keep Your Drive, 3YKYD20 - 3yr Keep Your Drive, 3YKYD10 - 3yr Keep Your Drive, 5YNBD40 - 5yr Next Business Day, 5YNBD30 - 5yr Next Business Day, 5YNBD20 - 5yr Next Business Day, 5YNBD10 - 5yr Next Business Day, 5YKYD40 - 5yr Keep Your Drive, 5YKYD30 - 5yr Keep Your Drive, 5YKYD20 - 5yr Keep Your Drive, 5YKYD10 - 5yr Keep Your Drive
Included Software NASNavigator2, NovaBACKUP® Buffalo Edition (one server and ten workstation licenses)
Box Contents TeraStation™, Quick Setup Guide, 6a Ethernet Cable, Rail Kit with Mounting Brackets and Screws, AC Cable, Front Panel Key**, and Warranty Statement
