TeraStation WSH5610DNS6 Desktop Series

Live Search

Tel: 410-583-1701     Email: Sales & Technical

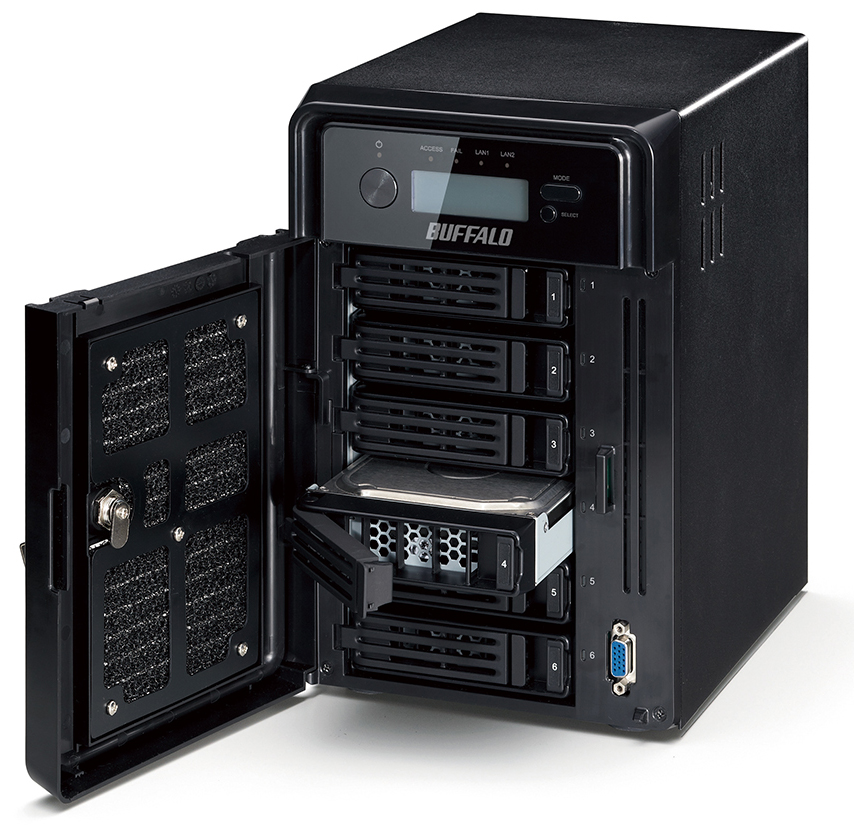

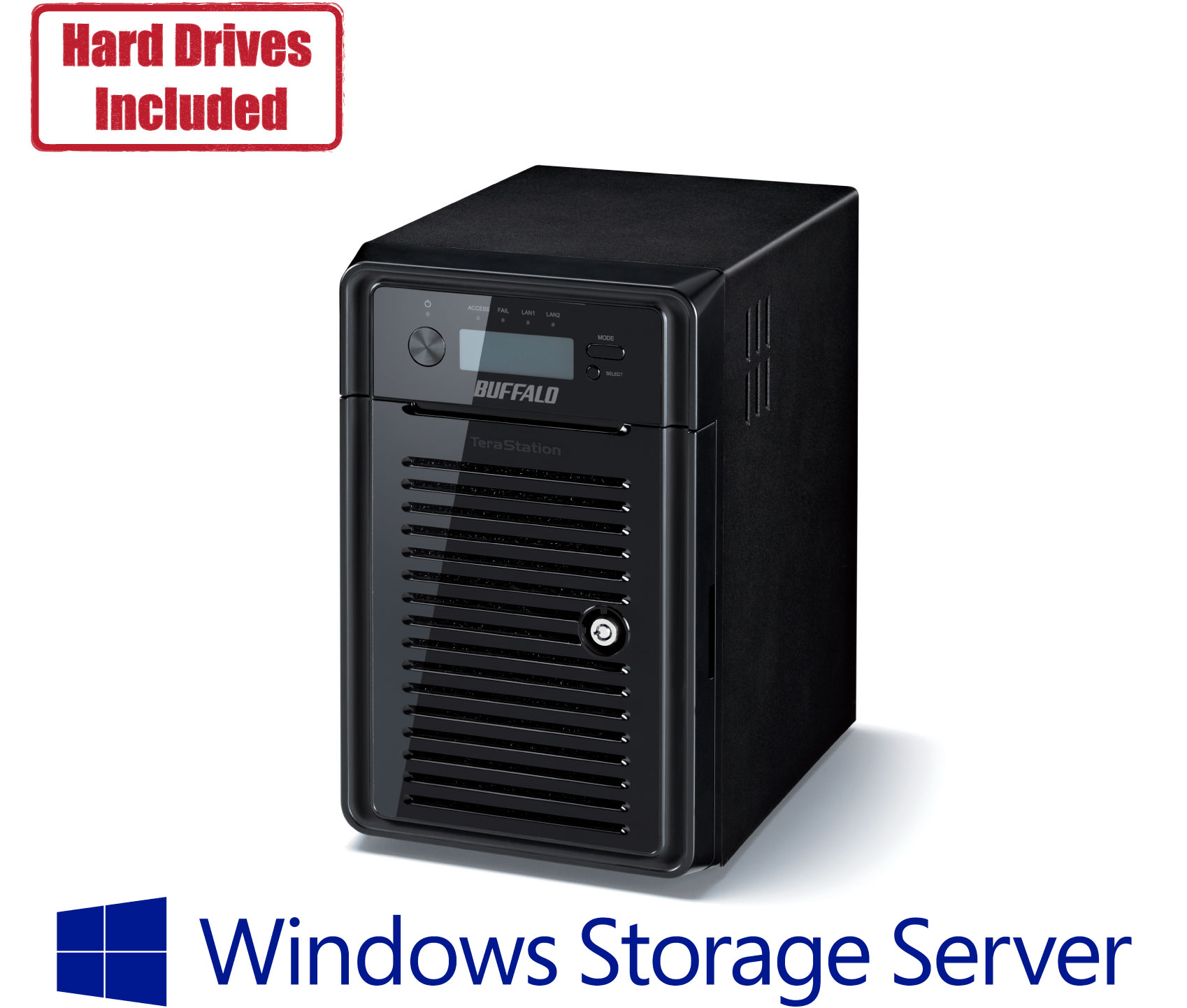

TeraStation WSH5610DNS6 Series

Desktop NAS




Get Serious About Protecting Your DataTerastation WSH5610DNS6 Series - Desktop NAS - Pulse Supply

TeraStation WSH5610 is a robust and reliable Network Attached Storage solution integrated with Windows Storage Server 2016 (pre-tested NASgrade hard drives included). This specialized operating system helps with the simple deployment and management of your growing storage demands to integrate seamlessly with your existing Windows-based environments.

WSH5610 comes with an independent RAID CPU, making it possible to protect your data with the more secure RAID 6 mode while keeping your data transactions fast and stable. This device is the ideal solution for consolidating multiple file servers into a single solution that enables cost reduction while lowering the overhead on your existing servers for other workloads.

Hardware RAID delivers added speed and stability. The specially-designed solution runs the operating system from an SSD drive of its own, which frees the HDD array for user data. Hardware RAID enables the WSH series to deliver outstanding performance unaffected by ‘heavy load’ operations, even during RAID rebuilding.









Features:Terastation WSH5610DNS6 - Windows Desktop NAS - Pulse Supply



  • Pre-tested NAS-grade hard drives included with RAID pre-configured
  • 3-year warranty with 24/7 North America-based support (Optional Extended Warranty)
  • 6-bay desktop NAS with Windows® Storage Server 2016 (Standard) and native integration with the Active Directory Service
  • No CAL (Client-Access Licenses) required. Cost-effective storage solution to make full use of existing Windows-based environments
  • Efficient & high-speed backup/ individual RAID CPU/Quad Core CPU with 8GB mem
  • Supports a variety of backup and features [Shadow Copy/Azure Backup]
  • Highly secured with the latest SMB protocol support (3.1.1)
  • Business-level server/PC backup NovaBACKUP® software bundled
  • Made in Japan / TAA compliant





Specifications

Terastation WSH5610DNS6 Windows Desktop Series- NAS - Pulse Supply









MODELS





WSH5610DN

Part Numbers                   

WSH5610DN12S6
WSH5610DN24S6
WSH5610DN48S6
     



INTERNAL HARD DRIVES



Number of Drive Bays 6
Number of Included Drives                    6
Capacity Range 12, 24, 48 TB
Drive Interface SATA 3Gbps
Supported RAID   HW RAID 0/1/5/6 (Individual Disks) (Default 6)



USB INTERFACE



Standards Compliance USB 3.0 / USB 2.0
Connector Type A type
Number of Ports 1x USB 3.0 / 2x USB 2.0
Data Transfer Rates 5 Gbps



PERFORMANCE



CPU                 Intel Celeron J1900
Memory 8GB DDR3



ENVIRONMENTAL & POWER



Power Consumption                   

Max 120W

Data Transfer 100W

Idling -W

Standby -W

Power Supply Internal AC 100-240V Universal 50/60Hz
Operating Temperature 41˚ - 95˚F (5˚ - 35˚C)
Operating Humidity 20 - 85% non-condensing



SHIPPING



Product Dimensions
(L x W x H)                 
10.2 x 6.7 x 9.1 in
Product Weight 19.8 lbs
Package Dimensions (L x W x H) 14.2 x 9.8 x 15.7 in
Package Weight 24.3 lbs

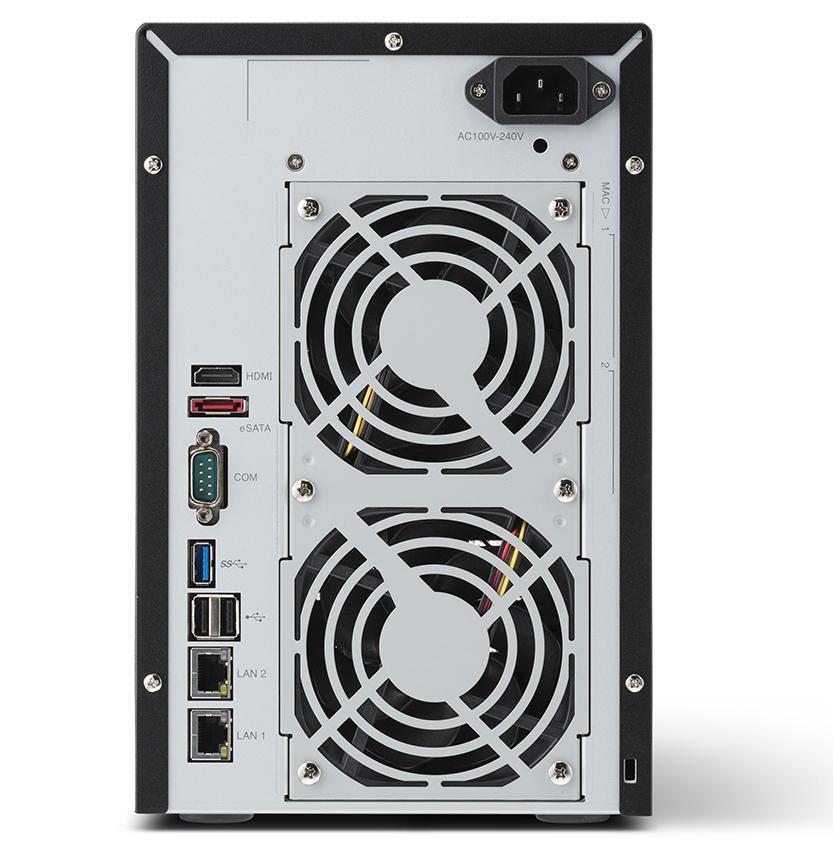

LAN INTERFACE



Standards Compliance  IEEE802.3ab (1000BASE-T), IEEE802.3u (100BASE-TX), IEEE802.3 (10BASE-T)
Number of Ports 2
Data Transfer Rates 1000 Mbps / 100 Mbps / 10 Mbps
Supported Protocols TCP/IP
Network File Services CIFS/SMB, AFP, FTP, SFTP, NFS, SNMP
Connector Type RJ-45



OTHER



Client OS Support 

Windows® 10
Windows® 8.1 (32-bit/64-bit)
Windows® 7 (32-bit/64-bit)
Windows Server® 2016
Windows Server® 2012R2
Windows Server® 2012
Windows Server® 2008R2
Windows Server® 2008
Mac® OS® X 10.11 or later

Compatible Hard Drives

OP-HD2.0BN/B, OP-HD4.0BN/B, OP-HD8.0BN/B

Optional Warranties KYD (3YKYD20/5YKYD20)
NBD (3YNBD20/5YNBD20)
Included Software NAS Navigator2, NovaBACKUP® Buffalo Edition (one server and ten workstation licenses)
Box Contents TeraStation WSH5610DNS6
AC Cable
Ethernet Cable
Front Panel Key
Warranty Statement
Quick Setup Guide
Setup Media (SD CARD)



Have more questions about Network Attached Storage products and solutions? Call us at 410-583-1701 or email us at questions@pulsesupply.com.
