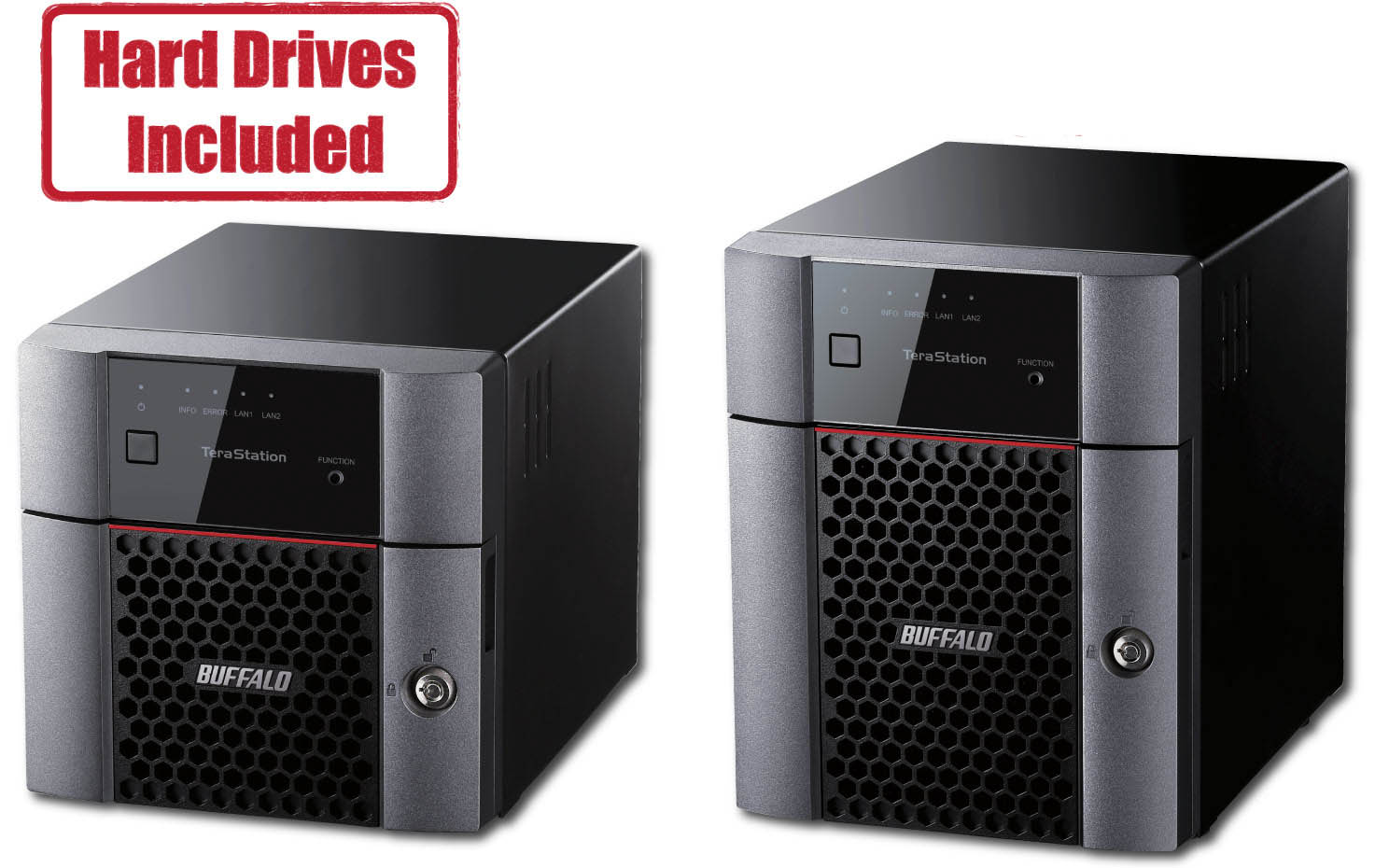

TeraStation 3010 Series

Desktop NAS




Get Serious About Protecting Your DataTerastation 3010 Desktop Series - NAS - Pulse Supply

The Buffalo TeraStation 3010 NAS series is designed for small businesses that want to take the next step in protecting their valuable business data. No more backing up to thumb drives or disks that get misplaced – it’s time to get serious about data. TeraStation 3010 family ships with NAS-grade hard drives included while the 4 bay rackmount & desktop models come in partially populated options to fit your needs of today while planning for tomorrow's storage concerns.

Designed for organizations around 25 users, the TS3010 series delivers the same features and functionality as more advanced NAS solutions from Buffalo. With the TS3010, small businesses can take advantage of the reliability and security typically reserved for enterprise-level organizations.

Instead of backing up to thumb drives and managing multiple tapes or external hard drives, TeraStation 3010 can automate your backup plan including local and cloud-based strategies. Automation saves you time, money, and ensures better results should you need to recover data. Optional data encryption as well as Buffalo’s integrated software ensures hard drive data cannot be accessed on systems other than your TeraStation. Physical security is addressed with an integrated Kensington security slot, drive bay panel lock, and Buffalo’s Boot Authentication software.

The out-of-box experience is simplified as TeraStation 3010 ships with NAS-grade hard drives preconfigured
in RAID. Designed for reliable operations in an always-on environment, NAS drives are much more stable and
reliable than standard desktop hard drives. TeraStation 3010 models qualify for Buffalo's Data Recovery
Service after product registration.



Features:Terastation 3010 - Desktop NAS - Pulse Supply

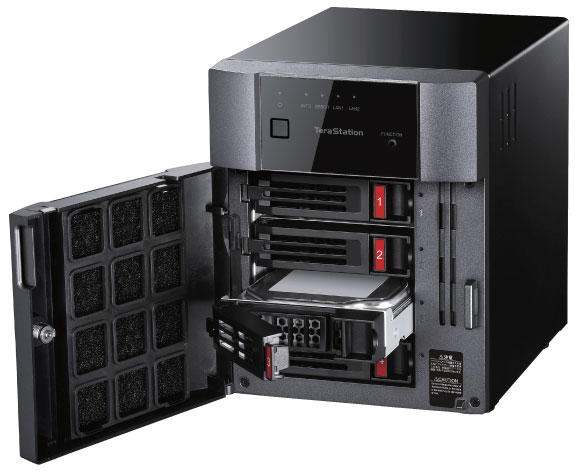

  • Available in 2-bay and 4-bay desktop models and a 1U 4-bay rackmount model
  • 1.4GHz Annapurna dual-core processor and 1 GB DDR3 RAM
  • NAS-grade hard drives designed for reliability in always-on operation
  • Up to 16TB Capacity
  • Remote access via free WebAccess service
  • Buffalo’s unique Boot Authentication feature ensures the device is only accessible on authorized networks
  • Pre-configured RAID enabled systems
  • Supported by Windows, Windows Server, and Mac® OS
  • Integrated backup to 3rd party cloud services: Amazon S3, Dropbox, Microsoft OneDrive & Azure
  • 256 bit AES encryption for data security
  • 24/7 North American based support
  • Includes NovaBACKUP® Buffalo Edition software with one server and ten workstation licenses
  • Three-year limited warranty with additional warranty services available





Specifications

Terastation 3010 Series- Desktop NAS - Pulse Supply









MODELS



  TS3210DN TS3410DN
Part Numbers TS3210DN0402
TS3210DN0802
TS3410DN0404
TS3410DN0804
TS3410DN1204
TS3410DN1604
TS3410DN0402
TS3410DN0802
Configuration Desktop Desktop



INTERNAL HARD DRIVES



Number of Drives 2 2 or 4
Capacity Range 4, 8 TB 4, 8, 12, 16 TB
Drive Interface SATA 6 Gbps SATA 6 Gbps
Supported RAID 0/1/JBOD 0/1/5/6/10/JBOD



USB INTERFACE



Standards Compliance USB 3.0 USB 3.0
Connector Type A type A type
Number of Ports 2x USB 3.0 2x USB 3.0
Data Transfer Rates 5 Gbps 5 Gbps



PERFORMANCE



CPU Annapurna Labs® Alpine Processor
AL212 (1.4 GHz Dual-Core)
Annapurna Labs® Alpine Processor
AL212 (1.4 GHz Dual-Core)
Memory 1 GB DDR3 1 GB DDR3



ENVIRONMENTAL & POWER



Power Consumption

Max 85W

Data Transfer 34W

Idling 21W

Max 85W

Data Transfer 46W

Idling 36W

Power Supply Internal AC 100-240V Universal 50/60Hz Internal AC 100-240V Universal 50/60Hz
Operating Temperature 32˚ - 104˚F (0˚ - 40˚C) 32˚ - 104˚F (0˚ - 40˚C)
Operating Humidity 10 - 85% non-condensing 10 - 85% non-condensing



SHIPPING



Unit Dimensions (L x W x H) 9.05 x 6.69 x 6.69 in 9.05 x 6.69 x 8.46 in
Unit Weight 10.58 lbs 15.43 lbs
Package Dimensions (L x W x H) 14.09 x 12.24 x 12.60 in 14.06 x 12.18 x 14.31 in
Package Weight 11.24 lbs 16.09 lbs



LAN INTERFACE



Standards Compliance IEEE802.3ab (1000BASE-T), IEEE802.3u (100BASE-TX), IEEE802.3 (10BASE-T)
Number of Ports 2 (1000BASE-T)
Data Transfer Rates 1000 Mbps / 100 Mbps / 10 Mbps
Supported Protocols TCP/IP
Network File Services CIFS/SMB, AFP, FTP/FTPS/SFTP, NFS
Connector Type RJ-45



CLIENT OS SUPPORT



Windows® 10, Windows® 8.1 (32-bit/64-bit), Windows® 7 (32-bit/64-bit), Windows Server® 2016, Windows Server® 2012, Windows Server® 2008, Windows Server® 2008R2, Mac® OS® X 10.9 or later



ACCESSORIES



Compatible Hard Drives OP-HD1.0N, OP-HD2.0N, OP-HD4.0N, OP-HD6.0N
Warranties 3YNBD20 - 3yr Next Business Day, 3YKYD40 - 3yr Keep Your Drive, 3YKYD30 - 3yr Keep Your Drive, 3YKYD20 - 3yr Keep Your Drive, 5YNBD40 - 5yr Next Business Day, 5YNBD30 - 5yr Next Business Day, 5YNBD20 - 5yr Next Business Day, 5YKYD40 - 5yr Keep Your Drive, 5YKYD30 - 5yr Keep Your Drive, 5YKYD20 - 5yr Keep Your Drive



BOX CONTENTS



TeraStation, Quick Setup Guide, 6a Ethernet Cable, Rail Kit with Mounting Brackets and Screws*, AC Cable, Front Panel Key**, and Warranty Statement
* TS3410RN only **TS3210DN & TS3410DN only



Have more questions about Network Attached Storage products and solutions? Call us at 410-583-1701 or email us at questions@pulsesupply.com.
