TeraStation 6000 Desktop Series

Live Search for Pulse Website

Loading...

Tel: 410-583-1701     Email: Sales & Technical

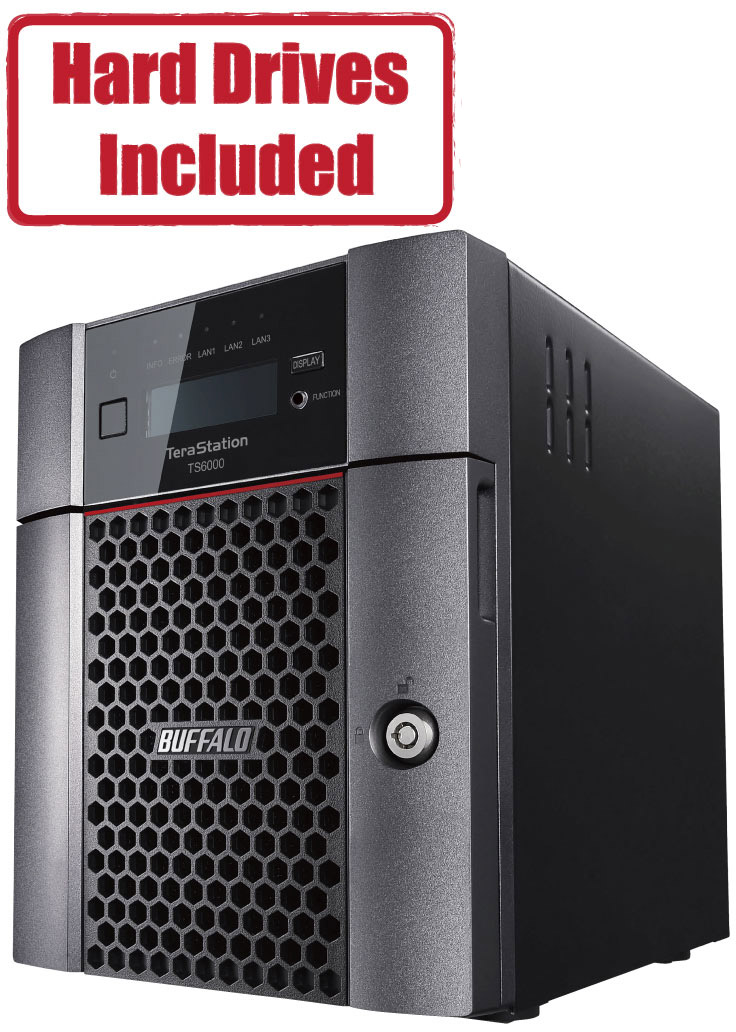

TeraStation 6000 Series + Snapshot

Desktop NAS




High-Performance Storage Defense Against Cyber Threats +Snapshot - Hard Drives IncludedTerastation 6000 Desktop - NAS - Pulse Supply

This family of Network Attached Storage devices is available in rackmount and desktop options, with capacities ranging from 8TB up to 32TB. The TS6000 comes with hard drives included. Desktop & Rackmount form factors offer partially populated options for businesses to buy-in at a lower price with room for future data growth. The TS6000 also uses snapshots to further protect your data. By creating a full virtual copy of your local data that you can easily restore at any time, the TS6000’s snapshot feature is a true game-changer to combat the common occurrences of essential files being overwritten or deleted due to user error. Snapshots are also an effective tool to curb the rising threat of ransomware. In the event of a ransomware attack, you can simply choose to restore specific files to a previously uninfected state, or even revert the entire storage volume to a previous state that has not been infected.

The TS6000 also features additional data protection. The new model now utilizes copy-on-write to further reduce backup errors when updating files. In addition, the TS6000 now boasts direct iSCSI backup and backup capability, a key backup feature where you can directly connect a TS6000 to another TS6000 device on the network and back up its data. With this method, data is transferred through a separate, closed network, which significantly reduces server bandwidth and workload. This family is VMware Certified for iSCSI. In the event of a hard drive issue, the TS6000 new duplex firmware solution allows the system to boot from the NAND flash memory on the system board instead of the hard drive, which keeps operations stable while allowing you to run diagnostics and repair the damaged firmware on the hard drive. This allows the firmware to be recovered without losing data in most cases, adding an extra layer of data security.



Features:Terastation 6000 - Desktop NAS - Pulse Supply



  • Snapshot protects data from cyber threats
  • iSCSI backup target with iSCSI replication capable
  • NAS-grade hard drives included
  • 3rd party cloud integration for hybrid cloud
  • Up to 32TB Capacity
  • 10GbE port for faster data transfer speeds
  • 256 bit AES encryption for data security





Specifications

Terastation 6000 Desktop  - NAS - Pulse Supply







MODELS





Part Numbers

TS6400DN1604    (4 X 4TB)
TS6400DN3204    (4 X 8TB)
TS6400DN0802    (2 X 4TB)
TS6400DN1602    (2 X 8TB)



INTERNAL HARD DRIVES

Number of Drive Bays 4
Number of Included Drives 2 or 4
Capacity Range 8 to 32 TB
Drive Interface SATA 6 Gbps
Supported RAID 0/1/5/6/10 (Default 5)



USB INTERFACE

Standards Compliance USB 3.0
Connector Type A type
Number of Ports 2x USB 3.0
Data Transfer Rates 5 Gbps



PERFORMANCE

CPU Intel® Atom C3538
Memory 8GB DDR4 with ECC



ENVIRONMENTAL & POWER

Power Consumption

Max 85W

Data Transfer 62W

Idling 55W

Power Supply Internal AC 100-240V Universal 50/60Hz
Operating Temperature 32° - 104°F (0° - 40°C)
Operating Humidity 10 - 85% non-condensing



SHIPPING

Product Dimensions
(L x W x H)
9.1 x 6.7 x 8.5 in
Product Weight 16.3 lbs
Package Dimensions (L x W x H) 23.03 x 21.26 x 7.87 in
Package Weight 28.7 lbs



LAN INTERFACE

Standards Compliance IEEE802.3an (10GBASE-T), IEEE802.3bz (5GBASE-T/2.5GBASE-T), IEEE802.3ab (1000BASE-T), IEEE802.3u (100BASE-TX), IEEE802.3 (10BASE-T)
Number of Ports 1 (10GBASE-T), 2 (1000BASE-T)
Data Transfer Rates 10 Gbps / 1000 Mbps / 100 Mbps / 10 Mbps
Supported Protocols TCP/IP
Network File Services CIFS/SMB, AFP, FTP, SFTP, NFS, SNMP
Connector Type RJ-45



OTHER

VMware Compatibility iSCSI & NFS

Client OS Support

Windows® 10, Windows® 8.1 (32-bit/64-bit), Windows® 7 (32-bit/64-bit), Windows Server®  2016, Windows Server® 2012, Windows Server® 2012R2, Windows Server® 2008, Windows Server® 2008R2, Mac® OS® X 10.11 or later
Compatible Hard Drives OP-HD2.0N, OP-HD4.0N, OP-HD6.0N, OP-HD8.0N
Optional Warranties 3YKYD30 - 3yr Keep Your Drive, 5YKYD30 - 5yr Keep Your Drive, 3YNBD30 - 3yr Next Business Day, 5YNBD30 - 5yr Next Business Day
Included Software NASNavigator2, NovaBACKUP® Buffalo Edition (one server and ten workstation licenses)
Box Contents TeraStation™, Quick Setup Guide, 6a Ethernet Cable , Rail Kit with Mounting Brackets and Screws, AC Cable, and Warranty Statement
