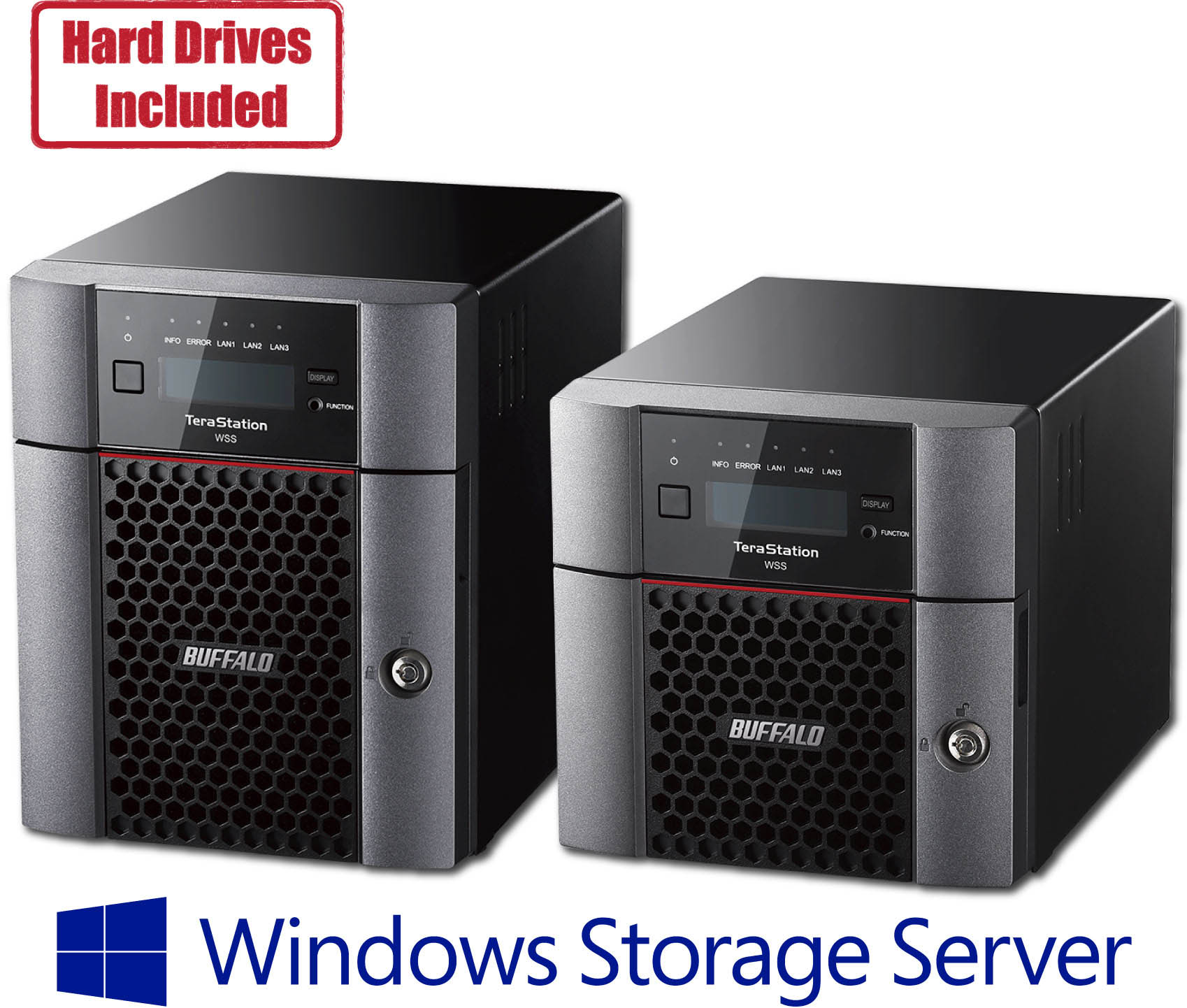

TeraStation WS5020 Series

Desktop NAS




Get Serious About Protecting Your DataTerastation WS5020 Series - Desktop NAS - Pulse Supply

TBuffalo’s TeraStation™ WS5020 series is a reliable Network Attached Storage solution integrated with Windows Storage Server 2016 (pre-tested NAS-grade hard drives included). This specialized operating system helps simple deployment and management of your growing storage demands as it integrates seamlessly with your existing Windows-based environment.

WS5020 is an ideal solution for consolidating multiple file servers into a single solution that enables cost reduction and lowering of the overhead on your existing servers for other workloads.

With the powerful Intel® Atom™ processor and 8 GB of installed RAM with ECC, the TeraStation™ WS5020 series provides class-leading performance and enables the ability to focus on concurrent tasks with minimal performance degradation. TeraStation™ WS5020 series features native 10GbE connectivity and achieves increased reliability by populating with hard drives built specifically for always-on NAS devices. Additionally, support for NTFS for very specific file-level security and native Active Directory support provides integration with large Windows® networks.









Features:Terastation WS5020 - Windows Desktop NAS - Pulse Supply



  • Pre-tested NAS-grade hard drives included with RAID pre-configured
  • 3-year warranty with 24/7 North America-based support (Optional Extended Warranty)
  • Windows® Storage Server 2016 Workgroup/Standard Edition
  • No CAL (Client-Access Licenses) required. Cost-effective storage solution to make full use of existing Windows-based environments
  • Efficient and high-speed backup with deduplication feature/native 10GbE port/8GB ECC memory
  • Supports a variety of backup and features [Shadow Copy/Azure Backup]
  • Highly secured with the latest SMB protocol support (3.1.1)
  • Business-level sever/PC backup NovaBACKUP® software bundled
  • Made in Japan / TAA compliant





Specifications

Terastation WS5020 Windows Desktop Series- NAS - Pulse Supply







MODELS





WS5220DN

WS5420DN

Part Numbers                   

WS5220DN04W6
WS5220DN08W6
      

WS5420DN08W6
WS5420DN16W6
WS5420DN32W6
   

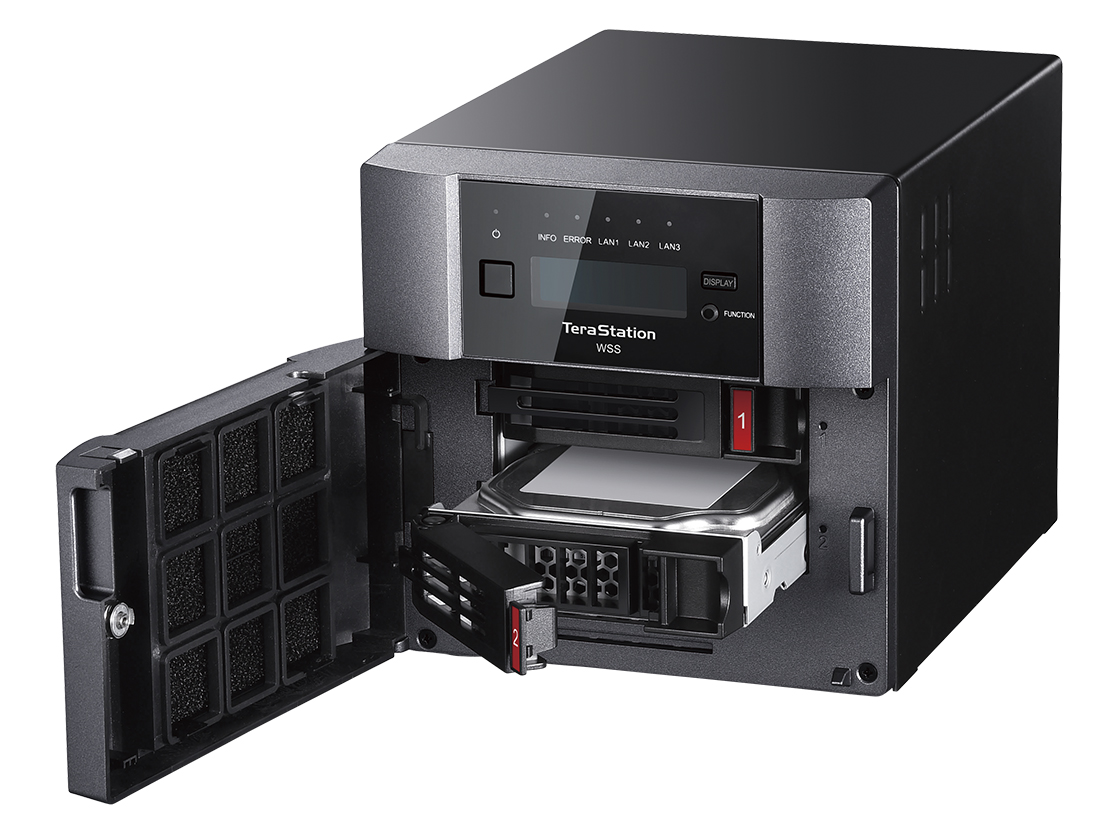

INTERNAL HARD DRIVES



Number of Drive Bays 2 4
Number of Included Drives                    2 4
Capacity Range 4, 8 TB 8, 16, 32 TB
Drive Interface SATA 6 Gbps SATA 6 Gbps
Supported RAID   0/1/JBOD (Individual Disks) (Default 1)    0/1/5/JBOD (Individual Disks) (Default 5)



USB INTERFACE



Standards Compliance USB 3.0 USB 3.0
Connector Type A type A type
Number of Ports 2x USB 3.0 2x USB 3.0
Data Transfer Rates 5 Gbps 5 Gbps



PERFORMANCE



CPU                 Intel Atom C3338 Intel Atom C3338
Memory 8GB DDR4 with ECC 8GB DDR4 with ECC



ENVIRONMENTAL & POWER



Power Consumption                   

Max 85W

Data Transfer 30.7W

Idling 25.5W

Standby 6.1W

Max 85W

Data Transfer 30.7W

Idling 25.5W

Standby 6.1W

Power Supply Internal AC 100-240V Universal 50/60Hz Internal AC 100-240V Universal 50/60Hz
Operating Temperature 32˚ - 104˚F (0˚ - 40˚C) 32˚ - 104˚F (0˚ - 40˚C)
Operating Humidity 10 - 85% non-condensing 10 - 85% non-condensing



SHIPPING



Product Dimensions
(L x W x H)                 
9.1 x 6.7 x 6.7 in 9.1 x 6.7 x 8.5 in
Product Weight 10.4 lbs 11.0 lbs
Package Dimensions (L x W x H) 14.1 x 12.2 x 12.6 in

14.1 x 12.2 x 14.3 in

Package Weight 13.7 lbs 14.3 lbs

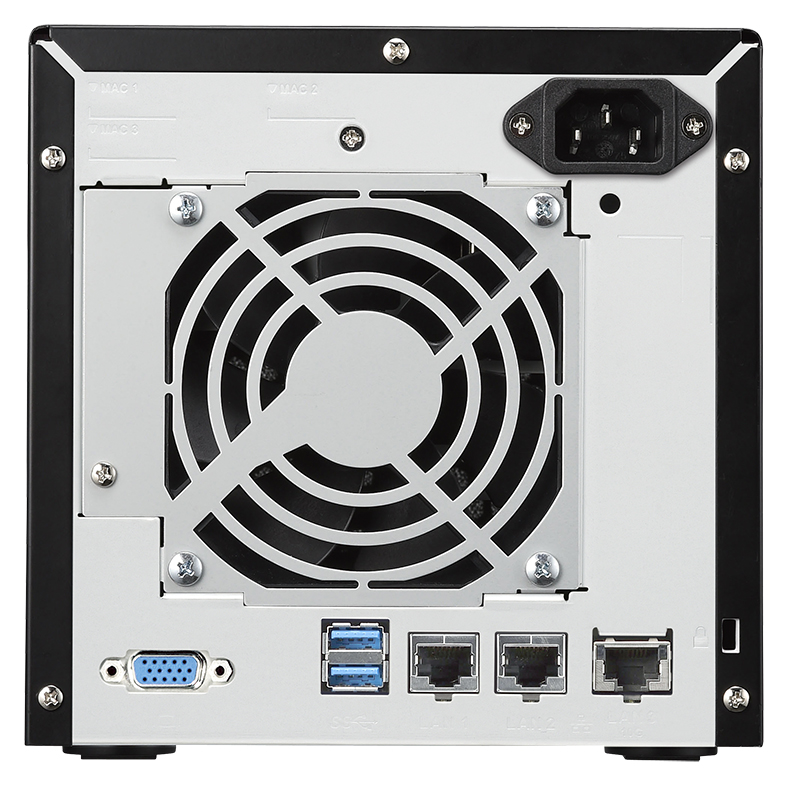

LAN INTERFACE



Standards Compliance  IEEE802.3an (10GBASE-T), IEEE802.3bz (5GBASE-T/2.5GBASE-T), IEEE802.3ab (1000BASE-T), IEEE802.3u (100BASE-TX), IEEE802.3 (10BASE-T)
Number of Ports 1 (10GBASE-T), 2 (1000BASE-T)
Data Transfer Rates 10 Gbps / 1000 Mbps / 100 Mbps / 10 Mbps
Supported Protocols TCP/IP
Network File Services CIFS/SMB, AFP, FTP, SFTP, NFS, SNMP
Connector Type RJ-45



OTHER



Client OS Support 

Windows® 10
Windows® 8.1 (32-bit/64-bit)
Windows® 7 (32-bit/64-bit)
Windows Server® 2016
Windows Server® 2012R2
Windows Server® 2012
Windows Server® 2008R2
Windows Server® 2008
Mac® OS® X 10.11 or later

Compatible Hard Drives

OP-HD2.0N, OP-HD4.0N, OP-HD6.0N, OP-HD8.0N

Optional Warranties KYD (3YKYD40/5YKYD40)
NBD (3YNBD20/5YNBD40)
Included Software NASNavigator2, NovaBACKUP® Buffalo Edition (one server and ten workstation licenses)
Box Contents TeraStation WS5220DN/WS5420DN
AC Cable
6a Ethernet Cable
Front Panel Key
Warranty Statement
Quick Setup Guide
Setup Media (SD CARD)
