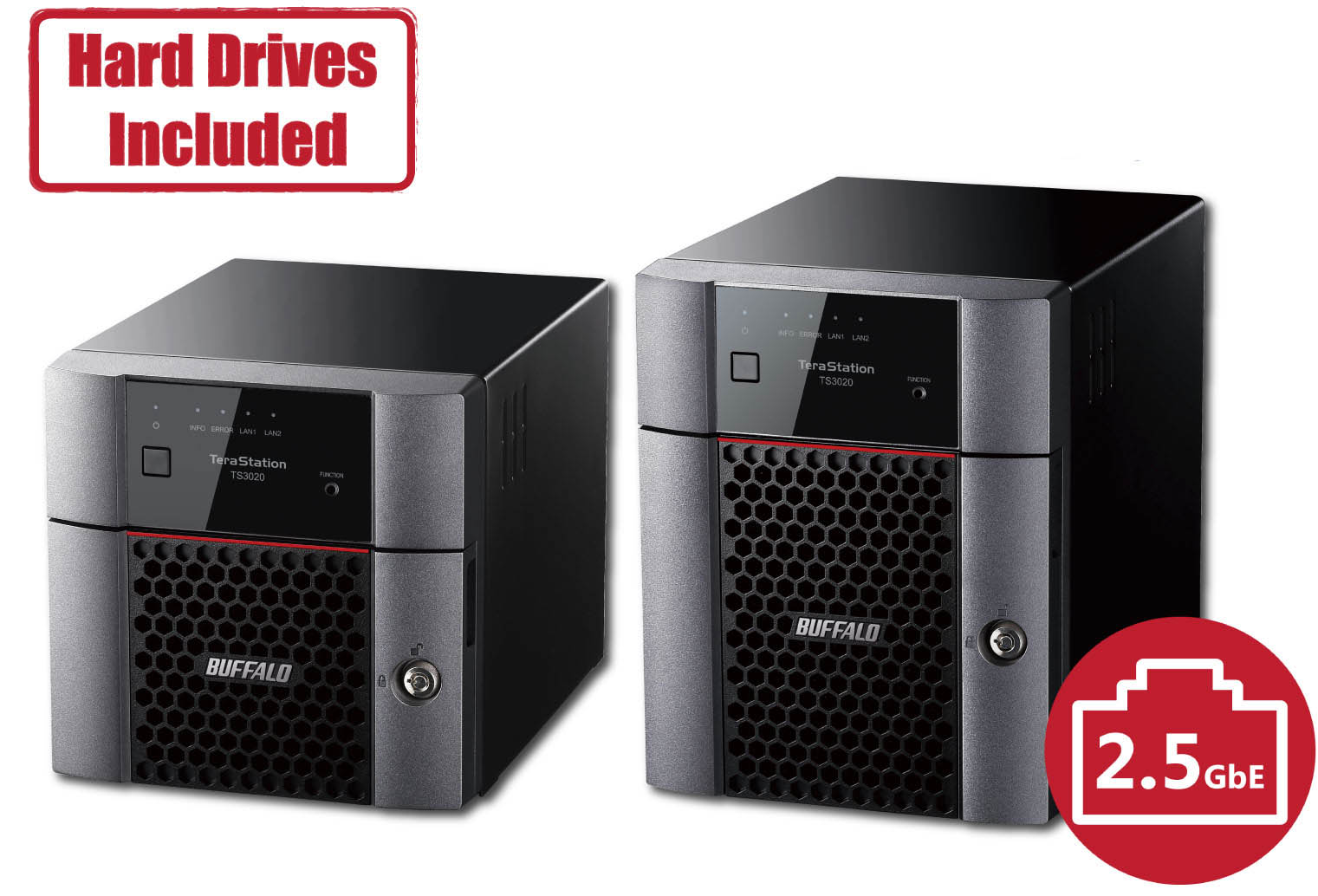

TeraStation 3020 Series

Desktop NAS




Get Serious About Protecting Your DataTerastation 3020 Desktop - NAS - Pulse Supply

The Buffalo TeraStation 3020 series is a Network Attached Storage solution ideal for small businesses that are serious about protecting their valuable business data. No more backing up data to easily-misplaced thumb drives or having to deal with multiple tapes or external hard drives – the TS3020 series lets you take data protection to the next step.

Designed for businesses that are around 25 users, the TS3020 series delivers similar features and functionality as more advanced NAS solutions from Buffalo while offering reliability and versatility to help your business grow. The TS3020 family ships with NAS-grade hard drives included, and the 4-bay rackmount and desktop models come in partially-populated options so you can fulfill your storage needs today while giving you the flexibility to expand later as you see fit. The hard drives have been rigorously tested to maintain steady operations in an always-on environment, and remain much more stable and reliable than standard desktop hard drives. Small businesses will especially enjoy the TS3020's features such as the 2.5GbE Ready Port that allow them to achieve the reliability and security typically reserved for enterprise-level organizations.

No matter the size of your business, data protection should be of the highest priority. The TS3020 series supports both local and cloud-based backup strategies and lets you automate your backup plan to save you time and money. Automation also ensures more consistent results should you need to recover data, saving you additional headaches. Data protection features such as optional data encryption as well as Buffalo’s integrated software, which ensures that hard drive data cannot be accessed on systems other than your TeraStation, provide additional security. For physical protection, the integrated Kensington security slot, drive bay panel lock, and Buffalo’s Boot Authentication software all serve to make sure your data cannot be accessed even if your unit is lost or stolen. TeraStation 3020 units ship with RAID pre-configured for streamlined out-of-the-box data protection to further provide reliability and save you time.



Features:Terastation 3020 Desktop - NAS - Pulse Supply



  • Available in 2-bay and 4-bay desktop models and a 1U 4-bay rackmount model - Partially Populated options available
  • Includes 2.5GbE Ready Port for increased data transfer speeds without cable installation
  • NAS-grade hard drives designed for reliability in always-on operation
  • Premium metal chassis with Kensington security slot and front panel lock*
  • Boot Authentication - locks device until authenticated on the network in case of theft
  • Free Remote Management Service
  • Pre-configured RAID enabled systems
  • Supported by Windows, Windows Server, and Mac® OS
  • Integrated backup to 3rd party cloud services: Amazon S3, Dropbox, Microsoft OneDrive & Azure
  • Up to 32TB Capacity
  • 256 bit AES encryption for data security
  • 24/7 North American based support
  • Includes NovaBACKUP® Buffalo Edition software with one server and ten workstation licenses
  • Use cases include: Virtualized storage target, Offsite disaster recovery, and File sharing & local backup



*TS5210DN, TS5410DN, TS5810DN, and TS5410RN ship with NAS-grade hard drives. TS51210RH ships with enterprise-grade hard drives and two native 10GbE ports.
*TS5210DN, TS5410DN, TS5810DN include Kensington security slot and front panel lock



Specifications

Desktop Terastation 3020 - NAS - Pulse Supply









MODELS



  TS3220DN TS3420DN
Part Numbers TS3220DN0402
TS3220DN0802

TS3420DN0804
TS3420DN1604
TS3420DN3204
TS3420DN0402
TS3420DN0802
TS3420DN1602

Configuration Desktop Desktop



INTERNAL HARD DRIVES



Number of Drives 2 2 or 4
Capacity Range 4, 8 TB 4, 8, 16, 32 TB
Drive Interface SATA 6 Gbps SATA 6 Gbps
Supported RAID 0/1/JBOD 0/1/5/6/10/JBOD



USB INTERFACE



Standards Compliance USB 3.0 USB 3.0
Connector Type A type A type
Number of Ports 2x USB 3.0 2x USB 3.0
Data Transfer Rates 5 Gbps 5 Gbps



PERFORMANCE



CPU Annapurna Labs® Alpine Processor
AL214 (1.4 GHz Quad-Core)
Annapurna Labs® Alpine Processor
AL214 (1.4 GHz Quad-Core)
Memory 1 GB DDR3 1 GB DDR3



ENVIRONMENTAL & POWER



Power Consumption

Max 85W

Data Transfer 34W

Idling 30W

Max 85W

Data Transfer 57W

Idling 48W

Power Supply Internal AC 100-240V Universal 50/60Hz Internal AC 100-240V Universal 50/60Hz
Operating Temperature 32˚ - 104˚F (0˚ - 40˚C) 32˚ - 104˚F (0˚ - 40˚C)
Operating Humidity 10 - 85% non-condensing 10 - 85% non-condensing



SHIPPING



Unit Dimensions (L x W x H) 9.1 x 6.7 x 6.7 in 9.1 x 6.7 x 8.5 in
Unit Weight 9.7 lbs 15.7 lbs
Package Dimensions (L x W x H) 14.09 x 12.24 x 12.60 in 14.06 x 12.18 x 14.31 in
Package Weight 12.1 lbs 18.1 lbs



LAN INTERFACE



Standards Compliance IEEE802.3bz (2.5GBASE-T), IEEE802.3ab (1000BASE-T), IEEE802.3u (100BASE-TX), IEEE802.3 (10BASE-T)
Number of Ports 1 (2.5GBASE-T), 1 (1000BASE-T)
Data Transfer Rates 2.5Gbps / 1000 Mbps / 100 Mbps / 10 Mbps
Supported Protocols TCP/IP
Network File Services CIFS/SMB, AFP, FTP/FTPS/SFTP, NFS
Connector Type RJ-45



CLIENT OS SUPPORT



Windows® 10, Windows® 8.1 (32-bit/64-bit), Windows® 7 (32-bit/64-bit), Windows Server® 2019, Windows Server® 2016, Windows Server® 2012R2, Windows Server® 2012, Windows Server® 2008R2, Windows Server® 2008, Mac® OS® X 10.11 or later



ACCESSORIES



Compatible Hard Drives OP-HD2.0N, OP-HD4.0N, OP-HD8.0N
Warranties 3YNBD20, 3YKYD40, 3YKYD30, 5YNBD40, 5YNBD30, 5YKYD40, 5YKYD30,



BOX CONTENTS



TeraStation, Quick Setup Guide, 5e Ethernet Cable,  AC Cable, Front Panel Key, and Warranty Statement





Have more questions about Network Attached Storage products and solutions? Call us at 410-583-1701 or email us at questions@pulsesupply.com.
