TeraStation TS7120r Network Attached Storage
Rackmount NAS
Get Serious About Protecting Your Data
The TeraStation™ 7120r offers high performance, 12‑bay network, and iSCSI storage packed with advanced features and functions including IP camera and video surveillance support. The TeraStation™ 7120r is ideal for businesses looking to implement a reliable RAID-based network storage solution for large networks and business-critical applications.
Featuring the powerful Intel® Xeon® E3-1225 quad-core processor and 4 GB of upgradable DDR3 RAM, the TS7120r provides exceptional performance and will run many services simultaneously with minimal performance degradation – experience maximum network throughput while replication and backup tasks run in the background.
TeraStation™ 7120r runs on Buffalo’s TeraStation™ NAS System providing a host of business-class features from network file sharing and security to RAID management, iSCSI targeting, Active Directory support, disk quota support, share level replication, quad gigabit Ethernet ports, hot-swap hard drives, and fans, an add-on PCI Express card support for remote access, and more. Managing data, backups, and data sharing in a production environment or larger business is made easy with this NAS operating system. Included on all Buffalo TeraStation™ devices, TeraStation™ NAS System simplifies your everyday data needs. Another big benefit: the TS7120r comes partially populated with 4 HDD and total capacities of 8 or 12 TB. Network administrators can add up to eight additional drives as storage and back-up requirements grow.
Features:
- Powered by a high-performance quad-core Intel® Xeon® E3-1225 processor

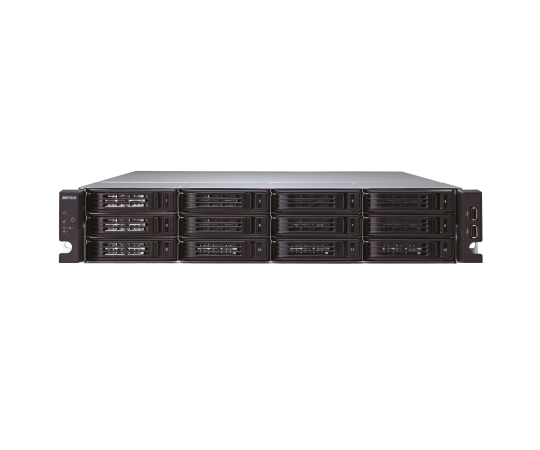

- 12 bays in a 2U platform, partially populated with 4 HDD and total capacities of 8 or 12 TB
- 4 GB of fast DDR3 memory
- Simultaneous NAS and iSCSI target functionality
- Remote file access via Buffalo WebAccess and FTP/SFTP

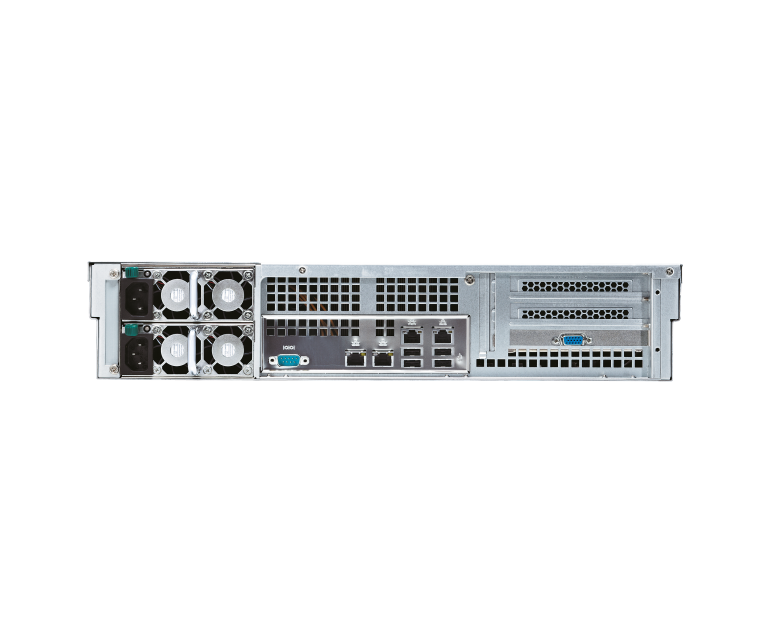

- Designed for 24/7 operation with two independent power supplies offering redundant power, hot-swappable HDD, and redundant hot-swappable fans
- Faster and easier-to-use new user interface
- Comes ready-to-use with a rail kit included in the box
- Packed with rich backup features including:
- NovaBACKUP® Buffalo Edition: 1 server and 10 user licenses
- New Buffalo Media Cartridge: Removable and replaceable - HDD functions like a tape backup drive
- Scheduled or real-time replication to other TeraStation™ devices - VMware® Certified and works with Hyper-V® and Citrix® software
- 6 USB 2.0 Ports
- 2 PCI-Express expansion slots
- 3 year VIP warranty included Extended Warranty available
Specifications
| Hardware System | Form Factor | Rackmount | ||
| CPU Type | Intel Xeon E3-1225 (Quad-Core, 4 Threads) | |||
| CPU Speed | 3.1GHz | |||
| Number of Cores | 4, Core, 4 Threads | |||
| RAM | DDR3 ECC 4GB, Upgradeable | |||
| Drive Interface | SATA 3, 6 Gb/s | |||
| PCIe Interface | 1x8, 1x4 optional adapters*, 10GbE ready | |||
| Installed OS | Linux | |||
| Size of Workgroup | 300 | |||
| Internal Hard Drives | Type of Drive | Desktop HDDs | ||
| Number of Bays | 12 | |||
| Total Capacity | 1TB, 2TB, 3TB, 4TB | |||
| LAN Interface | Connector Type | RJ-45 | ||
| LAN Ports | 4, 10GbE ready | |||
| Max Transmission Rate | 10/100/1000 Mbps | |||
| USB Interface | Connector Type | USB Type A | ||
| USB 2.0 Ports | 6 | |||
| Max Transmission Rate | Max: 480 Mb/s | |||
| Serial Port | Connector Type | D-SUB 9pin | ||
| Number of Ports | 1 | |||
| Monitor Port | Connector Type | VGA (for maintenance) | ||
| Number of Ports | 1 | |||
| Other | Client OS | Windows 10*, 8.1*, 8*, 7*, Vista*, XP, XP Media Center Edition (2004 or 2005) Windows Server 2012 R2, 2012, 2008 R2, 2008, 2003 R2, 2003 Windows RT 8.1, RT macOS 10.12, 10.11, 10.10, 10.9, 10.8, 10.7, 10.6, 10.5, 10.4 | ||
| Support | Standard Warranty 3 years, 24 hour HDD exchange, Technical Support Hotline | |||
| Dimensions | 736 x 480 x 88 mm | |||
| Weight | 20 kg | |||
| Operating Environment | 5-35°C, 20-80% (non-condensing) | |||
| Power Supply | Internal, 2 x (Redundant) AC 100-240V 50/60Hz | |||
| Power Consumption (max.) | 550 W | |||
| Power Consumption (operation, typical) | 220 W | |||
| Redundant Power Supply | Yes | |||
| Power Management System | Yes | |||
| Software System | Supported RAID Levels | JBOD, 0, 1, 5, 6, 10, 51, 61 | ||
| Hot Swap | Yes | |||
| Hot Spare | Yes | |||
| Video Surveillance Package | One free camera license, more can be added, manages storage pool and camera pool supports cameras from 184 vendors and manual settings for RTSP | |||
| DFS | DFS namespace support | |||
| User Quota | Space limitation for users/groups | |||
| iSCSI | iSCSI Target | |||
| Protocol Support | Networking | TCP/IP | ||
| File Sharing | CIFS/SMB, AFP, HTTP/HTTPS, FTP/SFTP, NFS | |||
| Protocol Support | TCP/IP, CIFS/SMB, DFS, AFP, HTTP/HTTPS, FTP/SFTP, NFS, LDAP, NTP, SNMP, RTSP, BitTorrent | |||
| Other | IP Camera Support, Disk quota, User quota, Wake on LAN, DLNA Media Server, Print Server Support | |||
| Active Directory support | Yes | |||
| Active Directory Integration | LDAP | |||
| Active Directory users | 1000 | |||
| Management | HTTP/HTTPS | |||
| Time Synchronization | NTP | |||
| Camera | RTSP | |||
| Backup | Failover | Failover solution with other Buffalo NAS devices | ||
| Realtime Backup | Folder Replication, Failover | |||
| Replication | Yes | |||
| Apple Time Machine® | Yes | |||
| Backup Software Licenses | 11 licenses NovaBACKUP Buffalo Edition for Windows Clients: 1 server license, 10 PC licenses | |||
| Remote Access | Web UI | via HTTP/HTTPS | ||
| FTP Server | via FTP/SFTP | |||
| WebAccess | Yes | |||
| FTP/SFTP | Yes | |||
| Product Part Numbers | Product Code | TS-2RZS08T04D - 8TB, TS-2RZS12T04D - 12TB | ||
| Note | *Supported PCIe adapters: 10 Gb NIC Intel X540T2, E10G42BTDA/BFSR, E10G41BFSR/AT2; Emulex OCe11102-N/I/F; USB 3.0 Buffalo IFC-PCIE2U3S2 | |||
