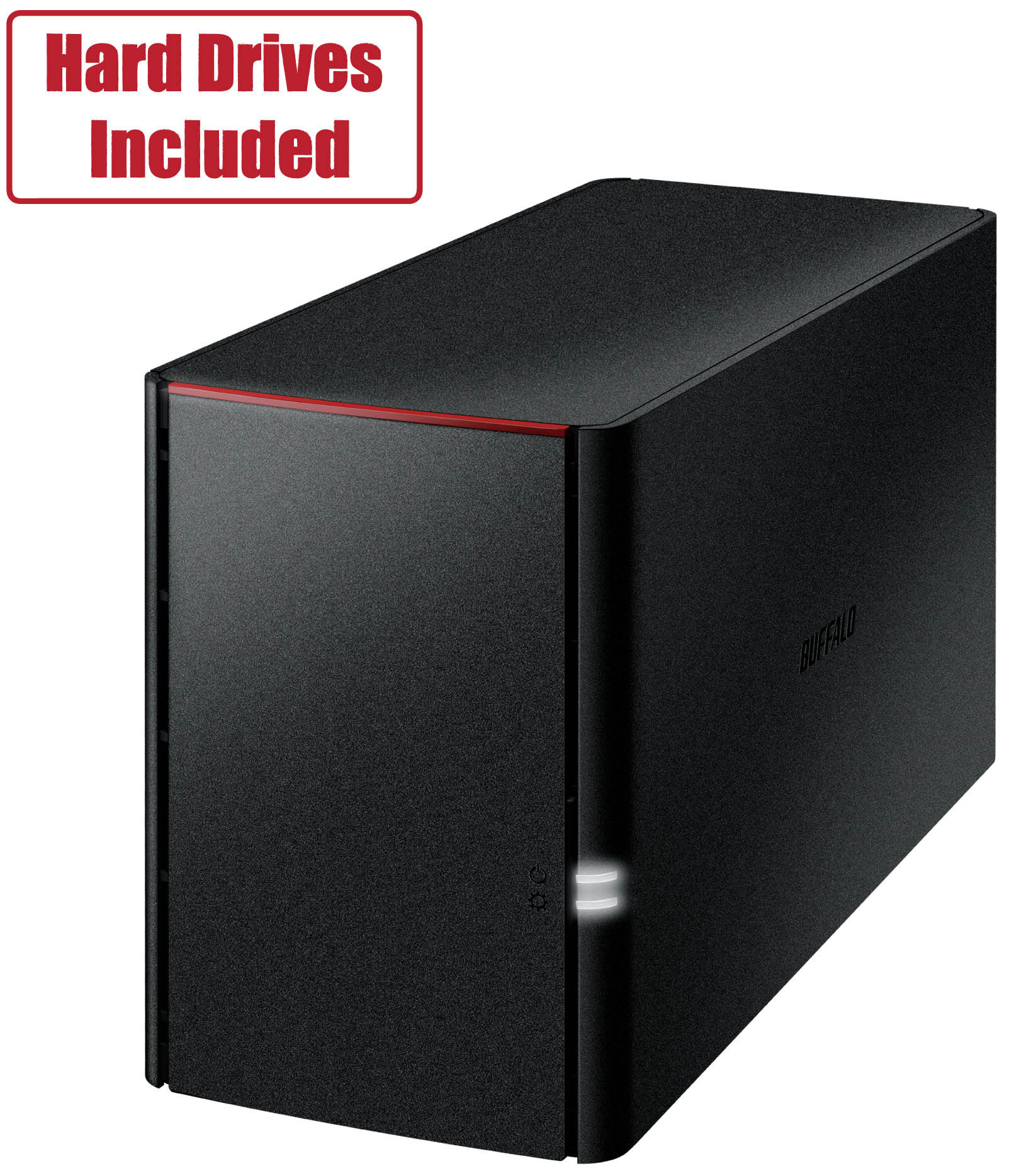

LinkStation™ SoHo 200 Series

Desktop NAS




Get Serious About Protecting Your DataLinkStation SoHo 200 Series - Desktop NAS - Pulse Supply

The LinkStation SoHo 200 is designed and priced specifically for small & home business environments where users are looking to
secure their data in an on-site private network and avoid costly monthly cloud subscriptions. Businesses utilizing the LinkStation SoHo will enjoy business-level data storage and security without the hassle and prohibitive costs of setting up a professional storage network. This device is available in 4TB, 8TB & 12TB capacities.

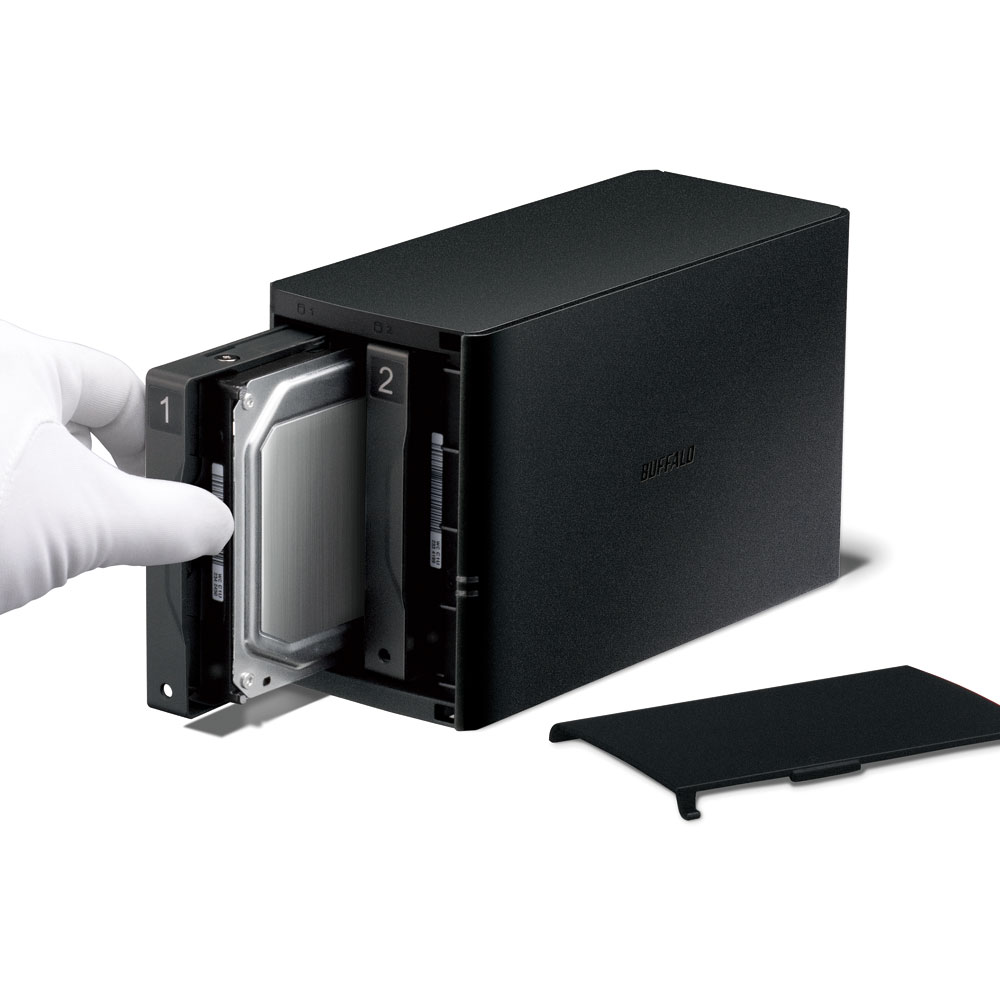

The LinkStation SoHo includes two hard drives pre-configured in RAID1, providing data redundancy out of the box, saving you the hassle of setting this up yourself. This device also allows you to easily schedule backup jobs so the data on your PCs will be automatically backed up to the LinkStation SoHo. For Mac users, the LinkStation SoHo 200 is also Time Machine-ready. Professionals who work with digital cameras will especially appreciate the Direct Copy function, which allows direct data saving from a digital camera or another USB device without needing a PC. Once the LinkStation SoHo is connected to a UPS, the UPS sync feature allows the device to shut down immediately if there is a power outage, thereby preventing possible data loss.

Professional users will also enjoy LinkStation SoHo 200's Active Directory support that allows administrators to manage permissions and access to network resources, so you can create a network infrastructure that suits your needs. Along with the robust data security features, this device provides a platform to easily access and share data as well. Users will be able to remotely access files and folders on the LinkStation from both desktop and mobile devices by utilizing Buffalo’s WebAccess application.









Features:LinkStation SoHo 200 Series - Windows Desktop NAS - Pulse Supply



  • Available in 2-drive models
  • Active Directory integration
  • RAID 1 enables immediate fault-tolerance
  • Scheduled backup to other Buffalo NAS devices
  • Easy PC backup with 5 licenses of NovaBACKUP® Buffalo Edition
  • Set up regular backups using Time Machine for Mac
  • Disk quota support
  • Secure and reliable central storage for PC and Mac
  • Create a personal cloud for secure access and sharing anytime, anywhere with WebAccess free remote service
  • 800 MHz dual-issue ARM processor
  • 256MB DDR3 RAM
  • USB port





Specifications

LinkStation SoHo 200 Series- NAS - Pulse Supply







MODELS



Part numbers

LS220D0402B
LS220D0802B
LS220D1202B

Form factor Desktop



PERFORMANCE



Processor Marvell Armada 370 (800MHz dual issue ARM)
Memory 256MB DDR3



INTERNAL HARD DRIVES



Number of drive bays 2

Capacity

4TB: LS220D0402B
8TB: LS220D0802B
12TB: LS220D1202B

Drive interface SATA 3 Gbps
Supported RAID levels 0/1/JBOD



LAN INTERFACE



Standards compliance IEEE802.3 (10BASE-T), IEEE802.3u (100BASE-TX), IEEE802.3ab (1000BASE-T), AUTO-MDIX
Data transfer rates 10/100/1000 Mbps (auto sensing)
Number of ports 1
Connector type RJ-45
Supported protocols TCP/IP
Network file services SMB/CIFS, AFP, FTP/FTPS



USB INTERFACE



Standards compliance USB 2.0
Data transfer rates 480 Mbps* (USB 2.0)
Number of ports 1 x USB 2.0D

* 480 Mbps are the maximum transfer rates derived from the specifications of the Universal Serial Bus 2.0. Actual transfer rates will vary depending upon environmental factors. Data rates, features, and performance may vary based on the configuration of your system and other factors.



ENVIRONMENTAL AND POWER



Power consumption 48W Max
Power supply Internal AC 100-240V Universal 50/60Hz
Operating temperature 41˚ - 95˚F (5˚ - 35˚C)
Operating humidity 20 - 80% non-condensing



OTHER



Dimensions (L x W x H) 8.1 x 3.4 x 5 in
Weight 5.5 lbs
Compatible hard drives OP-HD2.0BST-3Y, OP-HD4.0BST-3Y, OP-HD4.0BST-3Y
Client OS support Windows® 10
Windows® 8.1 (32-bit/64-bit)
Windows® 8 (32-bit/64-bit)
Windows® 7 (32-bit/64-bit)
Windows Vista® (32-bit/64-bit)
Windows Server® 2012 R2
Windows Server® 2012
Windows Server® 2008 R2
Windows Server® 2008
Windows Server® 2003
Mac OS® X up to 10.12 or later
Included software NASNavigator2
NovaBACKUP®
Box contents LinkStation™
Quick setup guide
Ethernet cable
AC adapter
AC cable
Warranty statement
