TeraStation TS7120R Enterprise

Live Search

Tel: 410-583-1701     Email: Sales & Technical

TeraStation TS7120r Enterprise

Rackmount NAS




Get Serious About Protecting Your DataTeraStation TS7120R Enterprise Series - Desktop NAS - Pulse Supply

The TeraStation™ 7120r Enterprise offers high performance, 12‑bay network, and iSCSI storage packed with advanced features and functions including IP camera and video surveillance support. The TeraStation™ 7120r Enterprise is ideal for businesses looking to implement a reliable RAID-based network storage solution for large networks and business-critical applications.

Featuring the powerful Intel® Xeon® E3-1275 quad-core processor and up to 8 GB of upgradable DDR3 RAM, the TS7120r Enterprise provides exceptional performance and will run many services simultaneously with minimal performance degradation – experience maximum network throughput while replication and backup tasks run in the background.

TeraStation™ 7120r Enterprise runs on Buffalo’s TeraStation™ NAS System providing a host of business-class features from network file sharing and security to RAID management, iSCSI targeting, Active Directory support, disk quota support, share level replication, quad gigabit Ethernet ports, hot-swap hard drives, and fans, an add-on PCI Express card support for remote access, and more.

Managing data, backups, and data sharing in a production environment or larger business is made easy with this NAS operating system. Included on all Buffalo TeraStation™ devices, TeraStation™ NAS System simplifies your everyday data needs. The TS7120r Enterprise comes fully populated in capacities of 24, 36, 48, 72, 96 or 120 TB.









Features:TeraStation TS7120R Series  - Enterprise Rackmount NAS - Pulse Supply



  • Powered by a high-performance quad-core Intel® Xeon® E3-1275 processor
  • 12 bays in a 2U platform, enterprise-class SATA hard drives, and as much as 120 TB storage capacities
  • Up to 8 GB of fast DDR3 memory
  • Available with 7200 RPM nearline HDD
  • Simultaneous NAS and iSCSI target functionality
  • Remote file access via Buffalo WebAccess and FTP/SFTP
  • Designed for 24/7 operation with two independent power supplies offering redundant power, hot-swappable HDD, and redundant hot-swappable fans
  • Faster and easier-to-use new user interface
  • Comes ready-to-use with a rail kit included in the box
  • Packed with rich backup features including:
    - NovaBACKUP® Buffalo Edition: 1 server and 10 user licenses
    - New Buffalo Media Cartridge: Removable and replaceable
  • HDD functions like a tape backup drive
    - Scheduled or real-time replication to other TeraStation™ devices
  • VMware® Certified and works with Hyper-V® and Citrix® software
  • 6 USB 2.0 Ports
  • 2 PCI-Express expansion slots
  • 3 year VIP warranty included Extended Warranty available





Specifications

TeraStation TS7120R Enterprise Series - NAS - Pulse Supply








 Hardware System    Form Factor    Rackmount
     CPU Type    Intel Xeon E3-1275 (Quad-Core, 8 Threads)
     CPU Speed    3.4GHz
     Number of Cores    4, Core, 8 Threads
     RAM    DDR3 ECC 8GB, Upgradeable
     Drive Interface    SATA 3, 6 Gb/s
     PCIe Interface    1x8, 1x4 optional adapters*, 10GbE ready
     Installed OS    Linux
    Size of Workgroup   300

Internal Hard Drives   Type of Drive   Desktop HDDs
    Number of Bays   12
    Total Capacity   24TB, 36TB, 48TB, 72TB, 96TB, 120TB

LAN Interface   Connector Type   RJ-45
    LAN Ports   4, 10GbE ready
    Max Transmission Rate   10/100/1000 Mbps

USB Interface   Connector Type   USB Type A
    USB 2.0 Ports   6
    Max Transmission Rate   Max: 480 Mb/s

Serial Port   Connector Type   D-SUB 9pin
    Number of Ports   1

Monitor Port   Connector Type   VGA (for maintenance)
    Number of Ports   1

 Other    Client OS   Windows 10, Windows 8.1, Windows 8, Windows 7, Windows Vista, Windows XP, Windows Server 2000, Mac OS 10.4 - 10.9
    Support   Standard Warranty 3 years, 24 hour HDD exchange, Technical Support Hotline

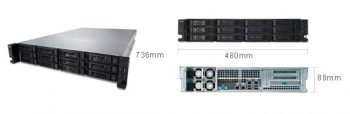

    Dimensions   736 x 480 x 88 mm
    Weight   25 kg
    Operating Environment   5-35°C, 20-80% (non-condensing)
    Power Supply   Internal, 2 x (Redundant) AC 100-240V 50/60Hz
    Power Consumption (max.)   550 W
    Power Consumption (operation, typical)   220 W
    Redundant Power Supply   Yes
    Power Management System   Yes

Software System   Supported RAID Levels   JBOD, 0, 1, 5, 6, 10, 51, 61
    Hot Swap   Yes
    Hot Spare   Yes
    Video Surveillance Package   One free camera license, more can be added, manages storage pool and camera pool supports cameras from 184 vendors and manual settings for RTSP
    DFS   DFS namespace support
    User Quota   Space limitation for users/groups
    iSCSI   iSCSI Target

Protocol Support   Networking   TCP/IP
    File Sharing   CIFS/SMB, AFP, HTTP/HTTPS, FTP/SFTP, NFS
    Protocol Support   TCP/IP, CIFS/SMB, DFS, AFP, HTTP/HTTPS, FTP/SFTP, NFS, LDAP, NTP, SNMP, RTSP, BitTorrent
    Other   IP Camera Support, Disk quota, User quota, Wake on LAN, DLNA Media Server, Print Server Support
    Active Directory support   Yes
    Active Directory Integration   LDAP
    Active Directory users   1000
    Management   HTTP/HTTPS
    Time Synchronization   NTP
    Camera   RTSP

Backup   Failover   Failover solution with other Buffalo NAS devices
    Realtime Backup   Folder Replication, Failover
    Replication   Yes
    Apple Time Machine®   Yes
    Backup Software Licenses   11 licenses NovaBACKUP Buffalo Edition for Windows Clients: 1 server license, 10 PC licenses

Remote Access   Web UI   via HTTP/HTTPS
    FTP Server   via FTP/SFTP
    WebAccess   Yes
    FTP/SFTP   Yes

Product Part Numbers   Product Code   TS‑2RZH24T12D‑EU - 24TB, TS‑2RZH36T12D‑EU - 36TB, TS‑2RZH48T12D‑EU - 48TB, TS‑2RZH72T12D‑EU - 72 TB, TS‑2RZH96T12D‑EU - 96TB
    Note   *Supported PCIe adapters: 10 Gb NIC Intel X540T2, E10G42BTDA/BFSR, E10G41BFSR/AT2; Emulex OCe11102-N/I/F; USB 3.0 Buffalo IFC-PCIE2U3S2



Have more questions about Network Attached Storage products and solutions? Call us at 410-583-1701 or email us at questions@pulsesupply.com.
