NorthStar - NSB 90TT HT RED

Battery, Pure Lead - High Temp




The NSB 90TT HT Red Battery® delivers long life in unreliable grid conditions even at high temperatures.NSB 90TT HT RED - Battery - Pulse Supply



Key Features



  • Pure lead electrochemistry greatly increases temp and corrosion resistance while reducing component aging
  • Thin plates deliver large surface area high power density and low resistance
  • Design life 15+ years at 20°C (68°F)
  • Extra-long life at high temp operation 40°C (104°F)
  • EUROBAT design life definition: Very Long Life (12+ years)
  • Advanced 3 stage terminal design to ensure leak-free operation - brass terminals provide maximum performance
  • Approved as non-hazardous cargo for ground, sea, and air transport DOT 49CFR173.159(d), (I), and (ii)
  • Fast recharging
  • High cyclic performance
  • Flame retardant (UL 94 VO) and LOI of at least 28%
  • Shelf life of up to 24 months
  • Operating temperature range -40°C to +65°C (-40°F to 149°F)
  • State-of-the-art automated manufacturing ensures consistency and reliability
  • High modulus Polyphenylene Oxide (PPO) plastic materials designed to withstand extended elevated operating temperatures and maintain high battery compression essential for reliable operation
  • Non-halogenated thermally sealed plastic casing





Electrical

Terminal Female M6 x 1.0
Terminal torque 8.0 Nm (71 in-lbs)
1 hr capacity to 1.70VPC @ 20/25°C (68/77°F) 74 / 77 Ah
3 hr capacity to 1.75VPC @ 20/25°C (68/77°F) 86 / 89 Ah
8 hr capacity to 1.75VPC @ 20/25°C (68/77°F) 94 / 96 Ah
10 hr capacity to 1.80VPC @ 20/25°C (68/77°F) 96 / 97 Ah
Float voltage @ 20/25°C (68/77°F) 2.28 / 2.27 VPC
Impedance (1Khz) 2.8 mΩ @ 25°C (77°F)
Conductance 1803 S
Short circuit current 3600 A
Operation temperature range -40°C to +65°C
Nominal voltage 12 V



Dimensions

Height 8.4 in
Width 6.8 in
Length 13.4 in
Weight 76 lbs


 * All NorthStar batteries are compliant with: Telcordia SR4228, IEC 60896; Bellcore GR-63-Core, Issue 1; British, German, and Russian telecom standards; UL approved and UN2800 certified. NorthStar is registered to ISO 9001 and ISO 14001.

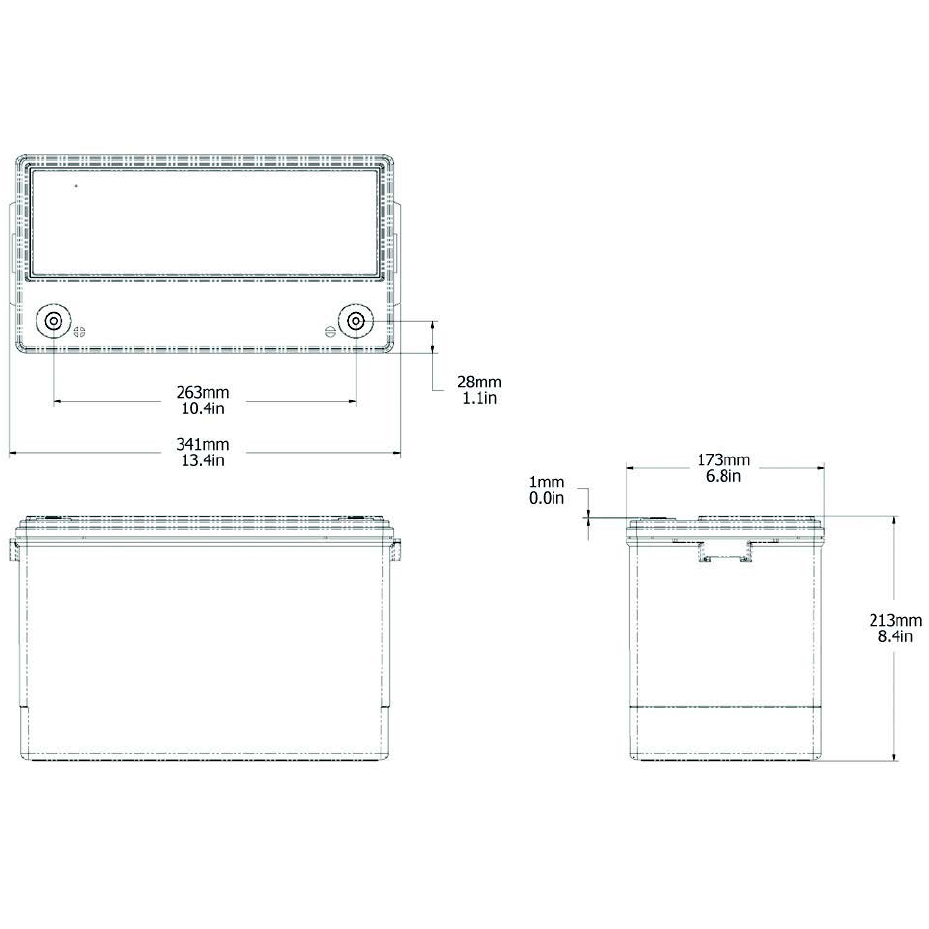

nsb 90tt ht red - diagram
