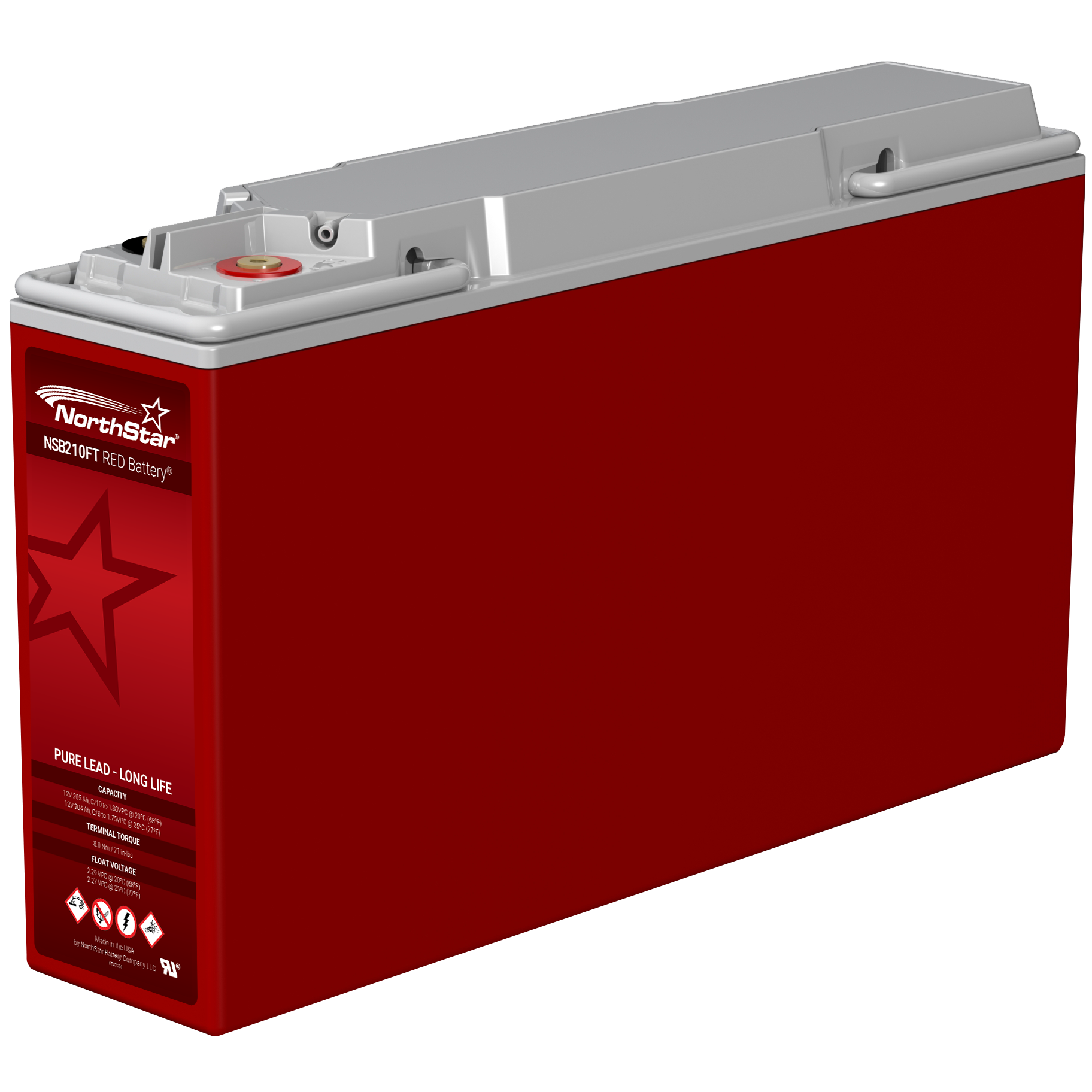

NorthStar - NSB 210FT RED
Battery, Pure Lead - Long Life
The NSB 210FT Red Battery® delivers long life in unreliable grid conditions.
Key Features
- Pure lead electrochemistry greatly increases temp and corrosion resistance, while reducing component aging
- Thin plates deliver large surface area, high power density, and low resistance
- Design life 15+ years at 20°C (68°F)
- EUROBAT design life definition: Very Long Life (12+ years)
- Fast recharging
- Operating temperature range -40°C to +65°C (-40°F to 149°F)
- State-of-the-art automated manufacturing ensures consistency and reliability
- Shelf life of up to 24 months
- Advanced 3 stage terminal design to ensure leak-free operation - brass terminals provide maximum performance
- High modulus Polyphenylene Oxide (PPO) plastic materials designed to withstand extended elevated operating temperatures and maintain high battery compression essential for reliable operation
- Non-halogenated, thermally sealed plastic casing
- Flame retardant (UL 94 VO) and LOI of at least 28%
- Approved as non-hazardous cargo for ground, sea, and air transport - DOT 49CFR173.159(d), (I), and (ii)
Electrical
| Terminal | Female M8 x 1.25 |
|---|---|
| Terminal torque | 8.0 Nm (71 in-lbs) |
| 1 hr capacity to 1.70VPC @ 20/25°C (68/77°F) | 142 / 148 Ah |
| 3 hr capacity to 1.75VPC @ 20/25°C (68/77°F) | 177 / 182 Ah |
| 8 hr capacity to 1.75VPC @ 20/25°C (68/77°F) | 200 / 204 Ah |
| 10 hr capacity to 1.80VPC @ 20/25°C (68/77°F) | 204 / 207 Ah |
| Float voltage @ 20/25°C (68/77°F) | 2.28 / 2.27 VPC |
| Impedance (1Khz) | 2.8 mΩ @ 25°C (77°F) |
| Conductance | 1920 S |
| Short circuit current | 5400 A |
| Operation temperature range | -40°C to +65°C (-40°F to 149°F) |
| Nominal voltage | 12 V |

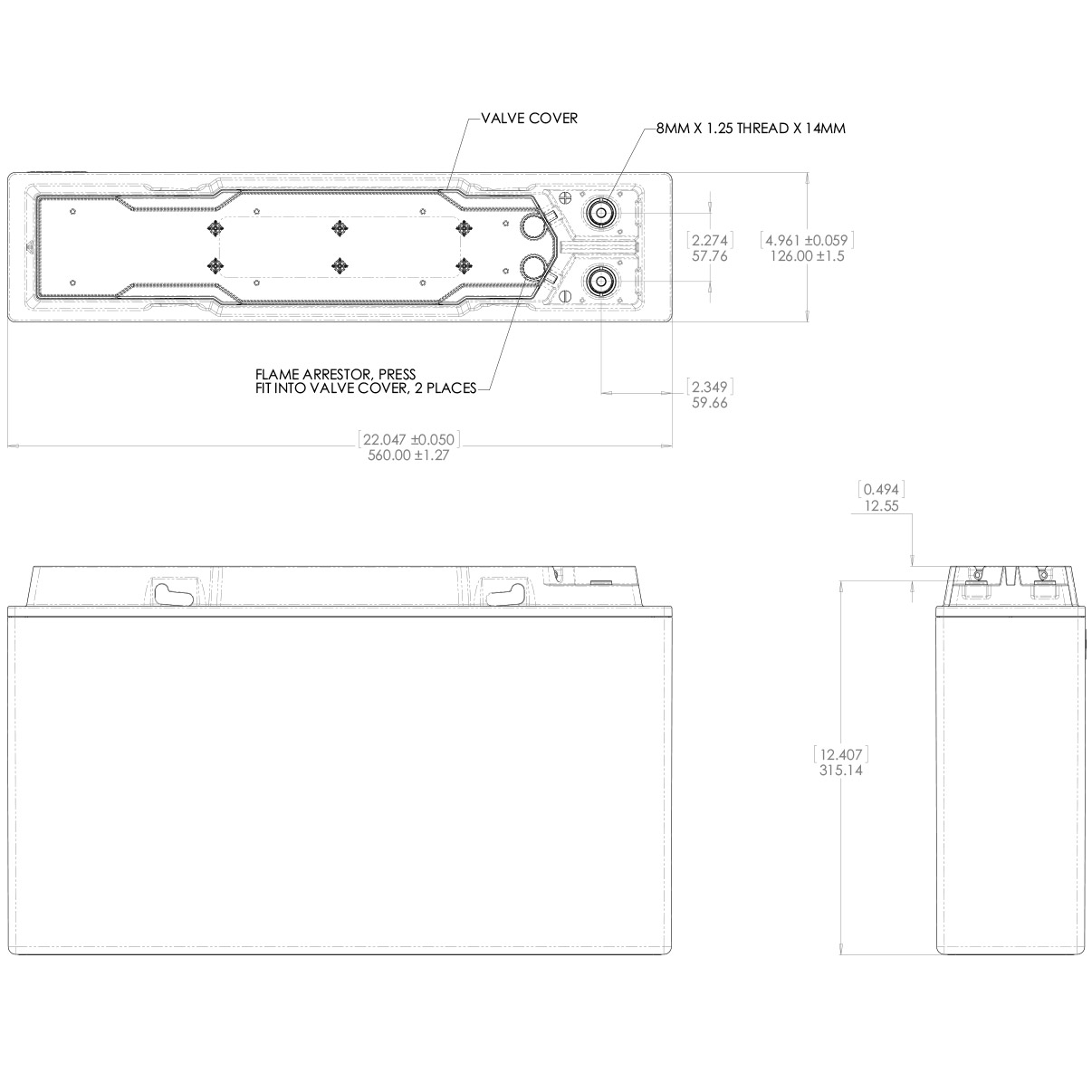

Dimensions
| Height | 12.9 in |
|---|---|
| Width | 4.96 in |
| Length | 22 in |
| Weight | 132 lbs |
* All NorthStar batteries are compliant with: Telcordia SR4228, IEC 60896; Bellcore GR-63-Core, Issue 1; British, German, and Russian telecom standards; UL approved and UN2800 certified. NorthStar is registered to ISO 9001 and ISO 14001.
