NorthStar - NSB 110FT HT RED
Battery, Pure Lead - High Temp

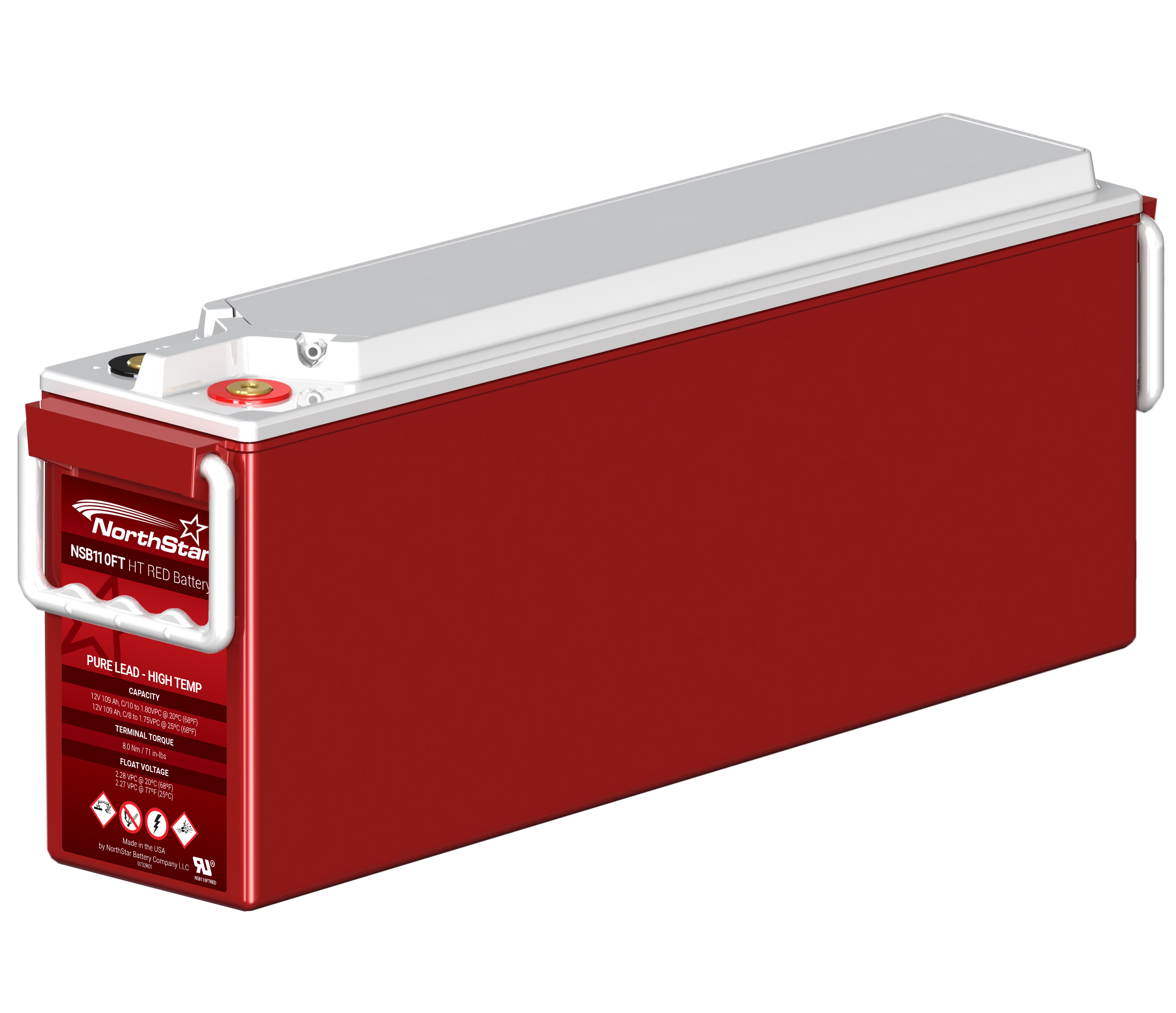

The NSB 110FT HT Red Battery® delivers long life in unreliable grid conditions even at high temperatures.![NSB 110FT HT RED - Battery - Pulse Supply - Get Quote and Buy from Pulse Supply NSB 110FT HT RED - Battery - Pulse Supply](/images/northstar/nsb_110ft_ht_red.png)
Key Features
- Pure lead electrochemistry greatly increases temp and corrosion resistance while reducing component aging
- Thin plates deliver large surface area high power density and low resistance
- Design life 15+ years at 20°C (68°F)
- Extra-long life at high temp operation 40°C (104°F)
- EUROBAT design life definition: Very Long Life (12+ years)
- Advanced 3 stage terminal design to ensure leak-free operation - brass terminals provide maximum performance
- Approved as non-hazardous cargo for ground, sea, and air transport DOT 49CFR173.159(d), (I), and (ii)
- Fast recharging
- High cyclic performance
- Flame retardant (UL 94 VO) and LOI of at least 28%
- Shelf life of up to 24 months
- Operating temperature range -40°C to +65°C (-40°F to 149°F)
- State-of-the-art automated manufacturing ensures consistency and reliability
- High modulus Polyphenylene Oxide (PPO) plastic materials designed to withstand extended elevated operating temperatures and maintain high battery compression essential for reliable operation
- Non-halogenated thermally sealed plastic casing
Electrical
Terminal | Female M8 x 1.25 |
---|---|
Terminal torque | 8.0 Nm (71 in-lbs) |
1 hr capacity to 1.70VPC @ 20/25°C (68/77°F) | 82 / 85 Ah |
3 hr capacity to 1.75VPC @ 20/25°C (68/77°F) | 97 / 99 Ah |
8 hr capacity to 1.75VPC @ 20/25°C (68/77°F) | 107 / 109 Ah |
10 hr capacity to 1.80VPC @ 20/25°C (68/77°F) | 109 / 110 Ah |
Float voltage @ 20/25°C (68/77°F) | 2.28 / 2.27 VPC |
Impedance (1Khz) | 2.7 mΩ @ 25°C (77°F) |
Conductance | 1724 S |
Short circuit current | 3800 A |
Operation temperature range | -40°C to +65°C |
Nominal voltage | 12 V |
Dimensions
Height | 8.9 in |
---|---|
Width | 4.9 in |
Length | 22 in |
Weight | 86 lbs |
* All NorthStar batteries are compliant with: Telcordia SR4228, IEC 60896; Bellcore GR-63-Core, Issue 1; British, German, and Russian telecom standards; UL approved and UN2800 certified. NorthStar is registered to ISO 9001 and ISO 14001.
![nsb 100ft ht red - diagram - Pulse Supply nsb 110ft ht red - diagram](/images/northstar/nsb_110ft_ht_red_diagram.jpg)
