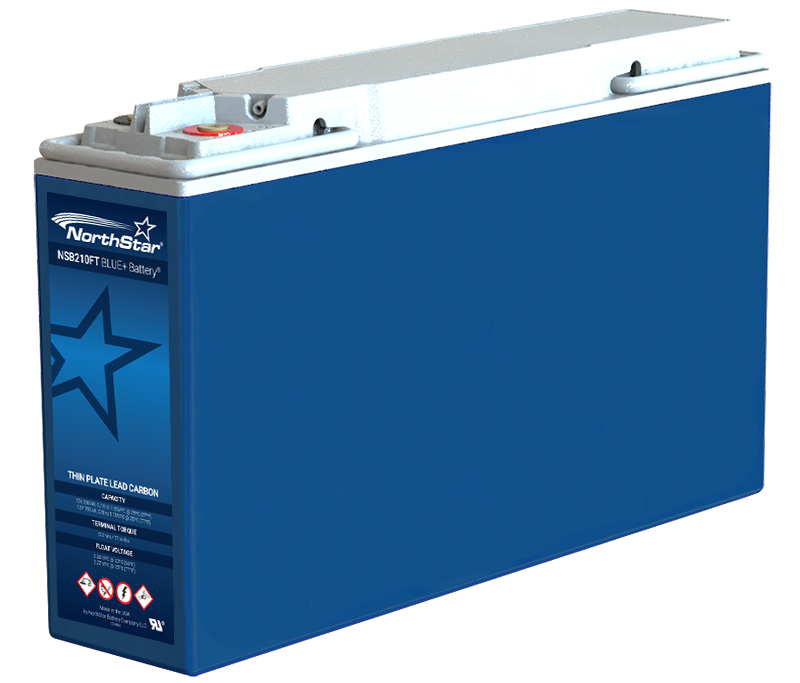

NorthStar - NSB 210FT BLUE+
Battery, Thin Plate Lead Carbon
The NSB 210FT BLUE+ Battery® delivers ultra-fast recharge and exceptional PSoC cycling performance.
Key Features
- Exceptional PSoC cyclic performance 2050 cycles @50% DoD
- Design life 12+ years at 20°C (68°F)
- EUROBAT design life definition: Very Long Life (12+ years)
- Ultra-fast recharge
- Shelf life of up to 24 months
- High modulus Polyphenylene Oxide (PPO) plastic materials designed to withstand extended elevated operating temperatures and maintain high battery compression essential for reliable operation
- Flame retardant (UL 94 VO) and LOI of at least 28%
- Lead carbon added to negative electrodes increases power and reduces sulfation
- High potential fuel savings when used with hybrid genset applications
- Operating temperature range -40°C to +65°C (-40°F to 149°F)
- State-of-the-art automated manufacturing ensures consistency and reliability
- Advanced 3 stage terminal design to ensure leak-free operation - brass terminals provide maximum performance
- Non-halogenated thermally sealed plastic casing
- Approved as non-hazardous cargo for ground sea and air transport DOT 49CFR173.159(d), (I), and (ii)
Electrical
| Terminal | Female M8 x 1.25 |
|---|---|
| Terminal torque | 8.0 Nm (71 in-lbs) |
| 10 hr capacity to 1.80VPC @ 25°C (77°F) | 200 Ah |
| 8 hr capacity to 1.75VPC @ 25°C (77°F) | 198 Ah |
| Float voltage @ 20/25°C (68/77°F) | 2.28 / 2.27 VPC |
| Impedance (1Khz) | 2.6 mΩ @ 25°C (77°F) |
| Conductance | 2211 S |
| Short circuit current | 6000 A |
| Maximum charge current (A) | No Limit |
| Operation temperature range | -40°C to +65°C |
| Nominal voltage | 12 V |

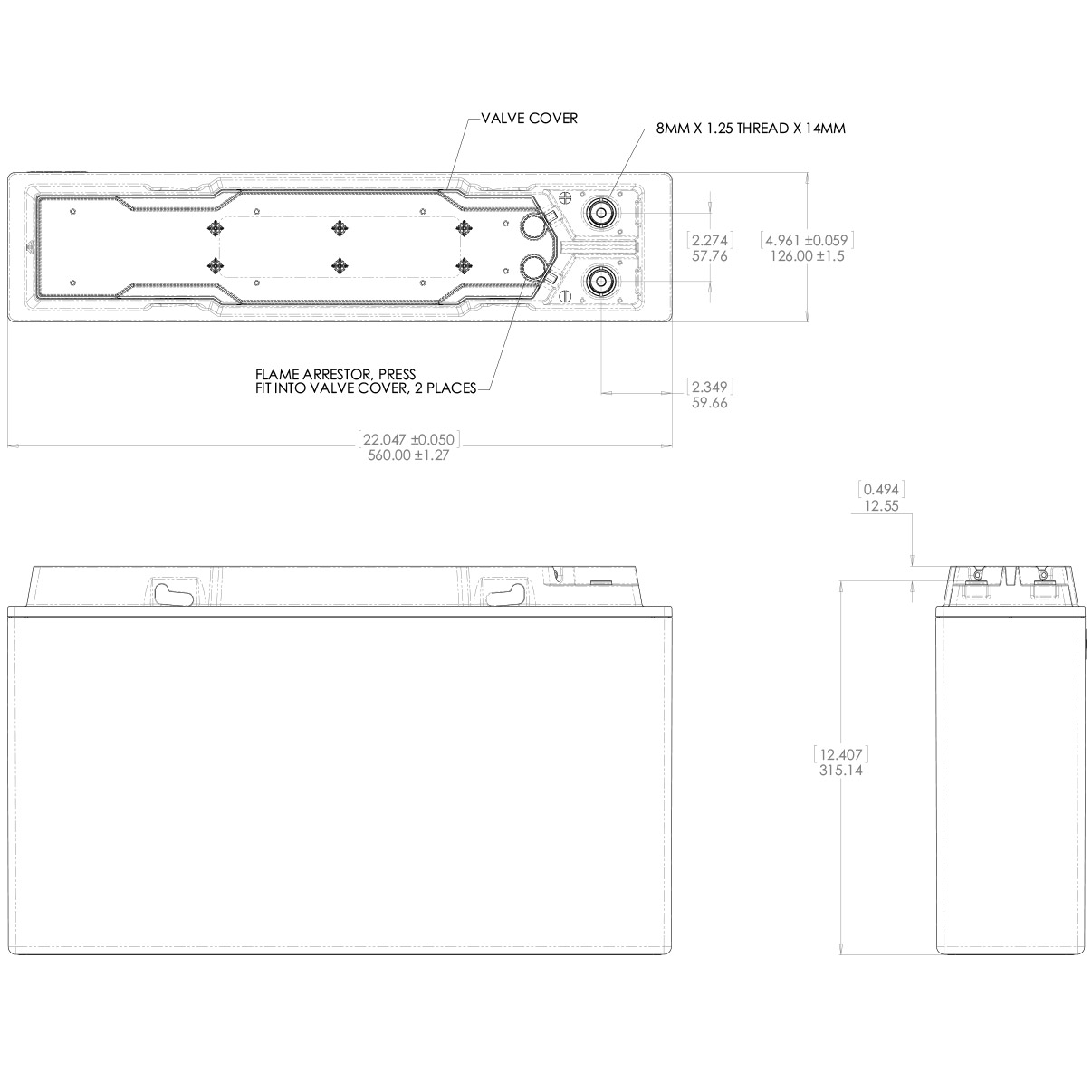

Dimensions
| Height | 12.9 in |
|---|---|
| Width | 4.96 in |
| Length | 22 in |
| Weight | 152 lbs |
* All NorthStar batteries are compliant with: Telcordia SR4228, IEC 60896; Bellcore GR-63-Core, Issue 1; British, German, and Russian telecom standards; UL approved and UN2800 certified. NorthStar is registered to ISO 9001 and ISO 14001.
Have more questions about NorthStar Batteries and Power Reserve solutions? Need to Purchase NorthStar Products? Call us at 410-583-1701 or email us at questions@pulsesupply.com.
