NorthStar - NSB 190FT BLUE+

Battery, Thin Plate Lead Carbon




The NSB 190FT BLUE+ Battery® delivers ultra-fast recharge and exceptional PSoC cycling performance.NSB 190FT Blue + - Battery - Pulse Supply



Key Features



  • Exceptional PSoC cyclic performance 2050 cycles @50% DoD
  • Design life 12+ years at 20°C (68°F)
  • EUROBAT design life definition: Very Long Life (12+ years)
  • Ultra-fast recharge
  • Shelf life of up to 24 months
  • High modulus Polyphenylene Oxide (PPO) plastic materials designed to withstand extended elevated operating temperatures and maintain high battery compression essential for reliable operation
  • Flame retardant (UL 94 VO) and LOI of at least 28%
  • Lead carbon added to negative electrodes increases power and reduces sulfation
  • High potential fuel savings when used with hybrid genset applications
  • Operating temperature range -40°C to +65°C (-40°F to 149°F)
  • State-of-the-art automated manufacturing ensures consistency and reliability
  • Advanced 3 stage terminal design to ensure leak-free operation - brass terminals provide maximum performance
  • Non-halogenated thermally sealed plastic casing
  • Approved as non-hazardous cargo for ground sea and air transport DOT 49CFR173.159(d), (I), and (ii)





Electrical

Terminal Female M8 x 1.25
Terminal torque 8.0 Nm (71 in-lbs)
10 hr capacity to 1.80VPC @ 25°C (77°F) 183 Ah
8 hr capacity to 1.75VPC @ 25°C (77°F) 180 Ah
Float voltage @ 20/25°C (68/77°F) 2.28 / 2.27 VPC
Impedance (1Khz) 2.3 mΩ @ 25°C (77°F)
Conductance 2240 S
Short circuit current 6000 A
Maximum charge current (A) No Limit
Operation temperature range -40°C to +65°C
Nominal voltage 12 V

Dimensions

Height 12.6 in
Width 4.9 in
Length 22 in
Weight 136 lbs


 * All NorthStar batteries are compliant with: Telcordia SR4228, IEC 60896; Bellcore GR-63-Core, Issue 1; British, German, and Russian telecom standards; UL approved and UN2800 certified. NorthStar is registered to ISO 9001 and ISO 14001.

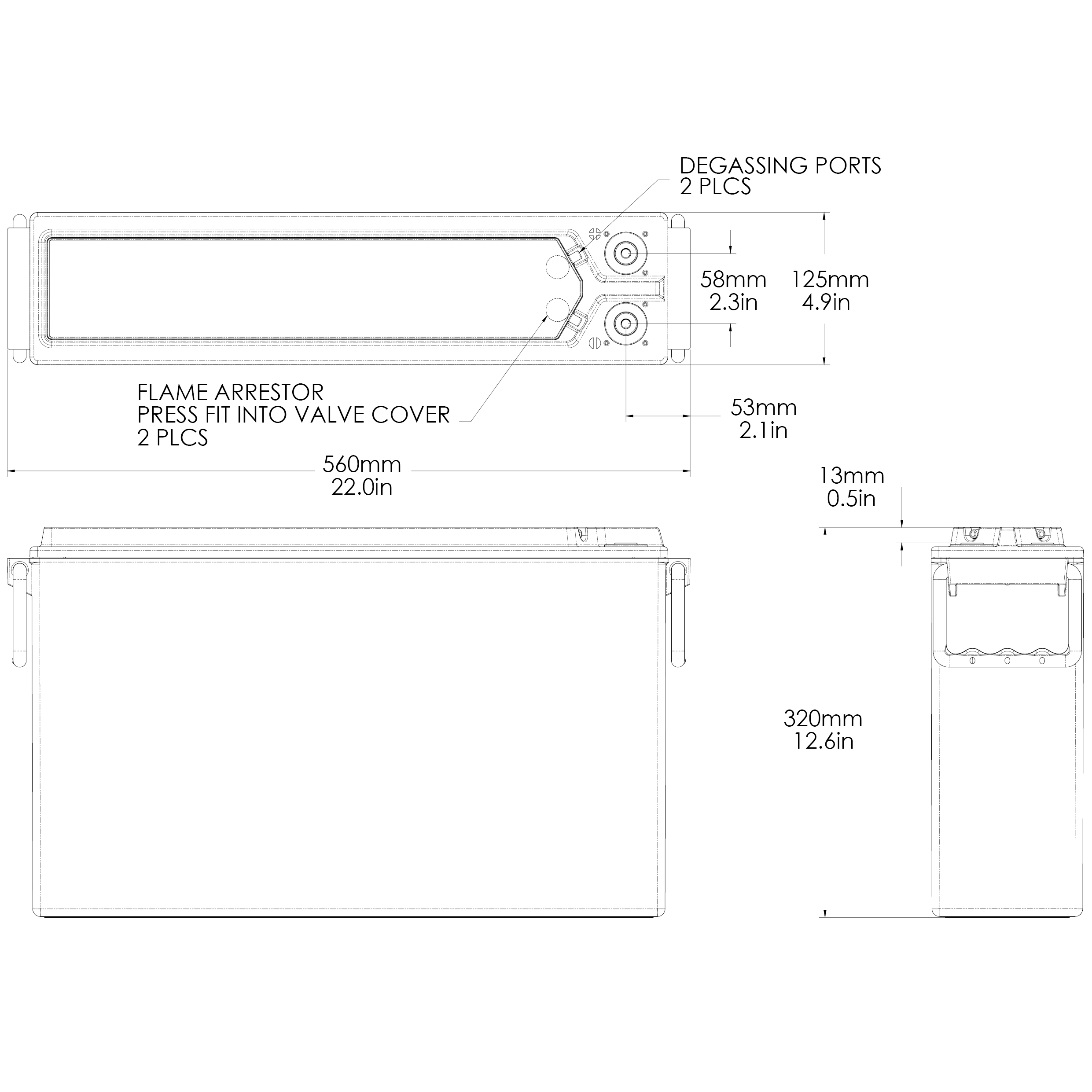

nsb 190ft blue - diagram
