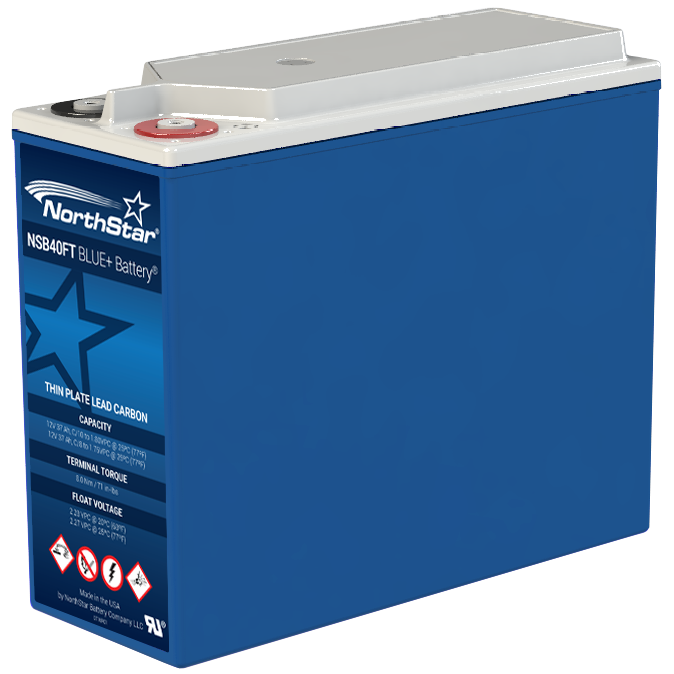

NorthStar - NSB 40FT BLUE+
Battery, Thin Plate Lead Carbon
The NSB 40FT BLUE+ Battery® delivers ultra-fast recharge and exceptional PSoC cycling performance.
Key Features
- Exceptional PSoC cyclic performance 2050 cycles @50% DoD
- Design life 12+ years at 20°C (68°F)
- EUROBAT design life definition: Very Long Life (12+ years)
- Ultra-fast recharge
- Shelf life of up to 24 months
- High modulus Polyphenylene Oxide (PPO) plastic materials designed to withstand extended elevated operating temperatures and maintain high battery compression essential for reliable operation
- Flame retardant (UL 94 VO) and LOI of at least 28%
- Lead carbon added to negative electrodes increases power and reduces sulfation
- High potential fuel savings when used with hybrid genset applications
- Operating temperature range -40°C to +65°C (-40°F to 149°F)
- State-of-the-art automated manufacturing ensures consistency and reliability
- Advanced 3 stage terminal design to ensure leak-free operation - brass terminals provide maximum performance
- Non-halogenated thermally sealed plastic casing
- Approved as non-hazardous cargo for ground sea and air transport DOT 49CFR173.159(d), (I), and (ii)
Electrical
| Terminal | Female M6 x 1.0 |
|---|---|
| Terminal torque | 8.0 Nm (71 in-lbs) |
| 10 hr capacity to 1.80VPC @ 25°C (77°F) | 37 Ah |
| 8 hr capacity to 1.75VPC @ 25°C (77°F) | 37 Ah |
| Float voltage @ 20/25°C (68/77°F) | 2.28 / 2.27 VPC |
| Impedance (1Khz) | 3.9 mΩ @ 25°C (77°F) |
| Conductance | 1114 S |
| Short circuit current | 1500 A |
| Maximum charge current (A) | No Limit |
| Operation temperature range | -40°C to +65°C |
| Nominal voltage | 12 V |

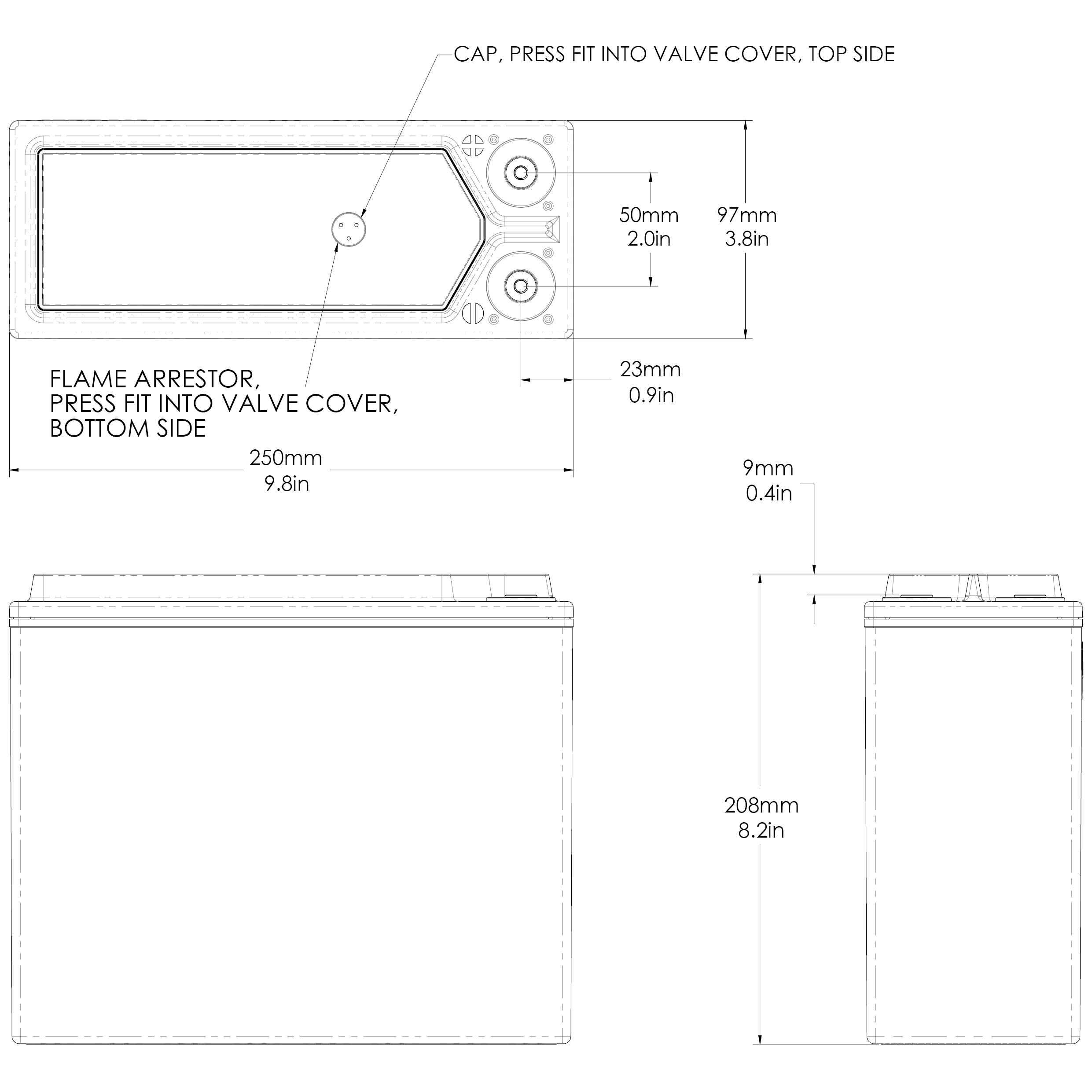

Dimensions
| Height | 8.2 in |
|---|---|
| Width | 3.8 in |
| Length | 9.8 in |
| Weight | 31 lbs |
* All NorthStar batteries are compliant with: Telcordia SR4228, IEC 60896; Bellcore GR-63-Core, Issue 1; British, German, and Russian telecom standards; UL approved and UN2800 certified. NorthStar is registered to ISO 9001 and ISO 14001.
