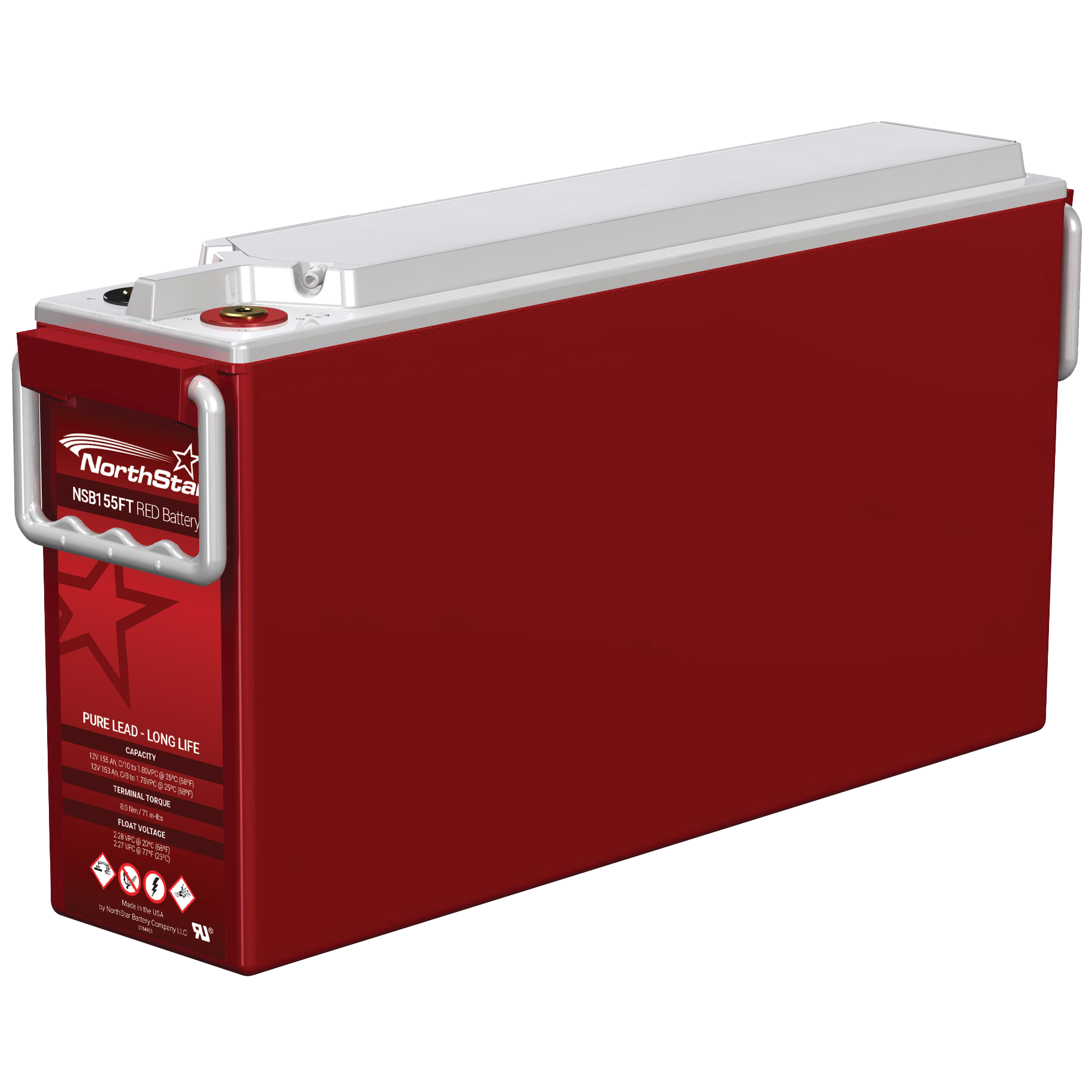

NorthStar - NSB 155FT RED

Battery, Pure Lead - Long Life




The NSB 155FT Red Battery® delivers long life in unreliable grid conditions.NSB 155FT RED - Battery - Pulse Supply



Key Features



  • Pure lead electrochemistry greatly increases temp and corrosion resistance, while reducing component aging
  • Thin plates deliver large surface area, high power density, and low resistance
  • Design life 15+ years at 20°C (68°F)
  • EUROBAT design life definition: Very Long Life (12+ years)
  • Fast recharging
  • Operating temperature range -40°C to +65°C (-40°F to 149°F)
  • State-of-the-art automated manufacturing ensures consistency and reliability
  • Shelf life of up to 24 months
  • Advanced 3 stage terminal design to ensure leak-free operation - brass terminals provide maximum performance
  • High modulus Polyphenylene Oxide (PPO) plastic materials designed to withstand extended elevated operating temperatures and maintain high battery compression essential for reliable operation
  • Non-halogenated, thermally sealed plastic casing
  • Flame retardant (UL 94 VO) and LOI of at least 28%
  • Approved as non-hazardous cargo for ground, sea, and air transport - DOT 49CFR173.159(d), (I), and (ii)





Electrical

Terminal Female M8 x 1.25
Terminal torque 8.0 Nm (71 in-lbs)
1 hr capacity to 1.70VPC @ 20/25°C (68/77°F) 106 / 110 Ah
3 hr capacity to 1.75VPC @ 20/25°C (68/77°F) 133 / 137 Ah
8 hr capacity to 1.75VPC @ 20/25°C (68/77°F) 150 / 153 Ah
10 hr capacity to 1.80VPC @ 20/25°C (68/77°F) 153 / 155 Ah
Float voltage @ 20/25°C (68/77°F) 2.28 / 2.27 VPC
Impedance (1Khz) 3.1 mΩ @ 25°C (77°F)
Conductance 1648 S
Short circuit current 4200 A
Operation temperature range -40°C to +65°C
Nominal voltage 12 V


Dimensions

Height 11 in
Width 4.9 in
Length 22 in
Weight 101 lbs


 * All NorthStar batteries are compliant with: Telcordia SR4228, IEC 60896; Bellcore GR-63-Core, Issue 1; British, German, and Russian telecom standards; UL approved and UN2800 certified. NorthStar is registered to ISO 9001 and ISO 14001.

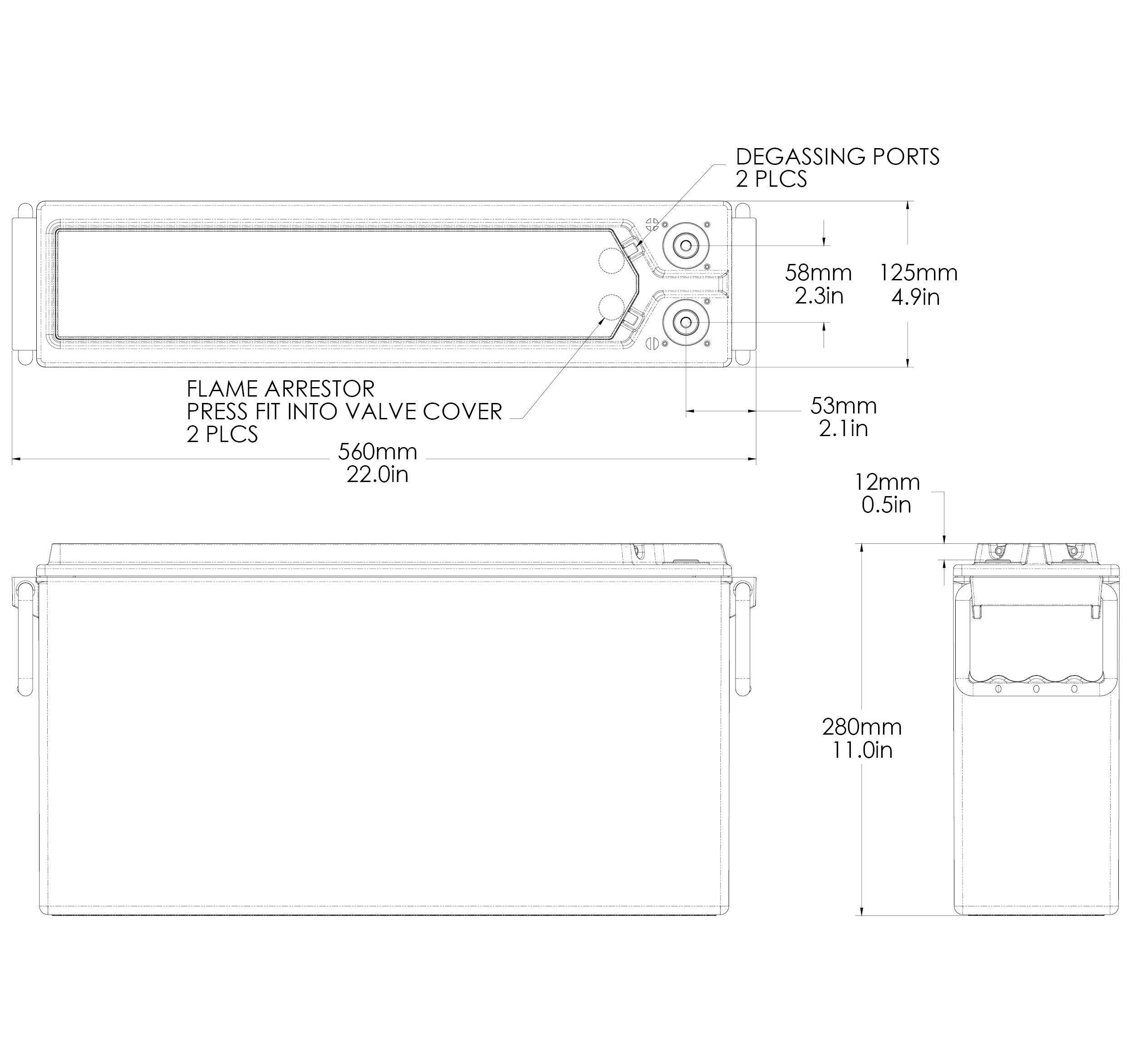

nsb 155ft red - diagram
