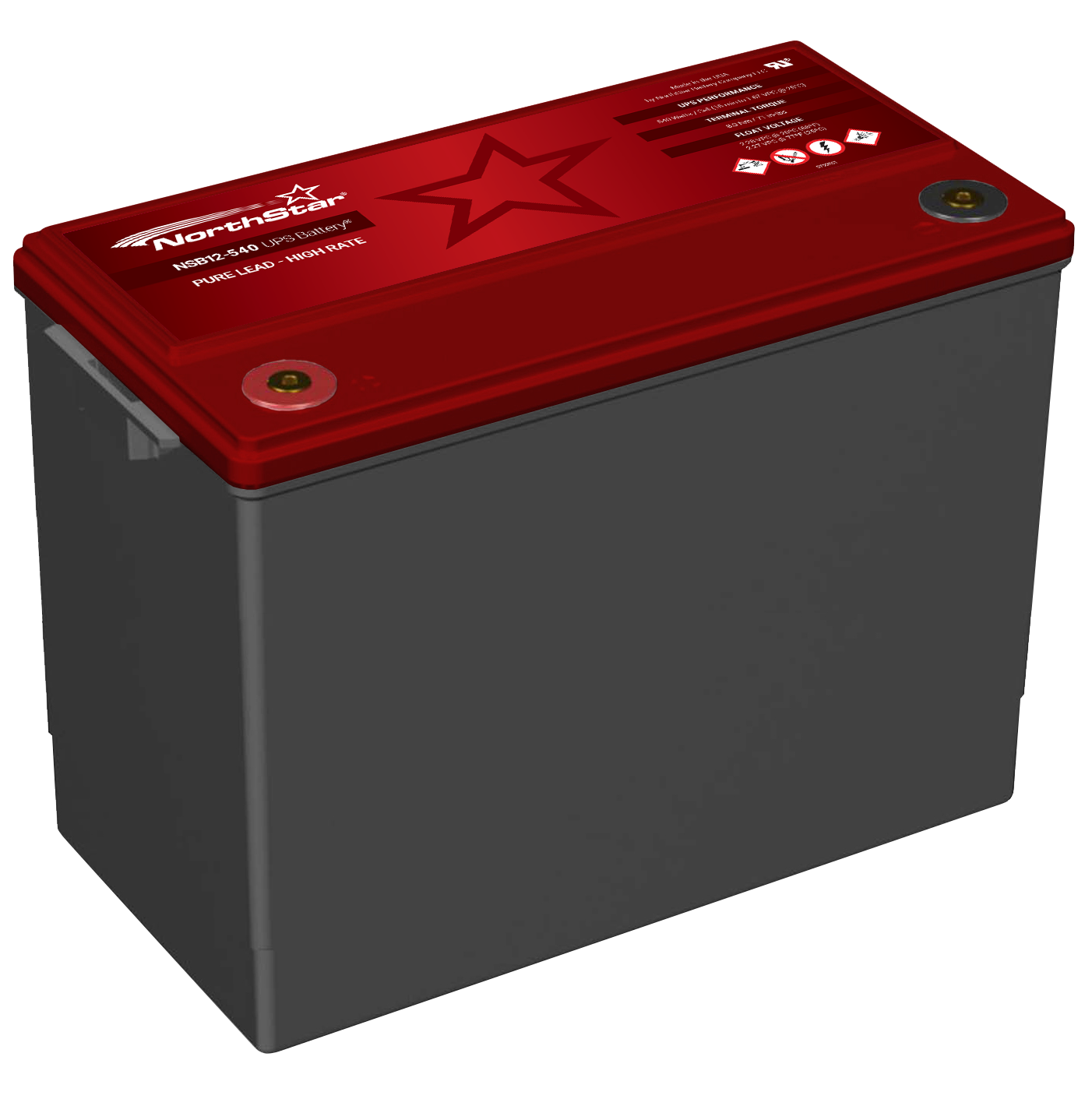

NorthStar - NSB 12-540
Battery, Pure Lead - High Rate
The NSB 12-540 UPS Battery® delivers superior performance at high discharge rates down to <15 mins.
Key Features
- Performance excels at high rates of discharge and recharge
- Pure lead electrochemistry greatly increases temp and corrosion resistance while reducing component aging
- Thin plates deliver large surface area high power density and low resistance
- Design life 15+ years at 20°C (68°F)
- EUROBAT design life definition: Very Long Life (12+ years)
- High modulus Polyphenylene Oxide (PPO) plastic materials designed to withstand extended elevated operating temperatures and maintain high battery compression essential for reliable operation
- Flame retardant (UL 94 VO) and LOI of at least 28%
- High energy density
- Operating temperature range -40°C to +65°C (-40°F to 149°F)
- State-of-the-art automated manufacturing ensures consistency and reliability
- Advanced 3 stage terminal design to ensure leak-free operation - brass terminals provide maximum performance\
- Non-halogenated thermally sealed plastic casing
- Approved as non-hazardous cargo for ground, sea, and air transport DOT 49CFR173.159(d), (I), and (ii)
Electrical
| Terminal | Female M6 x 1.0 |
|---|---|
| Terminal torque | 8.0 Nm (71 in-lbs) |
| 4C (15min) power to 1.67 VPC | 540 Watts/Cell |
| Float voltage | 2.27 VPC |
| Shelf life | up to 24 months |
| Conductance | 1952 S |
| Impedance (1Khz) | 2.37 mΩ @ 25°C (77°F) |
| Short circuit current | 5000 A |
| Operation temperature range | -40°C to +65°C |
| Nominal voltage | 12 V |
| Silver equivalent | NSB 12-540 |

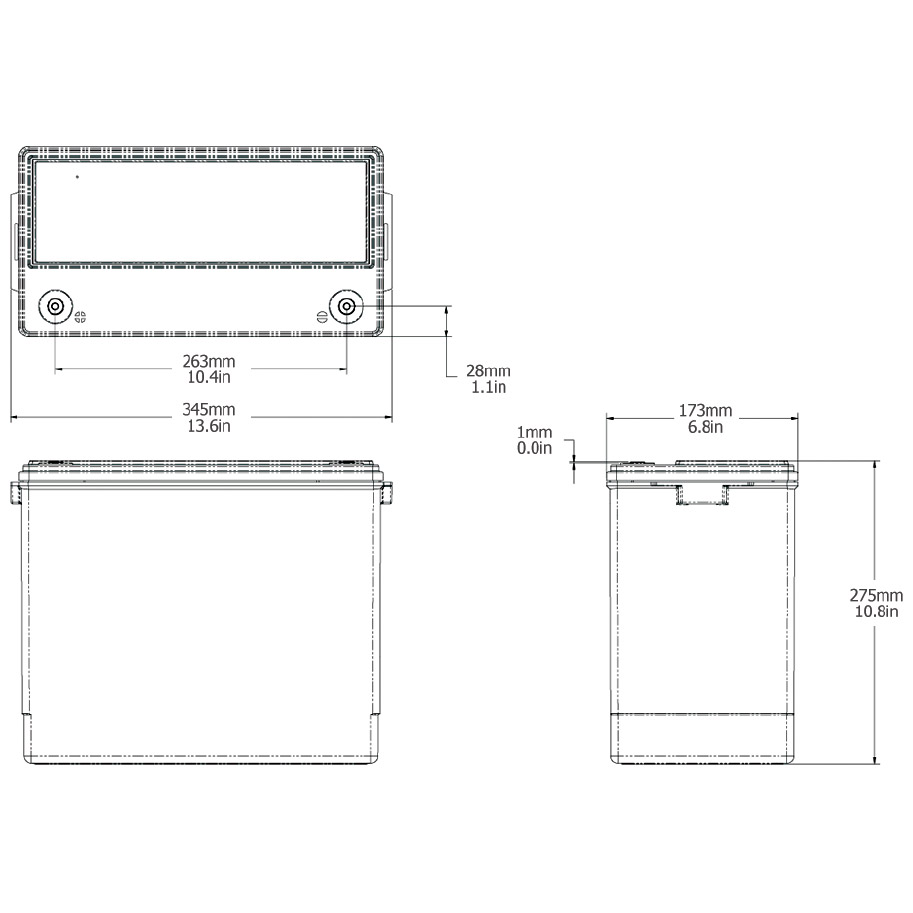

Dimensions
| Height | 10.8 in |
|---|---|
| Width | 6.8 in |
| Length | 13.6 in |
| Weight | 99 lbs |
Constant Power Discharge Ratings (WPC @ 25°C/77°F)
| End of discharge (Volts) | 2 min | 5 min | 10 min | 15 min | 20 min | 30 min | 45 min | 60 min | 120 min |
| 1.75 | 1083 | 858 | 630 | 502 | 420 | 319 | 236 | 189 | 106 |
| 1.70 | 1197 | 925 | 667 | 527 | 438 | 329 | 242 | 193 | 107 |
| 1.67 | 1259 | 961 | 687 | 540 | 447 | 335 | 245 | 194 | 107 |
| 1.65 | 1298 | 984 | 699 | 548 | 452 | 338 | 247 | 195 | 108 |
| 1.60 | 1381 | 1032 | 775 | 564 | 464 | 345 | 251 | 198 | 108 |
* All NorthStar batteries are compliant with: Telcordia SR4228, IEC 60896; Bellcore GR-63-Core, Issue 1; British, German, and Russian telecom standards; UL approved and UN2800 certified. NorthStar is registered to ISO 9001 and ISO 14001.
