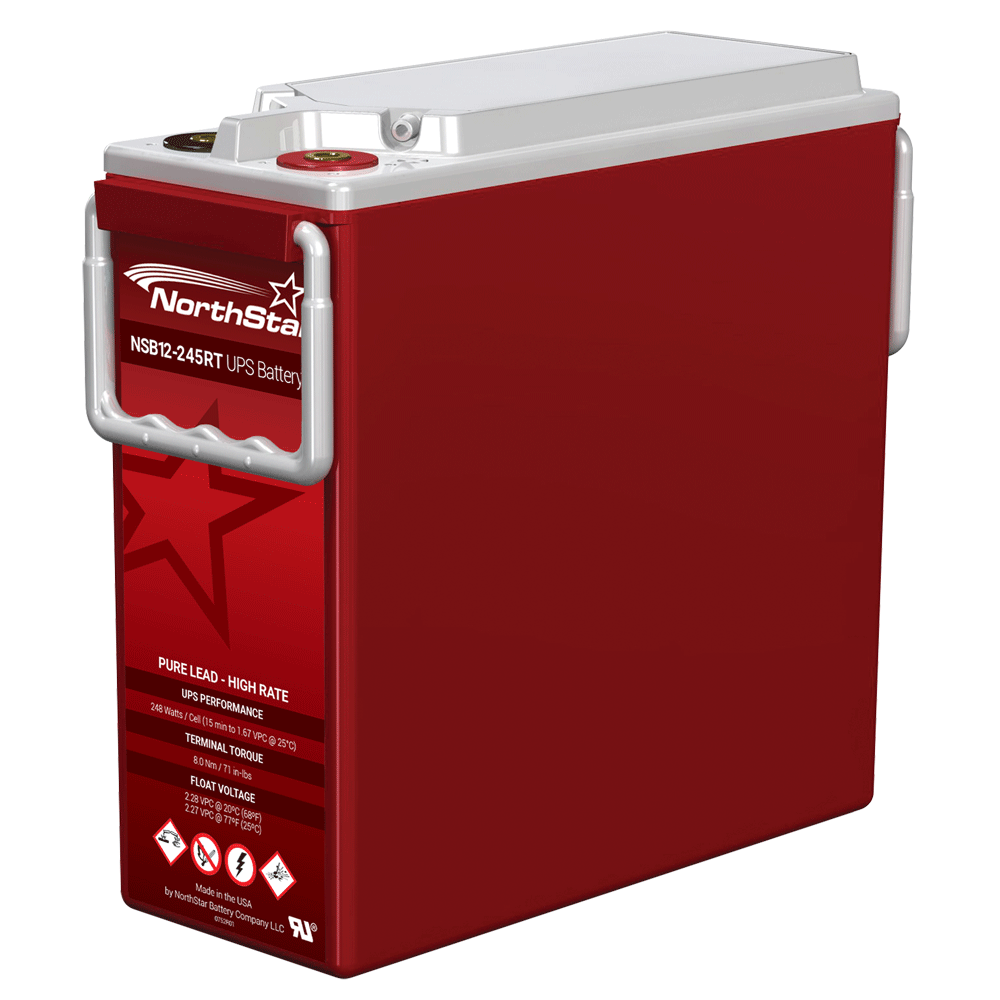

NorthStar - NSB 12-245RT
Battery, Pure Lead - High Rate
The NSB 12-245RT UPS Battery® delivers superior performance at high discharge rates down to <15 mins.
Key Features
- Performance excels at high rates of discharge and recharge
- Pure lead electrochemistry greatly increases temp and corrosion resistance while reducing component aging
- Thin plates deliver large surface area high power density and low resistance
- Design life 15+ years at 20°C (68°F)
- EUROBAT design life definition: Very Long Life (12+ years)
- High modulus Polyphenylene Oxide (PPO) plastic materials designed to withstand extended elevated operating temperatures and maintain high battery compression essential for reliable operation
- Flame retardant (UL 94 VO) and LOI of at least 28%
- High energy density
- Operating temperature range -40°C to +65°C (-40°F to 149°F)
- State-of-the-art automated manufacturing ensures consistency and reliability
- Advanced 3 stage terminal design to ensure leak-free operation - brass terminals provide maximum performance\
- Non-halogenated thermally sealed plastic casing
- Approved as non-hazardous cargo for ground, sea, and air transport DOT 49CFR173.159(d), (I), and (ii)
Electrical
| Terminal | Female M8 x 1.25 |
|---|---|
| Terminal torque | 8.0 Nm (71 in-lbs) |
| 4C (15min) power to 1.67 VPC | 248 Watts/Cell |
| Float voltage | 2.27 VPC |
| Shelf life | up to 24 months |
| Conductance | 1588 S |
| Impedance (1Khz) | 2.82 mΩ @ 25°C (77°F) |
| Short circuit current | 2100 A |
| Operation temperature range | -40°C to +65°C |
| Nominal voltage | 12 V |
| Silver equilvalent | NSB 12-225FT |

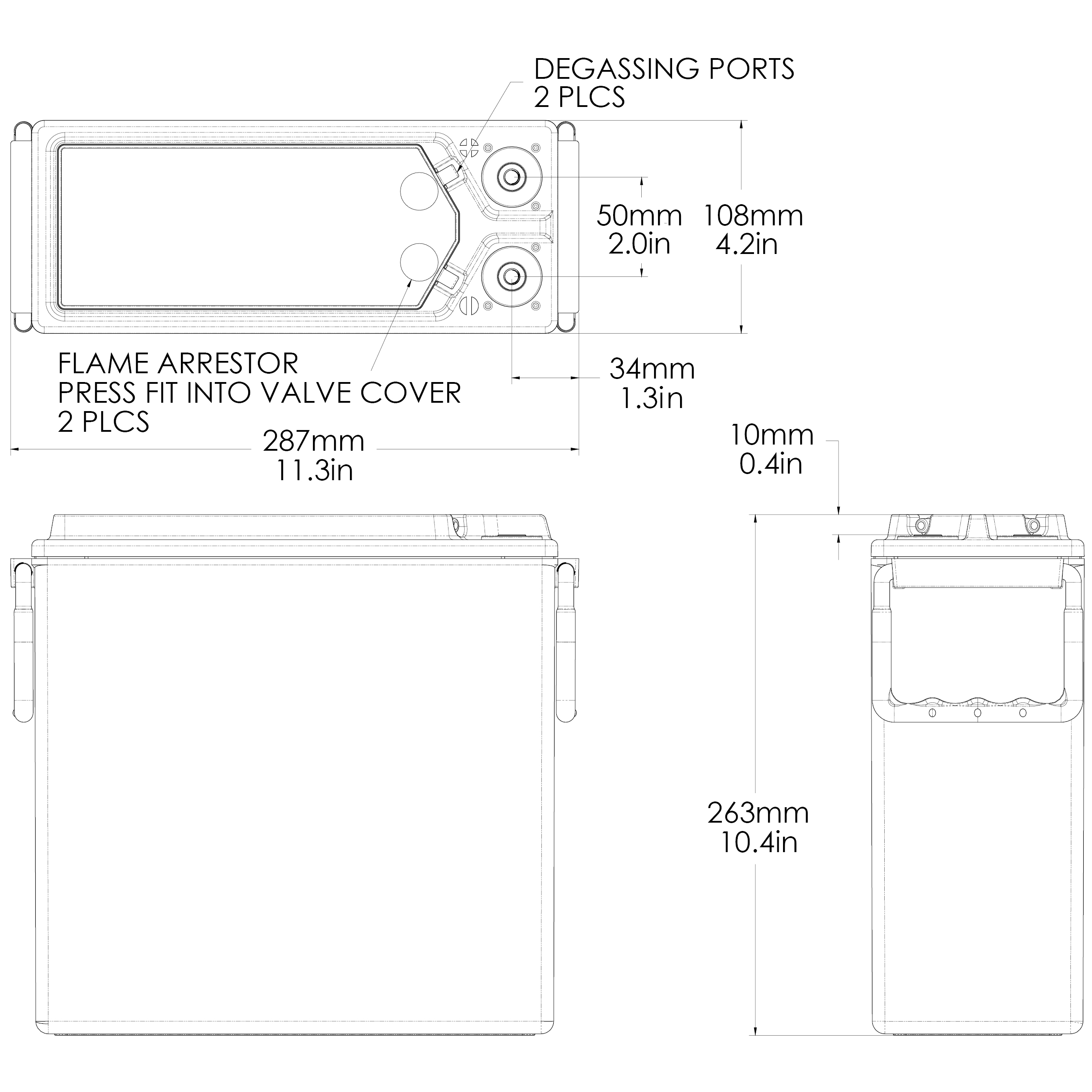

Dimensions
| Height | 10.4 in |
|---|---|
| Width | 4.2 in |
| Length | 11.3 in |
| Weight | 49 lbs |
Constant Power Discharge Ratings (WPC @ 25°C/77°F)
| End of discharge (Volts) | 2 min | 5 min | 10 min | 15 min | 20 min | 30 min | 45 min | 60 min | 120 min |
| 1.75 | 643 | 447 | 305 | 236 | 193 | 144 | 105 | 83 | 46 |
| 1.70 | 700 | 474 | 319 | 244 | 199 | 147 | 107 | 84 | 46 |
| 1.67 | 731 | 488 | 325 | 248 | 202 | 149 | 107 | 85 | 46 |
| 1.65 | 750 | 497 | 329 | 250 | 204 | 149 | 108 | 85 | 46 |
| 1.60 | 794 | 515 | 338 | 255 | 207 | 151 | 109 | 85 | 47 |
* All NorthStar batteries are compliant with: Telcordia SR4228, IEC 60896; Bellcore GR-63-Core, Issue 1; British, German, and Russian telecom standards; UL approved and UN2800 certified. NorthStar is registered to ISO 9001 and ISO 14001.
