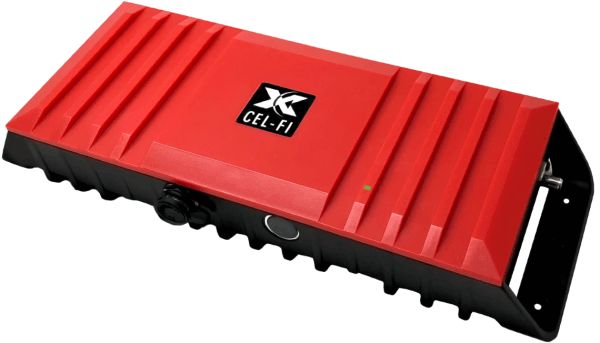

Cel-Fi GO RED - Evolved smart signal booster that delivers cellular coverage in buildings for FirstNet emergency communications



The evolved smart signal booster that delivers cellular coverage in buildings for FirstNet emergency communications.  Cel-Fi is a member of the Safer Buildings Coalition, which is an independent organization that’s focused on advancing policies, ideas, and technologies that ensure effective in-building communications capabilities for public safety personnel and the people they serve. FirstNet is a new network being rolled out for Public Safety Communication Devices. This high-speed, nationwide wireless broadband network will have dedicated bands for public safety agencies and first responders. Legacy equipment does not support FirstNet dedicated band.



     Cel-Fi GO RED - Evolved volved smart signal booster that delivers cellular coverage in buildings for FirstNet emergency communications



Key Features

  • Boost FirstNet Bands 12 and 14
  • 4G / LTE Voice and Data
  • Up to 15,000 ft2 (1,500 m2) of Coverage
  • Indoor / Outdoor NEMA 4 Rated



The Cel-Fi GO RED FirstNet Booster delivers cellular coverage in buildings for emergency communications from police, fire, and medical personnel. Cel-Fi GO RED with the Cel-Fi Antennas is the best way to ensure coverage in an emergency situation. Communication is not optional in critical times, rely on equipment that ensures the best coverage.





How it Works



Cel-Fi RED How it works Application


There are a number of Cel-Fi GO RED and antenna configurations based on the size of the building, building materials, and wall arrangements.







Tech Specs



Go RED Line Drawing application




















Configurations

Band 12/14
Band 3/20
(2 front-end receivers that relays 2 bands concurrently)

Rated Output Power

Uplink: 24dBm
Downlink: 16dBm

Frequency

Band 12:
___Downlink Frequency: 729 – 746 MHz
___Uplink Frequency: 699 – 716 MHz
Band 14:
___Downlink Frequency: 758 – 768 MHz
___Uplink Frequency: 788 – 798 MHz

Power

9.6 – 16.5V
2A current draw
16W nominal power consumption
NEMA 4 rated power plugs and jack

Environmental

Operating temperature: 0° to 65°C
Convection Cooling
Relative humidity: 0% to 95% (noncondensing)
RoHS 2 (European and China compliant)
WEEE
NEMA 4
Surface temp. (30° ambient): 53°C

Compliance

3GPP TS 25.143 Rel.10
3GPP TS 36.143 Rel.10
FCC Part 15, 90
Bluetooth BQB
CE

Physical Specifications

96.5 x 43.25 x 272.5 mm
850 g

Antenna Ports
(Donor and Server)

699 – 798 Mhz
Impedance: 50 Ohm

Model Numbers

G32-12/14
G32-3/20
