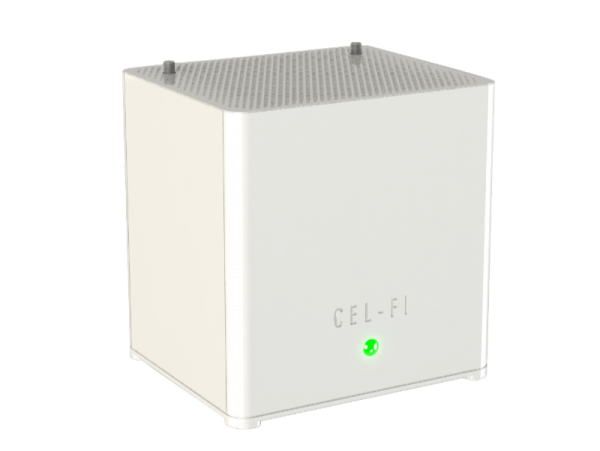

Cel-Fi Solo - 4th generation Smart Cellular Coverage Solution for small businesses and residential areas
The Cel-Fi SOLO Smart Signal Booster is designed to solve cellular coverage problems for voice and data. With up to 100dB of gain, it is the most powerful carrier-grade solution available. The Cel-Fi SOLO covers up to 1,500 m² of indoor space per system. Configure with included donor and server antennas, or expand options with outdoor or multiple server antennas. The Cel-Fi commitment is to protect the operator’s network, deliver the best cellular performance, and be the easiest solution to install.
Key Features
- Industry Leading 3G/4G/LTE Voice and Data
- Smart Signal Booster with IntelliBoost® Chipset Smart Technology
- Scalable Solution for up to 1500 m2 per System
- 15 Min Quick Install or Advanced Install with Additional Antennas
- Setup and Management App
- Network safe and Carrier Approved
Solving Cellular Service Problems
Cel-Fi SOLO improves 3G/4G/LTE cellular service by eliminating dead zones and dropped calls. With up to 100dB of gain, it is the most powerful carrier-grade solution available. The Cel-Fi SOLO covers up to 1,500 square meters of indoor space per system. Configure with included donor and server antennas, or expand options with outdoor or multiple server antennas. This business and residential solution is ideal for use in commercial properties, government buildings, small manufacturing, warehouses, offices, retail outlets, rural areas, and large homes.
- Data modeling and reporting
- Mobile applications
- Cel-Fi device and asset management
- Globally trusted carrier-grade security
- Users can access the Cel-Fi WAVE portal through the dashboard interface
Key Features
IntelliBoost® Chipset
The Cel-Fi IntelliBoost baseband processor is the first six-core processor designed specifically to optimize the indoor transmission and reception of 3G/4G/LTE wireless signals. With advanced filtering, equalization and echo-cancellation techniques, Cel-Fi’s architecture delivers unprecedented in-building data rates and pervasive 3G/4G/LTE connectivity.
Network Safe
Self-organizing edge intelligence ensures that Cel-Fi SOLO does not interfere with other indoor wireless products such as Wi‑Fi routers, Small Cells, and Distributed Antenna Systems (DAS). High-speed Automatic Gain Control ensures that Cel‑Fi SOLO is unconditionally networking safe and enables more simultaneous calls and higher data speeds.
Cel-Fi WAVE
The Cel-Fi WAVE App is designed for users to activate, manage and troubleshoot the Cel-Fi SOLO. The app connects to the device via Bluetooth and is available on smartphones and tablets. It is globally trusted and built on carrier-grade security. The device data is synced to the WAVE Portal which allows for additional data modeling and reporting.
Quick Installation
The Cel-Fi SOLO comes with a Cel-Fi Whip Antenna and Cel-Fi Patch Antenna. These can be used to get a system up and running in minutes.
Advanced Installation

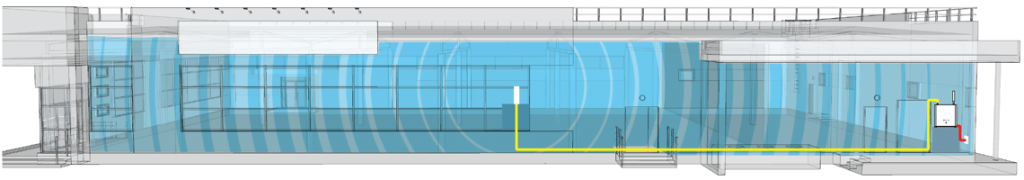

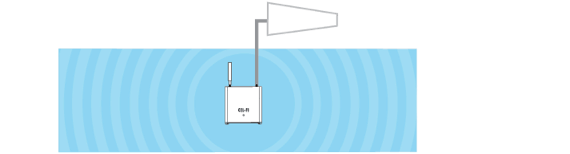

External Antenna

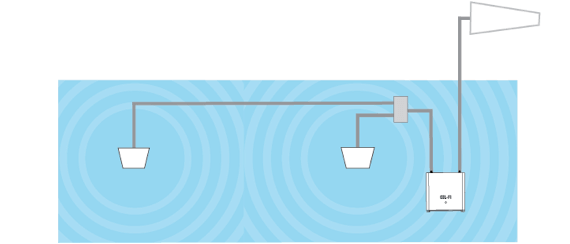

Splitting Server Antenna

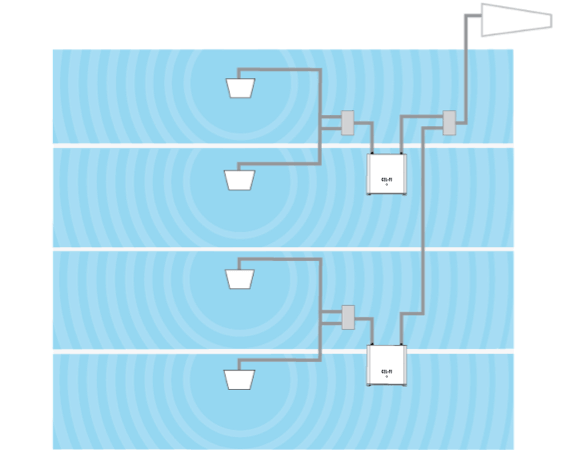

Multi-Unit
Tech Specs
Configurations
Model: H41-Axx
Band Support: 1,3,5,8,28L
*Note: Band 28L supports 758-788MHz UL and 703-733MHz DL
Model: H41-9xx
Band Support: 1,3,7,8,20
Compliance
(check individual product regional compliance)
3GPP TS 25.143 Rel.10
3GPP TS 36.143 Rel.10
ISED (Industry Canada)
Bluetooth BQB
CE
Environmental
Operating temp.: 0° to 40° C
Relative humidity: 0% to 95%, noncondensing
Dimensions
Height: 163mm
Width: 158mm
Length: 80mm
Antenna Ports
Frequency: 698 – 2700 MHz
Impedance: 50 Ohms
Connector: SMA Female
Port Isolation: 110db
