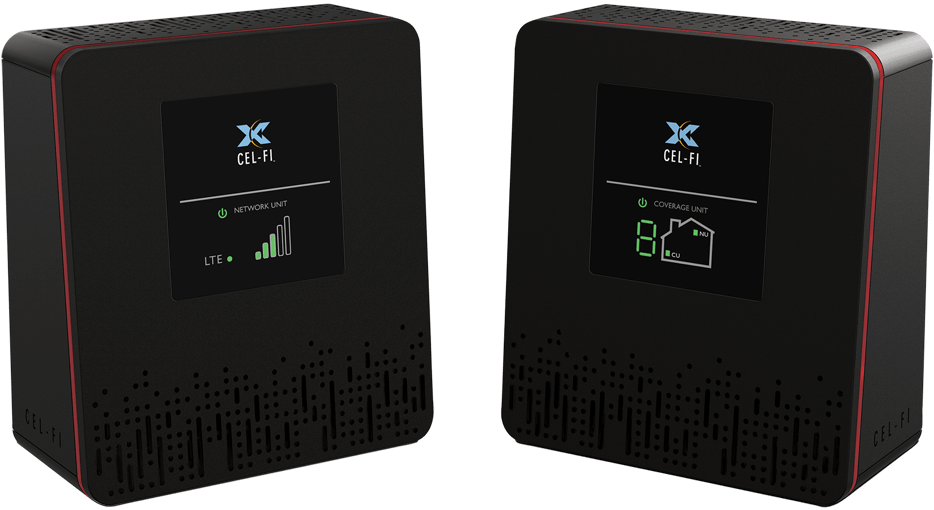

Cel-Fi DUO/DUO+ - Indoor Smart Signal Booster for 3G/4G/LTE networks around the world
Indoor Smart Signal Booster for 3G/4G/LTE networks around the world. The Cel-Fi DUO/DUO+ is designed to dramatically improve HD voice and data coverage in up to two bands for 3G/4G/LTE for consumers while significantly improving the network. Good things do come in small packages: With 3G/4G/LTE support, Cel-Fi DUO/DUO+ is compatible with the highest data services application available. All-new patented echo cancellation algorithms enable Cel-Fi DUO/DUO+ to offer even higher signal levels throughout the coverage area than before.
Key Features
- 5 Min Setup: Plug & Play
- Best Signal by 1000x
- Coverage and Capacity up to 15,000 ft2 (1,500 m2 ) per System (Scalable)
- Wireless Solution (External Antenna Available in Some Regions)
- Remote Monitoring and Management via WAVE Platform
Solving Cellular Service Problems

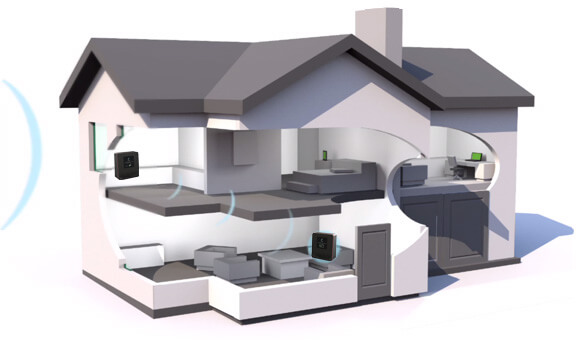

Cel-Fi DUO/DUO+ improve 3G/4G/LTE cellular service by eliminating dead zones and dropped calls. With up to 100dB of gain, it will improve cellular service and reduce your cell phone’s power requirements to extend its battery life. The Cel-Fi DUO/DUO+ covers up to 15,000 square feet (1,500 square meters) of indoor space per system. It’s fully self-contained and self-configuring, requiring no external antennas or wiring required. Simply plug it in to boost indoor cellular coverage.
Maximize Coverage

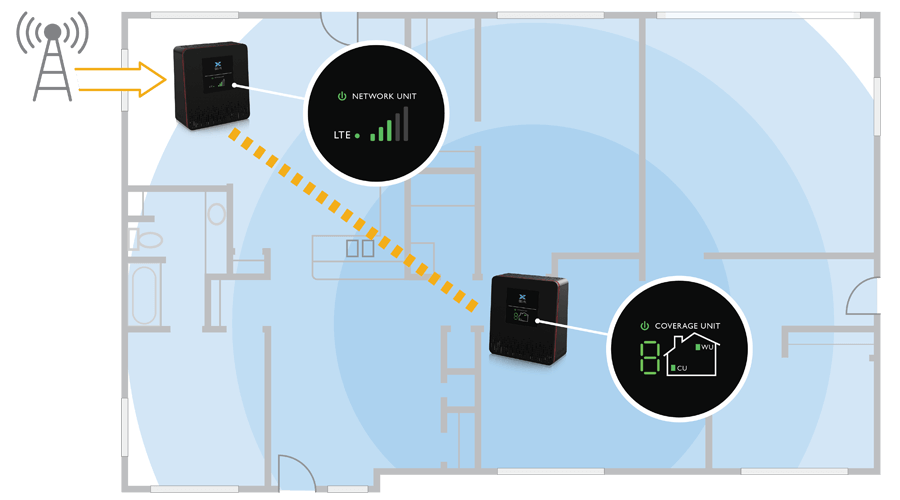

Move Coverage Unit further away from the Network Unit to maximize coverage. The total coverage area equals twice the distance between the Network Unit and the Coverage Unit. The maximum distance is up to 100 dB path loss.
Available Globally
Cel-Fi DUO/DUO+ are available in multiple configurations for use in the Americas, Europe, Middle East, Africa, and Asian Pacific regions.
Get set up in 4 easy steps
| Step 1 | Step 2 | Step 3 | Step 4 |
| Find the best cellular signal | Place the Network Unit | Place the Coverage Unit | Use app to optimize setup |
 |
 |
 |
 |
| Use your phone to find the best cellular signal. Typically you will get the best signal near a window. | Place the Network Unit (NU) in the location where you get the best cellular signal. | Place the Coverage Unit (CU) in the location where you need improved coverage. | Using the Cel-Fi WAVE app, finish setup and activation. |
Sample Layouts

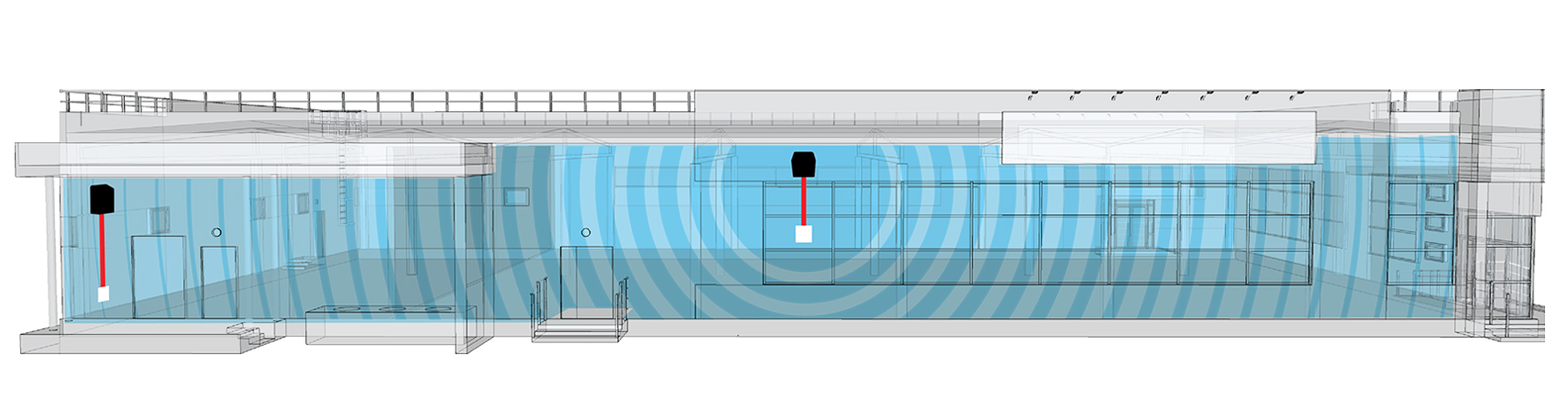

One Level

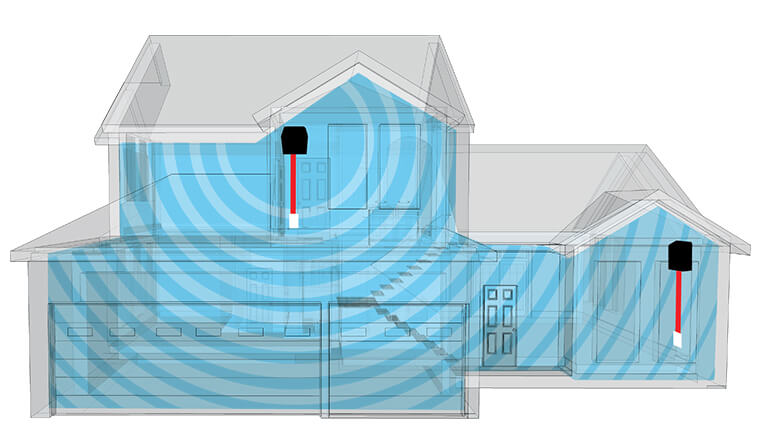

Two Level
Tech Specs
Configurations
All systems are reconfigured to specific carriers
Band 1
Bands 1/3
Bands 2/4
Bands 2/7
Certifications
CE, FCC, RoHS, IC, EAC, R&TTE, EN, SRRC
Power Consumption
Full uplink: 30 Watts
Idle: <20 Watts
Electrical & Environmental Requirements
12 VDC
0 to 40 Celsius
Physical Specification

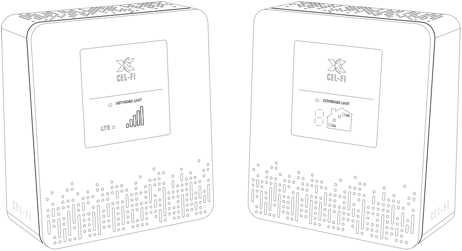

Network Unit:
• 158.5 x 146 x 59mm (560g)
Coverage Unit:
• 158.5 x 146 x 59mm (390g)
Model Numbers
D32-1/0
D32-1/3
D32-2/4
D32-2/7
D32-1/0_EXA
D32-1/3_EXA
D32-2/7_EXA
DUO+
Bands 2/4/13
Bands 2/4/12
Bands 2/4
FCC, IC
Less than 15 Watts per unit
12 VDC
0 to 40 Celsius
Network Unit:
• 158.5 x 146 x 59mm (560g)
Coverage Unit:
• 158.5 x 146 x 59mm (390g)
D32-2/4/12
D32-2/4/13 (LTE only)
Have more questions about Cel-Fi by Nextivity Cellular Coverage products or need to purchase? Call us at 410-583-1701 or email us at questions@pulsesupply.com.
